Lamborghini Diablo (1990-1998) - Steering (Valid for June 1992 Version) 2

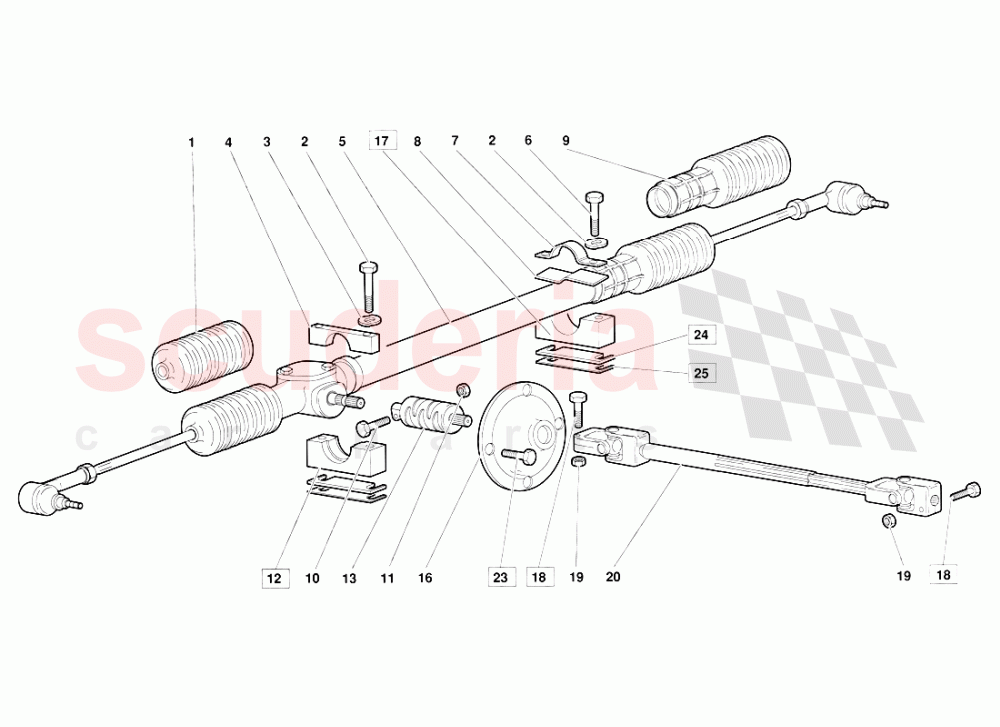

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4329544	BOOT	4329544 BOOT (Valid for June 1992 version) CUFFIA	-	1	Enquire
002	8101045	SCREW	8101045 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
003	WHT000768	WASHER	WHT000768 WASHER	-	4	Enquire
004	4324742	RETAINER	4324742 RETAINER (Valid for June 1992 version) CAVALLOTTO	-	1	Enquire
005	4329542	RACK	4329542 RACK (Valid for June 1992 version) ASSIEME CREMAGLIERA	-	1	Enquire
006	8101018	SCREW	8101018 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
007	4313892	RETAINER	4313892 RETAINER (Valid for June 1992 version) CAVALLOTTO	-	1	Enquire
008	4324743	FLEX PAD	4324743 FLEX PAD (Valid for June 1992 version) SPESSORE IN COMMA	-	1	Enquire
009	4329545	BOOT	4329545 BOOT (Valid for June 1992 version) CUFFIA	-	1	Enquire
010	8100636	SCREW	8100636 SCREW (Valid for June 1992 version) VITE	-	1	Enquire
011	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO	-	1	Enquire
012	4326049	RETAINER	4326049 RETAINER (Valid for June 1992 version) CAVALLOTTO (fino 12639)	-	1	Enquire
012	4333029	RETAINER	4333029 RETAINER (Valid for June 1992 version) CAVALLOTTO (dalla 12640)	-	1	Enquire
013	4330155	COUPLING	4330155 COUPLING (Valid for June 1992 version) GIUNTO COLLASSABILE	-	1	Enquire
014	8400620	WASHER	8400620 WASHER (Valid for June 1992 version) RONDELLA (particolare eliminato)	-	4	Enquire
015	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO (particolare eliminato)	-	4	Enquire
016	410422326	GASKET	410422326 GASKET (Valid for June 1992 version) FLANGIA	-	1	Enquire
017	4326048	RETAINER	4326048 RETAINER (Valid for June 1992 version) CAVALLOTTO (fino 12639)	-	1	Enquire
017	4333028	RETAINER	4333028 RETAINER (Valid for June 1992 version) CAVALLOTTO (dalla12640) (particolare intercambiabile se montato assieme agli spessori 004333030 e 004333035)	-	1	Enquire
018	N01033520	SCREW M8X35	N01033520 SCREW M8X35 (Valid for June 1992 version) VITE (sostituisce 008100807)	-	2	Enquire
019	8200809	NUT	8200809 NUT (Valid for June 1992 version) DADO	-	2	Enquire
020	4329850	JOINTED SHAFT	4329850 JOINTED SHAFT (Valid for June 1992 version) ALBERO SNODATO	-	1	Enquire
023	8700673	SCREW	8700673 SCREW (Valid for June 1992 version) VITE (sostituisce 008400620 e 008200606)	-	4	Enquire
024	4333030	SHIM	4333030 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP 1 mm (dalla 12640) (particolari da accoppiare ai cavallotti 004333029 e 004333028)	-	10	Enquire
025	4333035	SHIM	4333035 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP 0.5 mm (dalla 12640) (particolari da accoppiare ai cavallotti 004333029 e 004333028)	-	4	Enquire
