Front Wheel and Hub Carrier (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Front Wheel and Hub Carrier (Valid for June 1992 Version)

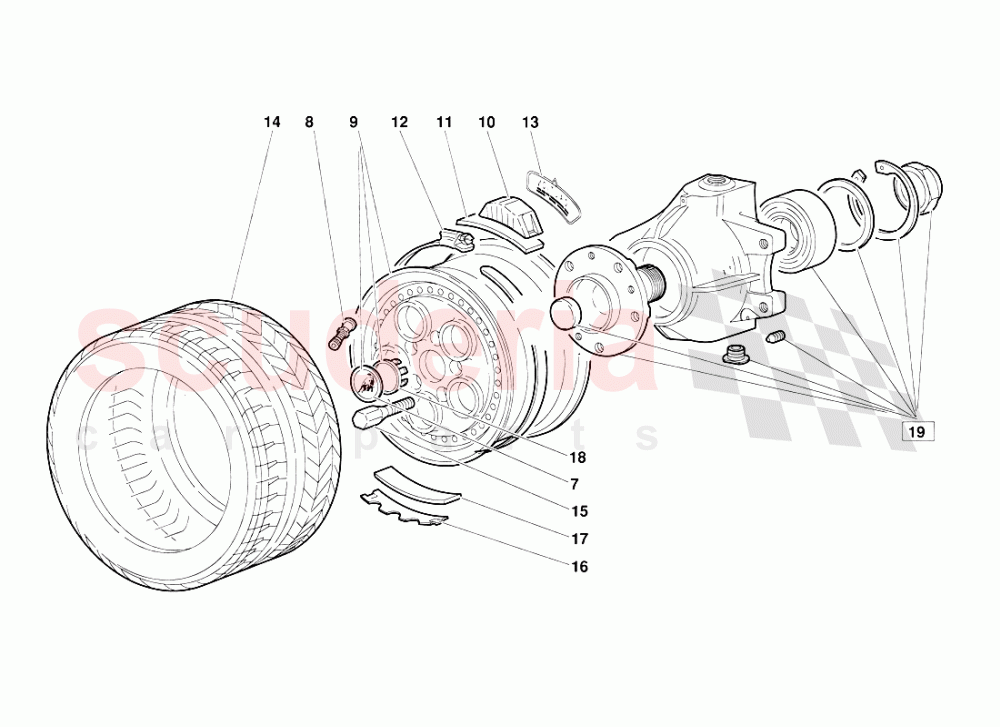

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
007	52006282	ORNAMENT	52006282 ORNAMENT (Valid for June 1992 version) FREGIO CON TORO	$180.93	2
008	5330906	VALVE	5330906 VALVE (Valid for June 1992 version) VALVOLA	$51.18	2
009	5127258	FRONT RIM	5127258 FRONT RIM (Valid for June 1992 version) CERCHIO RUOTA ANTERIORE	$1,809.35	2
010	5131891	LOW TYRE P. SENSOR	5131891 LOW TYRE P. SENSOR (Valid for June 1992 version) TRASMETTITORE PRESSIONE	-	2	Enquire
011	5131894	GASKET	5131894 GASKET (Valid for June 1992 version) GUARNIZIONE	$2.67 MSRP: ~~2.70~~ (1.1% off)	2
012	5131893	STRAP	5131893 STRAP (Valid for June 1992 version) FASCETTA	-	2	Enquire
013	5132551	PLATE	5132551 PLATE (Valid for June 1992 version) TARGHETTA POSIZIONE TRASMETTIT.	$16.25	2
014	5329986	TIRE /TYRE	5329986 TIRE /TYRE (Valid for June 1992 version) PNEUMATICO ANTERIORE PIRELLI PZERO 245/40 ZR 17	-	2	Enquire
014	5332472	PNEUMATIC - (Valid for SWITZERLAND version - October 1991) PNEUMATICO ANTERIORE 245/40 ZR 17 BRIDGESTONE	5332472 PNEUMATIC - (Valid for SWITZERLAND version - October 1991) PNEUMATICO ANTERIORE 245/40 ZR 17 BRIDGESTONE (Valid for June 1992 version) PNEUMATICO ANTERIORE BRIDGESTONE	-	2	Enquire
015	5234416	STUD	5234416 STUD	$160.67	10
016	5131892	BALANCE WEIGHT	5131892 BALANCE WEIGHT (Valid for June 1992 version) CONTRAPPESO PER TRASMETTITORE	$33.01	2
017	5131895	GASKET	5131895 GASKET (Valid for June 1992 version) GUARNIZIONE	$3.43 MSRP: ~~3.50~~ (2% off)	2
018	5229261	COVER	5229261 COVER	-	2	Enquire
019	510132002	HUB HOUSING (COMPLETE)	510132002 HUB HOUSING (COMPLETE) (Valid for June 1992 version) PORTAMOZZO SINISTRO COMPLETO	$15,603.77	1
019	510132001	HUB HOUSING (COMPLETE)	510132001 HUB HOUSING (COMPLETE) (Valid for June 1992 version) PORTAMOZZO DESTRO COMPLETO	$15,596.53	1
