Front Brakes of Lamborghini Lamborghini Diablo (1990-1998)

View All

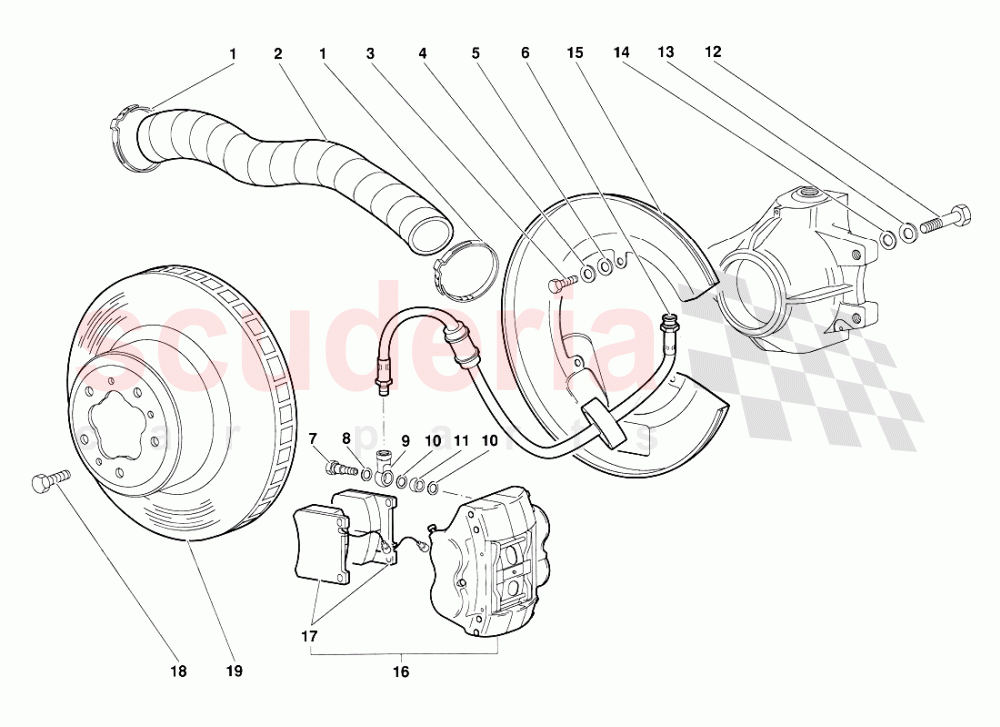

Lamborghini Diablo (1990-1998) - Front Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8836302	CLAMP	8836302 CLAMP FASCETTA	$11.35 MSRP: ~~11.75~~ (3.4% off)	4
002	9453128	FLEX. HOSE	9453128 FLEX. HOSE TUBO FLESSIBILE	$199.76	2
003	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	6
004	8410508	WASHER	8410508 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	6
005	8400509	WASHER	8400509 WASHER RONDELLA	$0.12 MSRP: ~~7.37~~ (98.4% off)	6
006	3129881	FRONT BRAKES PIPE	3129881 FRONT BRAKES PIPE TUBO FRENI ANTERIORl	$117.82	1
007	3129778	SCREW	3129778 SCREW VITE	$59.27	2
008	3113905	WASHER	3113905 WASHER RONDELLA	$2.23	2
009	3113904	CONNECTION	3113904 CONNECTION RACCORDO	$163.57	2
010	3113906	WASHER	3113906 WASHER RONDELLA	$20.73	4
011	3129777	SPACER	3129777 SPACER DISTANZIALE	$59.70	2
012	8101219	SCREW	8101219 SCREW VITE	$21.91	4
013	8411303	WASHER	8411303 WASHER RONDELLA	$2.85	4
014	3230723	SHIM	3230723 SHIM RONDELLA SP. 0,4 MM	$0.40	1
014	3230722	WASHER	3230722 WASHER RONDELLA SP. 0,3 MM	$1.11	1
014	3230721	SHIM	3230721 SHIM RONDELLA SP. 0,2 MM	$0.40	1
014	3230719	SHIM	3230719 SHIM RONDELLA SP. 0,05 MM	$0.58	1
014	3230720	SHIM	3230720 SHIM RONDELLA SP. 0,1 MM	$14.65	1
014	3230727	SHIM	3230727 SHIM RONDELLA SP. 1 MM	$3.24	1
014	3230724	SHIM	3230724 SHIM RONDELLA SP. 0,5 MM	$0.40	1
014	3230726	SHIM	3230726 SHIM RONDELLA SP. 0,8 MM	$0.40	1
014	3230725	SHIM	3230725 SHIM RONDELLA SP. 0,6 MM	$0.40	1
015	3131963	LEFT MUDGUARDS	3131963 LEFT MUDGUARDS PARASPRUZZI SINISTRO	$633.98	1
015	3131964	RIGHT MUDGUARDS	3131964 RIGHT MUDGUARDS PARASPRUZZI DESTRO	$933.62	1
016	3129435	BRAKE CALIPER	3129435 BRAKE CALIPER PINZA FRENI SINISTRA CON PASTIGLIE	$2,098.84	1
016	3129436	BRAKE CALIPER CPL	3129436 BRAKE CALIPER CPL PINZA FRENI DESTRA CON PASTIGLIE	$2,098.84	1
017	3135292	FRONT BRAKE PADS	3135292 FRONT BRAKE PADS PRICE EACH PAD	$525.45	4
018	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$1.22 MSRP: ~~7.23~~ (83.1% off)	6
019	3126969	BRAKE DISC	3126969 BRAKE DISC DISCO FRENO ANTERIORE	$1,445.40	2
