Front Wheel And Hub Carrier

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Front Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

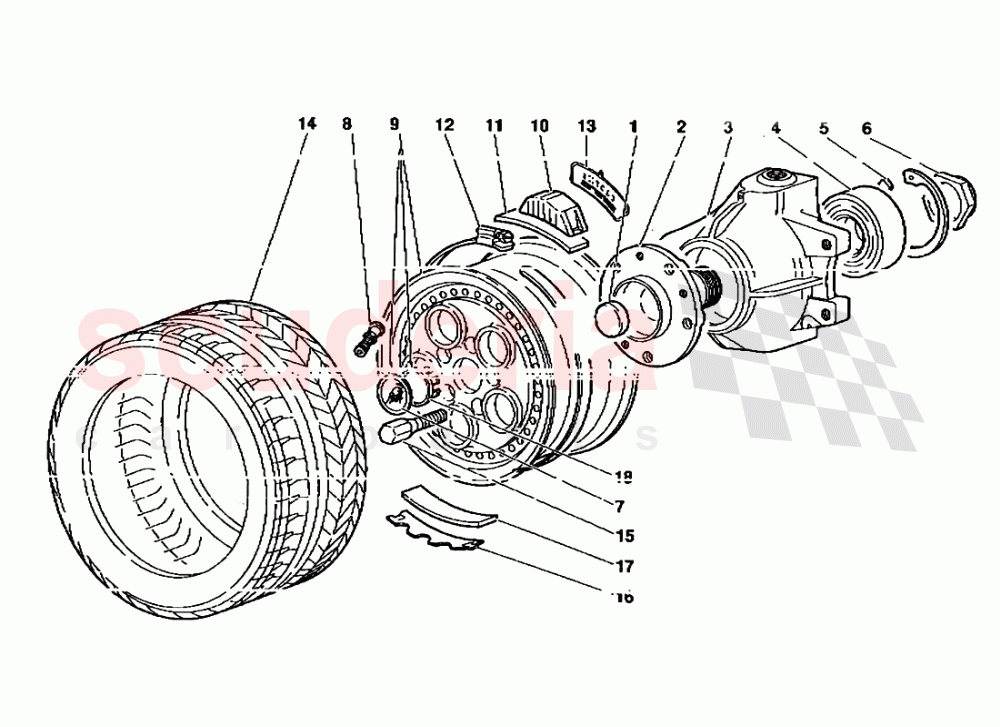

Front Wheel and Hub Carrier of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8933601
PLUG
TAPPO 		- 2 Enquire
002 5127087
Hub
MOZZO 		- 1 Enquire
003 5131323
HUB HOUSING
FUSIONE PORTAMOZZO SINISTRO 		- 1 Enquire
003 5131327
HUB HOUSING
FUSIONE PORTAMOZZO SINISTRO 		- 1 Enquire
004 8515002
BEARING
CUSCINETTO 		- 2 Enquire
005 8579007
RETAINER RING
ANELLO RITEGNO 		- 2 Enquire
006 8205001
Nut
DADO 		- 2 Enquire
007 52006282
ORNAMENT
FREGIO CON TORO 		- 2 Enquire
008 5330906
VALVE
Valvola 		- 2 Enquire
009 5127258
FRONT RIM
CERCHIO RUOTA 		- 2 Enquire
010 5131891
LOW TYRE P. SENSOR
TRASMETTITORE PRESSIONE 		- 2 Enquire
011 5131894
GASKET
GUARNIZIONE 		- 2 Enquire
012 5131893
STRAP
FASCETTA 		- 2 Enquire
013 5132551
PLATE
TARGHETTA POSIZIONE TRASMETT 		- 2 Enquire
014 5332472
PNEUMATIC - (Valid for SWITZERLAND version - October 1991) PNEUMATICO ANTERIORE 245/40 ZR 17 BRIDGESTONE
PNEUMATICO ANT BRIDGESTONE 		- 2 Enquire
014 5329986
TIRE /TYRE
PN. ANT PIRELLI PZERO 245/40 ZR17 		- 2 Enquire
015 5234416
STUD 		- 20 Enquire
016 5131892
BALANCE WEIGHT
CONTRAPPESO PER TRASMETTITORE 		- 2 Enquire
017 5131895
GASKET
GUARNIZIONE 		- 2 Enquire
018 5229261
COVER 		- 2 Enquire
