Hydraulics Control Unit

Lamborghini Aventador LP770 SVJ Coupe

Find Your Part

Lamborghini Aventador LP770 SVJ Coupe - HYDRAULICS CONTROL UNIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CE301247A SHIFT ROD POWER UNIT Enquire To Order
Photo Part No Description Price (each) Stock
470398189 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
CE311556 SHAFT OIL SEAL Enquire To Order
Photo Part No Description Price (each) Stock
CYLINDER FITTING SCREW WITH INNER MULTIPOINT HEAD Enquire To Order
Photo Part No Description Price (each) Stock
CUP WASHER Enquire To Order
Photo Part No Description Price (each) Stock
470398135B OIL DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
900000140 CENTR. HYDRAULIC OIL Enquire To Order
Photo Part No Description Price (each) Stock
470398048 GASKET SET Enquire To Order
Photo Part No Description Price (each) Stock
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Enquire To Order
Photo Part No Description Price (each) Stock
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Enquire To Order
Photo Part No Description Price (each) Stock
CENTRING PIN Enquire To Order
View All

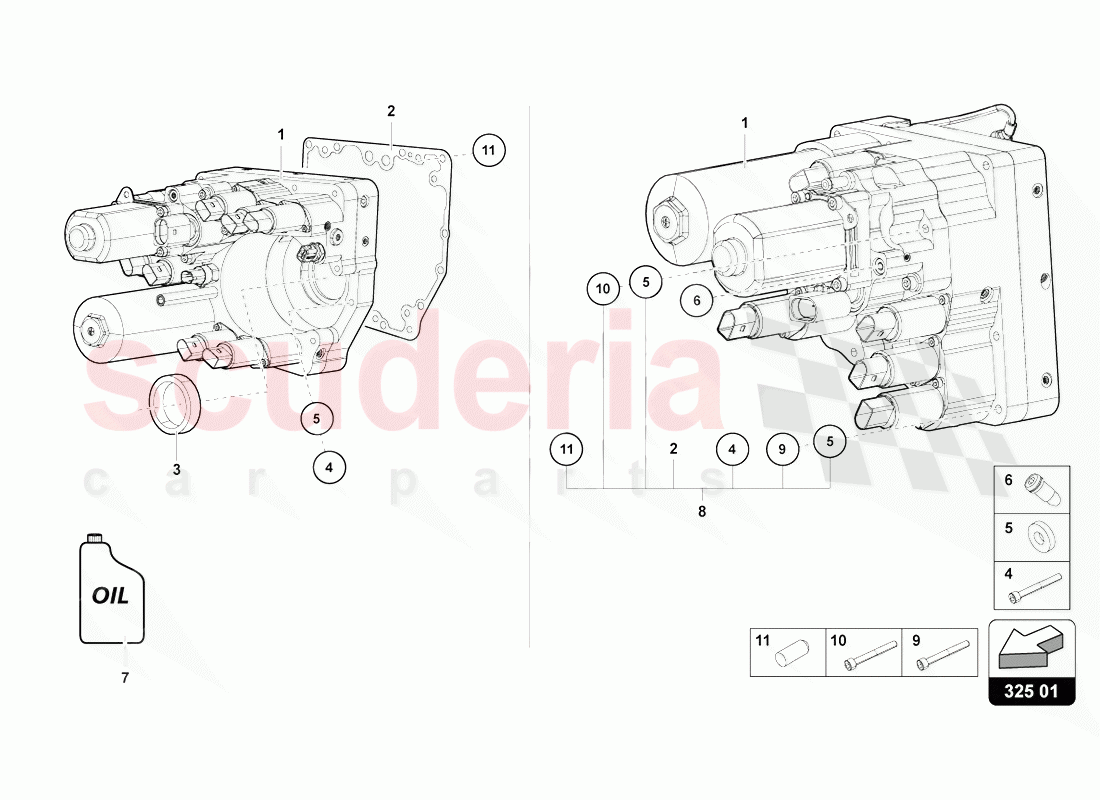

HYDRAULICS CONTROL UNIT of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CE301247A
SHIFT ROD POWER UNIT 		- 1 Enquire
2 470398189
GASKET 		- 1 Enquire
3 CE311556
SHAFT OIL SEAL
45X62X10 		- 1 Enquire
4 CYLINDER FITTING SCREW WITH INNER MULTIPOINT HEAD
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF.: 8- 8 		- - Enquire
5 CUP WASHER
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF.: 8- 8 		- - Enquire
6 470398135B
OIL DRAIN PLUG 		- - Enquire
7 900000140
CENTR. HYDRAULIC OIL 		- 1 Enquire
8 470398048
GASKET SET 		- 1 Enquire
9 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF.: 8-'M6X75' 8 		- - Enquire
10 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF.: 8-'M6X140' 8 		- - Enquire
11 CENTRING PIN
SEE ILLUSTRATION :- 301-040,30 		- - Enquire
