Find Your Part

OUTER COMPONENTS FOR GEARBOX of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - OUTER COMPONENTS FOR GEARBOX

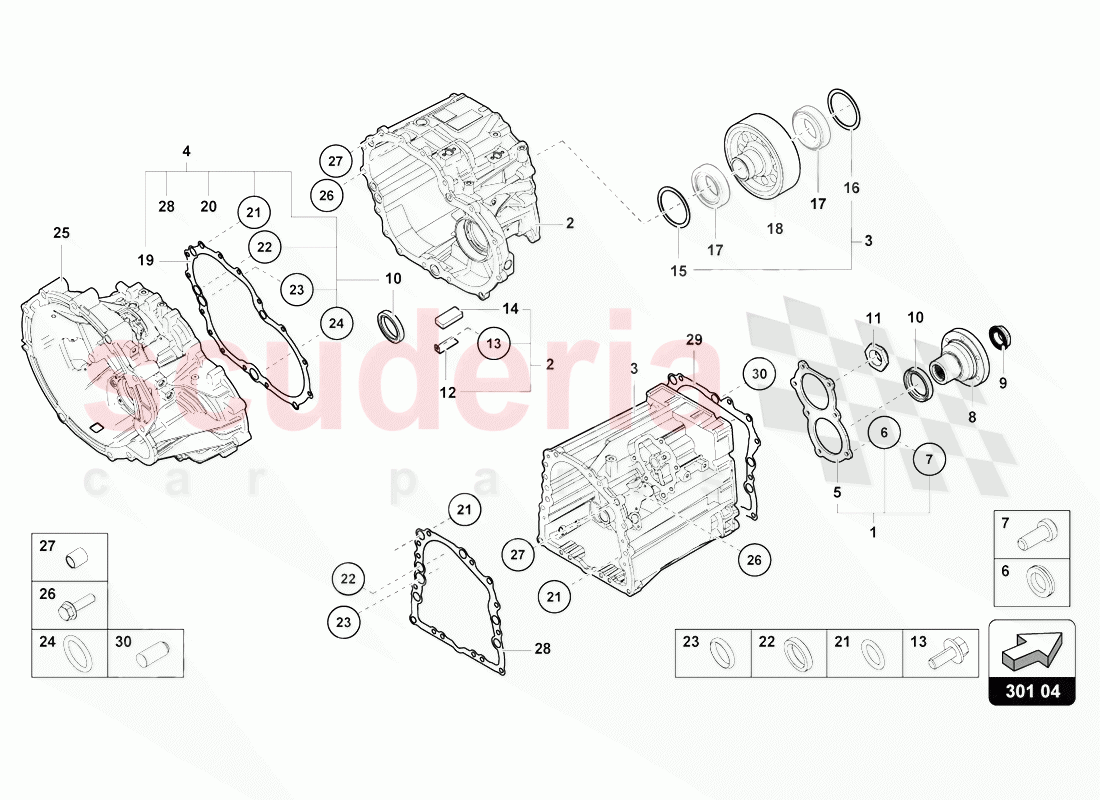

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470398008D	1 SET: SPACER PLATES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470398008E	MAGNETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470398008F	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470398008H	1 SET: SEALING BEARINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BEARING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311807	FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE301618A	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311556	SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311667	BEARING RING FOR DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SQUARE WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MAGNETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		GEARBOX MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		GEARBOX MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311590A	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311099A	CHANGE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE323209C	BELL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE398047F	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86301153B	DOWEL SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		GASKET FOR COVER	Enquire	To Order
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470311684	CENTRING PIN	Enquire	To Order
		SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470398008D	1 SET: SPACER PLATES	470398008D 1 SET: SPACER PLATES KIT	-	1	Enquire
2	470398008E	MAGNETS	470398008E MAGNETS KIT	-	-	Enquire
3	470398008F	SHIM	470398008F SHIM DROP KIT	-	-	Enquire
4	470398008H	1 SET: SEALING BEARINGS	470398008H 1 SET: SEALING BEARINGS	-	1	Enquire
5	-	BEARING PLATE	BEARING PLATE 301-040,01	-	-	Enquire
6	-	WASHER	WASHER 301-040,01	-	-	Enquire
7	-	SCREW	SCREW M8X20 301-040,01	-	-	Enquire
8	CE311807	FLANGE	CE311807 FLANGE	-	1	Enquire
9	CE301618A	HEXAGON NUT	CE301618A HEXAGON NUT	-	1	Enquire
10	CE311556	SHAFT OIL SEAL	CE311556 SHAFT OIL SEAL 45X62X10	-	2	Enquire
11	CE311667	BEARING RING FOR DIFFERENTIAL	CE311667 BEARING RING FOR DIFFERENTIAL	-	1	Enquire
12	-	SQUARE WASHER	SQUARE WASHER 301-040,02	-	-	Enquire
13	-	SCREW	SCREW 301-040,02	-	-	Enquire
14	-	MAGNETS	MAGNETS 301-040,02	-	-	Enquire
15	-	GEARBOX MOUNTING	GEARBOX MOUNTING 301-040,03	-	-	Enquire
16	-	GEARBOX MOUNTING	GEARBOX MOUNTING 301-040,03	-	-	Enquire
17	CE311590A	MOUNTING	CE311590A MOUNTING	-	-	Enquire
18	CE311099A	CHANGE GEAR	CE311099A CHANGE GEAR	-	1	Enquire
19	-	SEAL	SEAL 301-040,04	-	-	Enquire
20	-	SEAL	SEAL 301-040,04	-	-	Enquire
21	-	O-RING	O-RING 2,62X9,92 301-040,04	-	-	Enquire
22	-	O-RING	O-RING 2,62X11,91 301-040,04	-	-	Enquire
23	-	O-RING	O-RING 2,62X13,95 301-040,04	-	-	Enquire
24	-	O-RING	O-RING 2,62X15,88 301-040,04	-	-	Enquire
25	CE323209C	BELL HOUSING	CE323209C BELL HOUSING	-	1	Enquire
26	CE398047F	SCREW	CE398047F SCREW	-	29	Enquire
27	86301153B	DOWEL SLEEVE	86301153B DOWEL SLEEVE 11X12	-	4	Enquire
28	-	SEAL	SEAL 301-040,04	-	-	Enquire
29	-	GASKET FOR COVER	GASKET FOR COVER SEE ILLUSTRATION : 325.01.00 REF.2	-	-	Enquire
29	-	SEAL	SEAL SEE ILLUSTRATION :- 325-010,2	-	-	Enquire
30	470311684	CENTRING PIN	470311684 CENTRING PIN	-	2	Enquire
30	-	SEAL	SEAL SEE ILLUSTRATION : 325.01.00 REF. 8	-	-	Enquire
