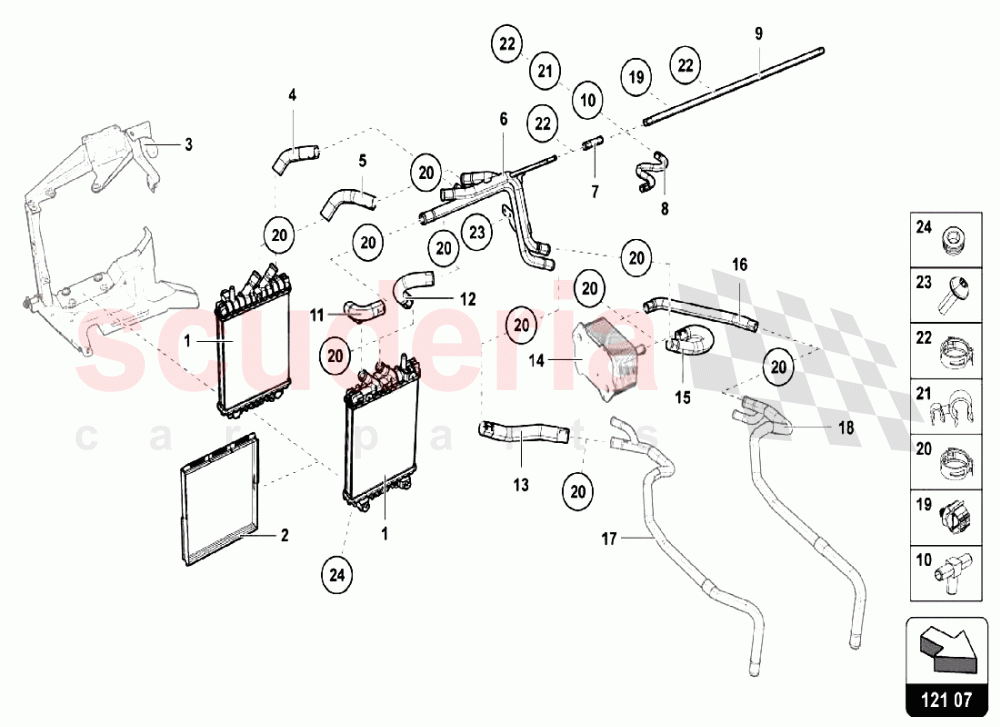

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4H0121212	ADDITIONAL COOLER FOR COOLANT	4H0121212 ADDITIONAL COOLER FOR COOLANT	-	2	Enquire
002	4H0121287	AIR GUIDE	4H0121287 AIR GUIDE	-	1	Enquire
004	470121030	Coolant Hose	470121030 Coolant Hose	-	1	Enquire
005	470121036	Coolant Hose	470121036 Coolant Hose	-	1	Enquire
006	470121034	COOLANT PIPE	470121034 COOLANT PIPE	-	1	Enquire
007	470121473	VENT HOSE	470121473 VENT HOSE	-	1	Enquire
008	470121439	Vent Hose	470121439 Vent Hose	-	1	Enquire
009	470121446	Vent Hose	470121446 Vent Hose	-	1	Enquire
010	410133381	CONNECTOR	410133381 CONNECTOR	-	-	Enquire
011	470121049	Coolant Hose	470121049 Coolant Hose	-	1	Enquire
012	470121054	Coolant Hose	470121054 Coolant Hose	-	1	Enquire
013	470121177	Coolant Hose	470121177 Coolant Hose	-	1	Enquire
015	470121178	Coolant Hose	470121178 Coolant Hose	-	1	Enquire
016	470121491	Return Pipe	470121491 Return Pipe	-	1	Enquire
019	3B0971878B	CLAMP	3B0971878B CLAMP	-	8	Enquire
020	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP	-	8	Enquire
021	N10574901	DOUBLE CLIP	N10574901 DOUBLE CLIP	-	8	Enquire
022	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP	-	8	Enquire
023	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
024	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	4	Enquire
