WATER COOLING SYSTEM 1 of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

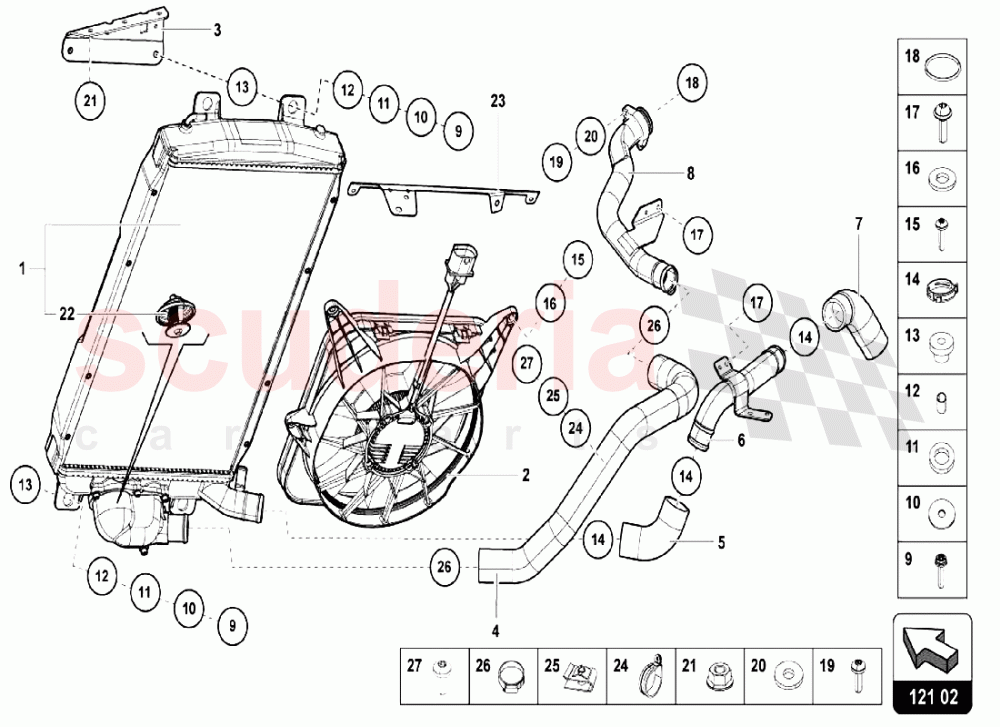

Lamborghini Aventador LP750 SV Roadster - WATER COOLING SYSTEM 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	R8340120	REPAIR SET	R8340120 REPAIR SET	-	1	Enquire
001	470121253G	COOLER FOR COOLANT	470121253G COOLER FOR COOLANT	-	1	Enquire
002	470959455E	RADIATOR FAN WITH CONTROL UNIT	470959455E RADIATOR FAN WITH CONTROL UNIT	-	1	Enquire
003	470121703B	LH BRACKET	470121703B LH BRACKET	-	1	Enquire
004	470121057D	Pipe	470121057D Pipe	-	1	Enquire
004	470121057F	COOLANT HOSE	470121057F COOLANT HOSE	-	1	Enquire
005	470121061A	COOLANT HOSE	470121061A COOLANT HOSE	-	1	Enquire
006	470121397B	VENT HOSE	470121397B VENT HOSE	-	1	Enquire
007	470121107A	COOLANT HOSE	470121107A COOLANT HOSE	-	1	Enquire
008	470121051B	COOLANT HOSE DA MOT.A FLEX.	470121051B COOLANT HOSE DA MOT.A FLEX.	-	1	Enquire
009	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	4	Enquire
010	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
011	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	4	Enquire
012	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	4	Enquire
013	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	4	Enquire
014	N90926501	SPRING BAND CLAMP	N90926501 SPRING BAND CLAMP	-	5	Enquire
014	470971850D	SPRING BAND CLAMP	470971850D SPRING BAND CLAMP	-	5	Enquire
015	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	N91071702 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
016	N0115478	WASHER	N0115478 WASHER	-	4	Enquire
017	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
018	N90760301	O-RING	N90760301 O-RING	-	1	Enquire
019	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	2	Enquire
020	WHT003407	WASHER	WHT003407 WASHER	-	2	Enquire
021	N10609201	HEXAGON COLLAR NUT	N10609201 HEXAGON COLLAR NUT	-	3	Enquire
022	470121113A	COOLANT REGULATOR	470121113A COOLANT REGULATOR	-	1	Enquire
023	470821471	SUPPORT FOR COOLANT RADIATOR	470821471 SUPPORT FOR COOLANT RADIATOR	-	1	Enquire
024	N90942301	CLAMP	N90942301 CLAMP	-	1	Enquire
025	N90688703	SPEED NUT	N90688703 SPEED NUT	-	1	Enquire
026	470121041	SEAL RING	470121041 SEAL RING	-	1	Enquire
027	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
