CRANK GEARS of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

Lamborghini Aventador LP750 SV Roadster - CRANK GEARS

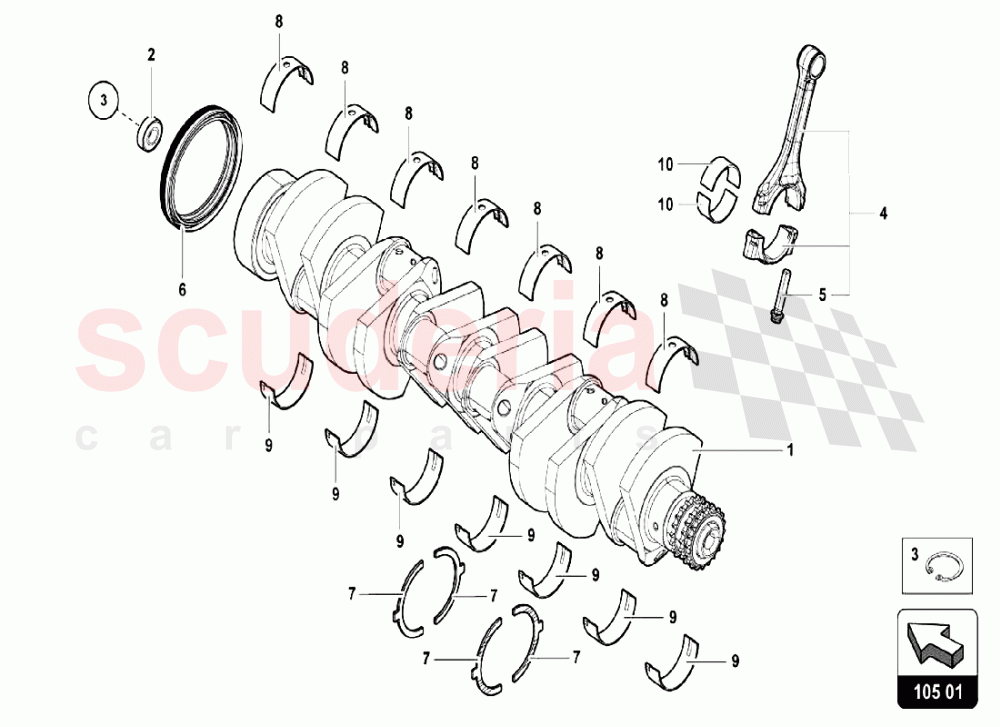

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M105019J	CRANKSHAFT	7M105019J CRANKSHAFT	-	1	Enquire
002	7L105276	BALL BEARING	7L105276 BALL BEARING	-	1	Enquire
003	N0123031	SECURING RING	N0123031 SECURING RING	-	1	Enquire
004	7M105401B	COMPLETE CONNECTING ROD (UNTIL VIN FLA04372 - MAPE CONNECTING ROD)	7M105401B COMPLETE CONNECTING ROD (UNTIL VIN FLA04372 - MAPE CONNECTING ROD)	-	12	Enquire
004	7M105401D	CONROD	7M105401D CONROD	-	12	Enquire
005	WHT004864	SCREW MJ9X1X42 (MAPE CONNECTING ROD - UNTIL THE VIN FLA04372)	WHT004864 SCREW MJ9X1X42 (MAPE CONNECTING ROD - UNTIL THE VIN FLA04372)	-	24	Enquire
005	7M105933A	BOLT - CONNECTING ROD	7M105933A BOLT - CONNECTING ROD	-	24	Enquire
006	7M103089F	SEAL RING	7M103089F SEAL RING	-	1	Enquire
007	7M105707AC	AXIAL HALF BEARING	7M105707AC AXIAL HALF BEARING	-	4	Enquire
008	7M105707AE	CRANKSHAFT BEARING SHELL	7M105707AE CRANKSHAFT BEARING SHELL	-	7	Enquire
008	7M105707AB	CRANKSHAFT BEARING SHELL	7M105707AB CRANKSHAFT BEARING SHELL	-	7	Enquire
008	7M105707T	CRANKSHAFT BEARING SHELL	7M105707T CRANKSHAFT BEARING SHELL	-	7	Enquire
009	7M105707S	CRANKSHAFT BEARING SHELL	7M105707S CRANKSHAFT BEARING SHELL	-	7	Enquire
009	7M105707AA	CRANKSHAFT BEARING SHELL	7M105707AA CRANKSHAFT BEARING SHELL	-	7	Enquire
009	7M105707AD	CRANKSHAFT BEARING SHELL	7M105707AD CRANKSHAFT BEARING SHELL	-	7	Enquire
010	7M105701G	CONNECTING ROD BEARING SHELL	7M105701G CONNECTING ROD BEARING SHELL	-	24	Enquire
010	7M105701F	CONNECTING ROD BEARING SHELL	7M105701F CONNECTING ROD BEARING SHELL	-	24	Enquire
010	7M105701H	CONNECTING ROD BEARING SHELL	7M105701H CONNECTING ROD BEARING SHELL	-	24	Enquire
