OIL TANK of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

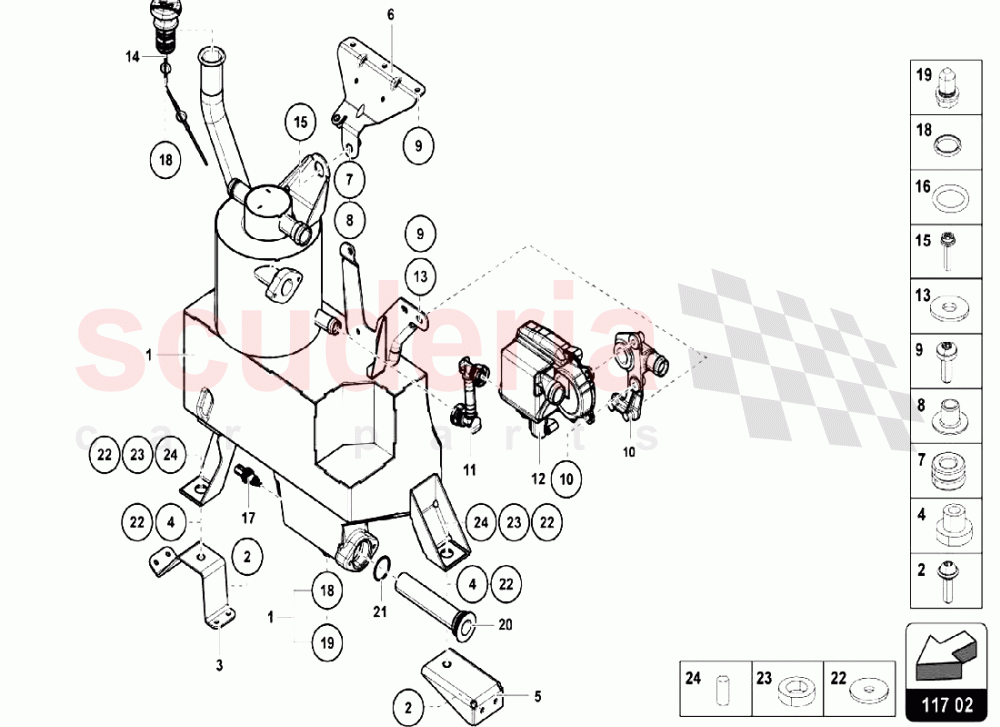

Lamborghini Aventador LP750 SV Roadster - OIL TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470115373G	OIL CONTAINER	470115373G OIL CONTAINER	-	1	Enquire
002	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
003	470115641B	BRACKET FOR FLUID RESERVOIR	470115641B BRACKET FOR FLUID RESERVOIR	-	1	Enquire
004	400121268	RUBBER BUSH	400121268 RUBBER BUSH	-	2	Enquire
005	470115575B	SUPPORT	470115575B SUPPORT	-	1	Enquire
006	470115261C	SUPPORT	470115261C SUPPORT	-	1	Enquire
007	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	1	Enquire
008	4E0903127	MOUNTING	4E0903127 MOUNTING	-	1	Enquire
009	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT	-	7	Enquire
010	470103811	BRACKET	470103811 BRACKET	-	1	Enquire
011	470115659A	OIL HOSE	470115659A OIL HOSE	-	1	Enquire
012	7C103464F	OIL SEPARATOR	7C103464F OIL SEPARATOR	-	1	Enquire
013	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
014	470115319A	OIL DIPSTICK	470115319A OIL DIPSTICK	-	1	Enquire
015	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	1	Enquire
016	WHT002641	SEAL RING	WHT002641 SEAL RING	-	1	Enquire
017	59919523F	TEMPERATURE SENSOR	59919523F TEMPERATURE SENSOR	-	1	Enquire
018	N0138157	SEAL RING	N0138157 SEAL RING	-	1	Enquire
020	470115157	CONNECTOR UNION	470115157 CONNECTOR UNION	-	1	Enquire
021	WHT004895	SEAL RING	WHT004895 SEAL RING	-	1	Enquire
022	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
023	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	2	Enquire
024	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	-	2	Enquire
