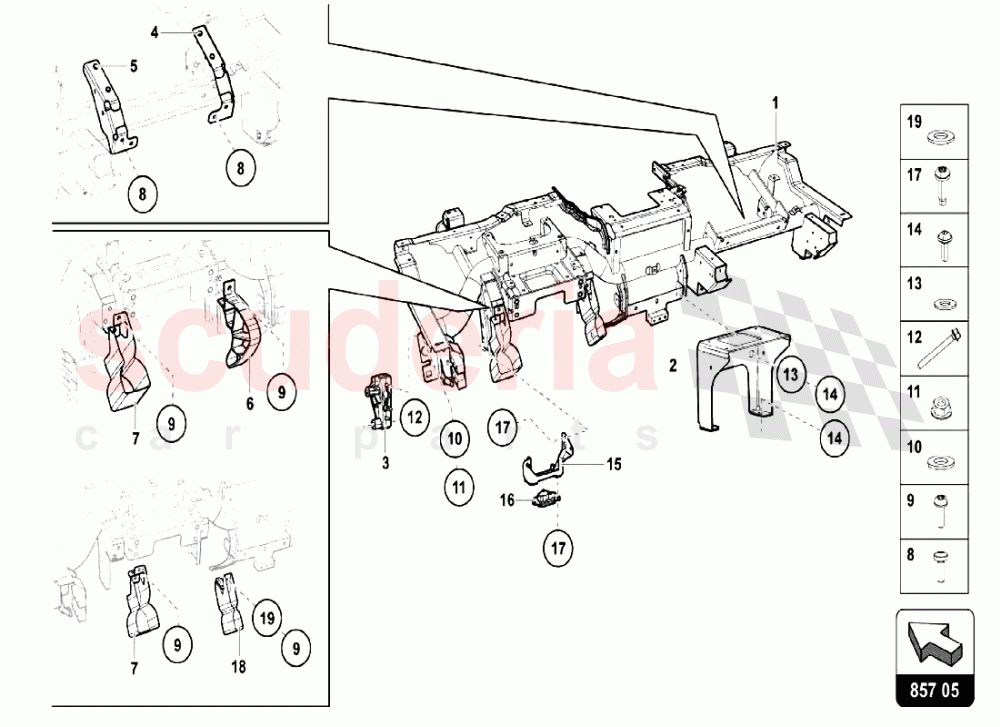

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	472857025B	RHD CROSS MEMBER	472857025B RHD CROSS MEMBER	-	1	Enquire
001	471857025A	LHD CROSS MEMBER	471857025A LHD CROSS MEMBER	-	1	Enquire
002	470863345	BRACKET	470863345 BRACKET	-	1	Enquire
003	470857021	DASHBOARD CARRIER	470857021 DASHBOARD CARRIER	-	1	Enquire
003	470857022	DASHBOARD CARRIER	470857022 DASHBOARD CARRIER	-	1	Enquire
004	470880224A	BRACKET	470880224A BRACKET	-	1	Enquire
005	470880223A	BRACKET	470880223A BRACKET	-	1	Enquire
006	423880670	DEFORMATION ELEMENT	423880670 DEFORMATION ELEMENT	-	1	Enquire
007	470880671	DEFORMATION ELEMENT	470880671 DEFORMATION ELEMENT	-	1	Enquire
008	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	N10451405 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
009	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	5	Enquire
010	N90477302	WASHER	N90477302 WASHER	-	4	Enquire
011	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	4	Enquire
012	N91073401	HEX COLLARED BOLT	N91073401 HEX COLLARED BOLT	-	6	Enquire
013	N01166623	WASHER	N01166623 WASHER	-	2	Enquire
014	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
015	471971858	BRACKET - OBD	471971858 BRACKET - OBD	-	1	Enquire
016	470858357	TRIM	470858357 TRIM	-	1	Enquire
017	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW	-	6	Enquire
018	470880672	DEFORMATION ELEMENT	470880672 DEFORMATION ELEMENT	-	1	Enquire
019	N0115478	WASHER	N0115478 WASHER	-	2	Enquire
