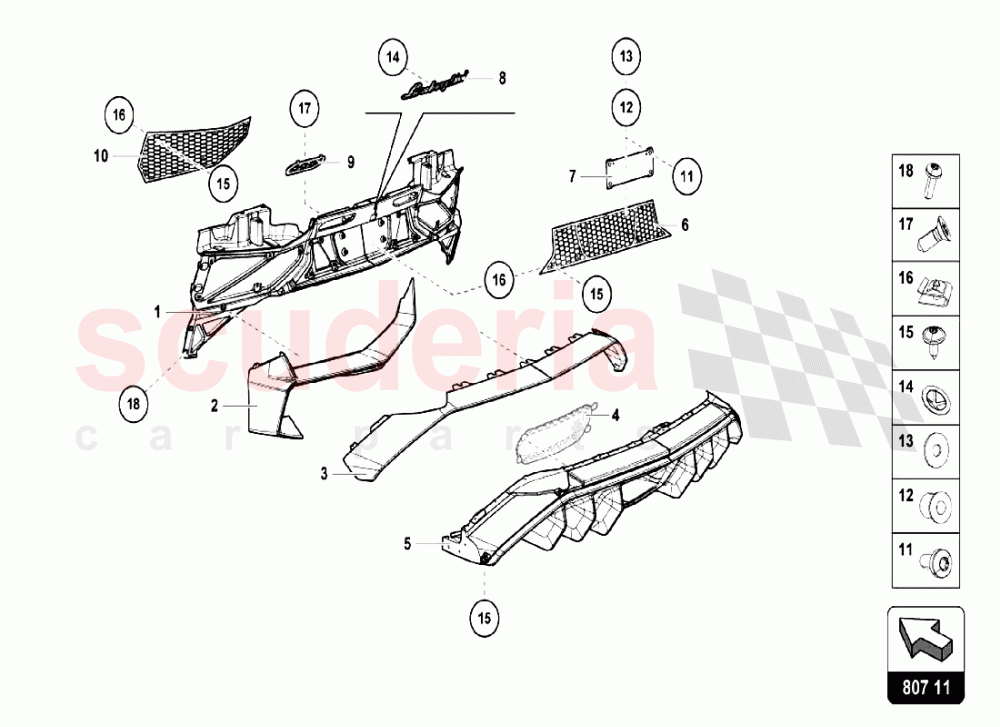

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470807511T	STRUT	470807511T STRUT (without camera)	-	1	Enquire
001	470807511Q	STRUT (RVC)	470807511Q STRUT (RVC) (with camera)	-	1	Enquire
002	470807727	LH FRAME (EXTERNAL CARBON)	470807727 LH FRAME (EXTERNAL CARBON)	-	1	Enquire
002	470807728	RH FRAME (EXTERNAL CARBON)	470807728 RH FRAME (EXTERNAL CARBON)	-	1	Enquire
003	470807539F	FRAME (SUPPLY VIN)	470807539F FRAME (SUPPLY VIN)	-	1	Enquire
005	470807568	REAR END PLATE	470807568 REAR END PLATE	-	1	Enquire
006	470807684B	CENTER GRID	470807684B CENTER GRID	-	1	Enquire
007	470827120A	LICENSE PLATE HOLDER	470827120A LICENSE PLATE HOLDER	-	1	Enquire
008	470853742	LETTERING	470853742 LETTERING	-	1	Enquire
009	470807834D	RIGHT GRID	470807834D RIGHT GRID	-	1	Enquire
009	470807833D	LEFT GRID	470807833D LEFT GRID	-	1	Enquire
010	470807834C	RIGHT GRID	470807834C RIGHT GRID	-	1	Enquire
010	470807833C	LEFT GRID	470807833C LEFT GRID	-	1	Enquire
011	N10451404	HEXAGON SOCKET FLAT HEAD BOLT	N10451404 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
012	400807995	GROMMET	400807995 GROMMET	-	4	Enquire
013	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
014	4T0853139	CLIP	4T0853139 CLIP	-	2	Enquire
015	N90698605	HEXAGON SOCKET HEAD PANEL BOLT	N90698605 HEXAGON SOCKET HEAD PANEL BOLT	-	16	Enquire
016	N0154487	SPEED NUT	N0154487 SPEED NUT	-	16	Enquire
017	N90944605	SCREW (M5x12)	N90944605 SCREW (M5x12)	-	2	Enquire
