Lamborghini Aventador LP750 SV Coupe - REAR HOOD 2

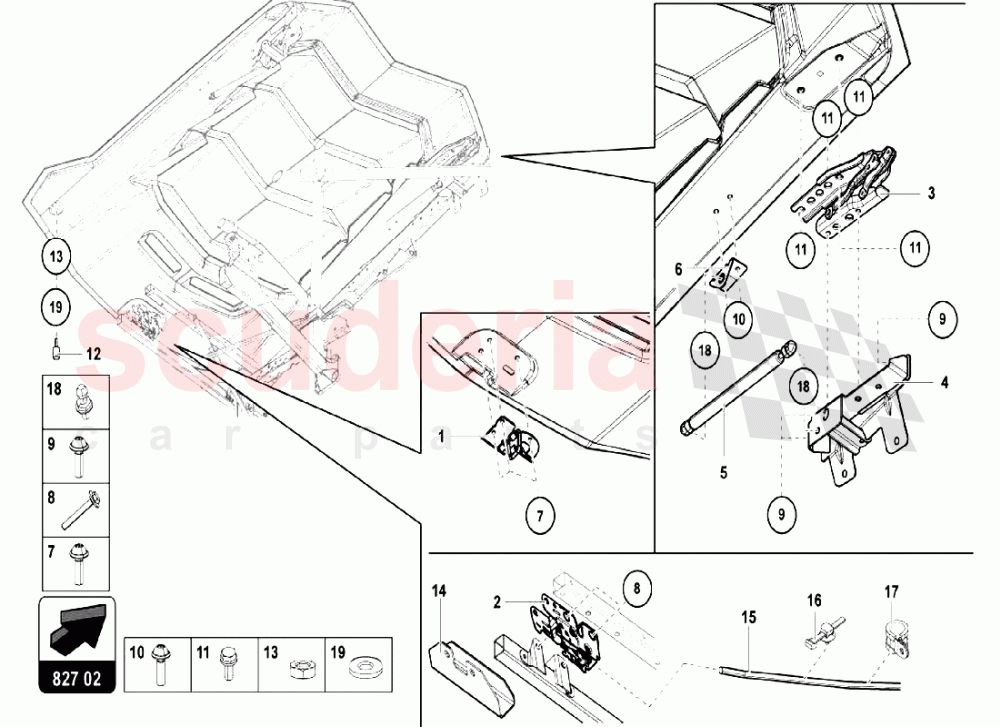

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400827518B	STRIKER	400827518B STRIKER	-	1	Enquire
002	476823509	BONNET LOCK-LOWER PART	476823509 BONNET LOCK-LOWER PART	-	1	Enquire
003	470827302A	HINGE	470827302A HINGE	-	1	Enquire
003	470827301A	HINGE	470827301A HINGE	-	1	Enquire
004	470827394C	BRACKET	470827394C BRACKET	-	1	Enquire
004	470827393D	BRACKET	470827393D BRACKET	-	1	Enquire
005	418827401A	GAS FILLED STRUT	418827401A GAS FILLED STRUT	-	1	Enquire
006	470827523A	BRACKET	470827523A BRACKET	-	1	Enquire
006	470827524A	BRACKET	470827524A BRACKET	-	1	Enquire
007	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	3	Enquire
008	N10553804	HEXAGON HEAD BOLT (COMBI)	N10553804 HEXAGON HEAD BOLT (COMBI)	-	2	Enquire
009	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
010	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
011	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	6	Enquire
012	400807333	SUPPORT	400807333 SUPPORT	-	2	Enquire
013	N01111611	HEXAGON NUT	N01111611 HEXAGON NUT	-	2	Enquire
014	470825099	HEAT SHIELD	470825099 HEAT SHIELD	-	1	Enquire
015	470827222	HOSE REINFORCEMENT	470827222 HOSE REINFORCEMENT	-	1	Enquire
016	3W0971838	CABLE TIES	3W0971838 CABLE TIES	-	1	Enquire
017	5M0971838A	CABLE TIE WITH TERMINAL SOCKET	5M0971838A CABLE TIE WITH TERMINAL SOCKET	-	1	Enquire
018	6X0827439A	JOURNAL	6X0827439A JOURNAL	-	4	Enquire
019	N01152426	WASHER	N01152426 WASHER	-	2	Enquire
