FRONT FRAME ELEMENTS 2 of Lamborghini Lamborghini Aventador LP750 SV Coupe

View All

Lamborghini Aventador LP750 SV Coupe - FRONT FRAME ELEMENTS 2

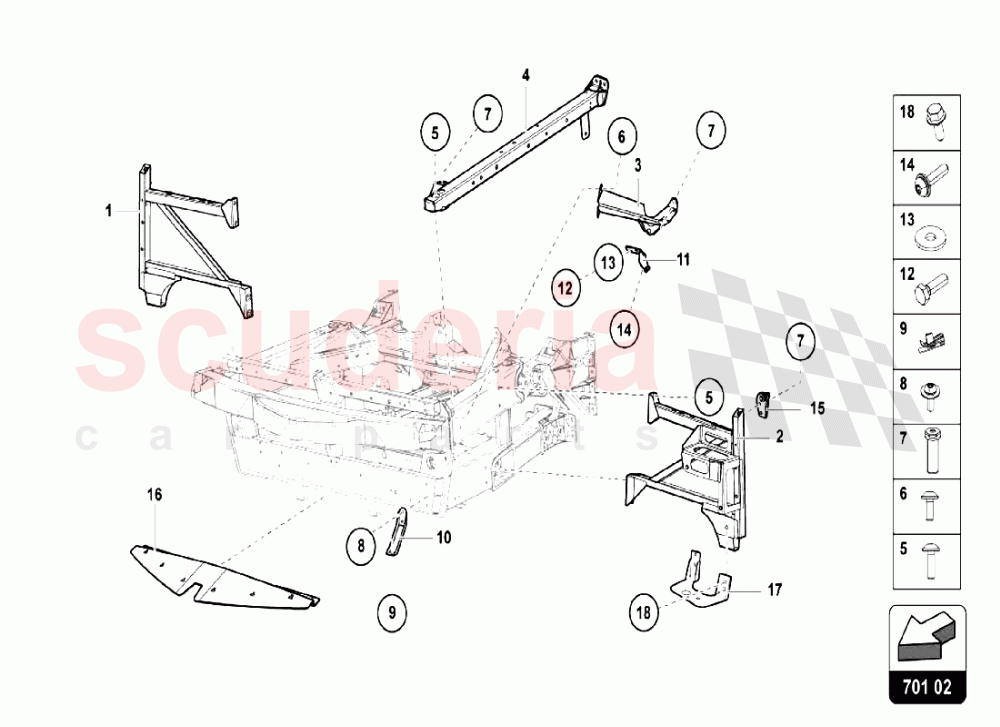

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470806192D	FRAME PART	470806192D FRAME PART	-	1	Enquire
002	470806191D	LEFT SUPPORT (CONTACT YOUR AREA MANAGER)	470806191D LEFT SUPPORT (CONTACT YOUR AREA MANAGER)	-	1	Enquire
003	470806811B	LH BRACKET (CONTACT YOUR AREA MANAGER)	470806811B LH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
003	470806812D	ARM	470806812D ARM	-	1	Enquire
004	470805100D	SIDE MEMBER	470805100D SIDE MEMBER	-	1	Enquire
004	470805099D	SIDE MEMBER	470805099D SIDE MEMBER	-	1	Enquire
005	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	10	Enquire
006	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	6	Enquire
007	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	8	Enquire
008	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	-	4	Enquire
009	N90981701	SPEED NUT	N90981701 SPEED NUT	-	2	Enquire
010	470807147A	BRACKET (CONTACT YOUR AREA MANAGER)	470807147A BRACKET (CONTACT YOUR AREA MANAGER)	-	2	Enquire
011	470807135B	LH BRACKET (CONTACT YOUR AREA MANAGER)	470807135B LH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
011	470807136B	RH BRACKET (CONTACT YOUR AREA MANAGER)	470807136B RH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
012	N0402936	HEXAGON BOLT	N0402936 HEXAGON BOLT	-	4	Enquire
013	WHT000778	WASHER	WHT000778 WASHER	-	4	Enquire
014	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	N91054101 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
015	470805328B	ARM	470805328B ARM	-	1	Enquire
015	470805327B	ARM	470805327B ARM	-	1	Enquire
016	470807165	FRONT SPOILER REINFORCEMENT	470807165 FRONT SPOILER REINFORCEMENT	-	1	Enquire
