Doors 3

Lamborghini Aventador LP720 Coupe

Find Your Part

Lamborghini Aventador LP720 Coupe - DOORS 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

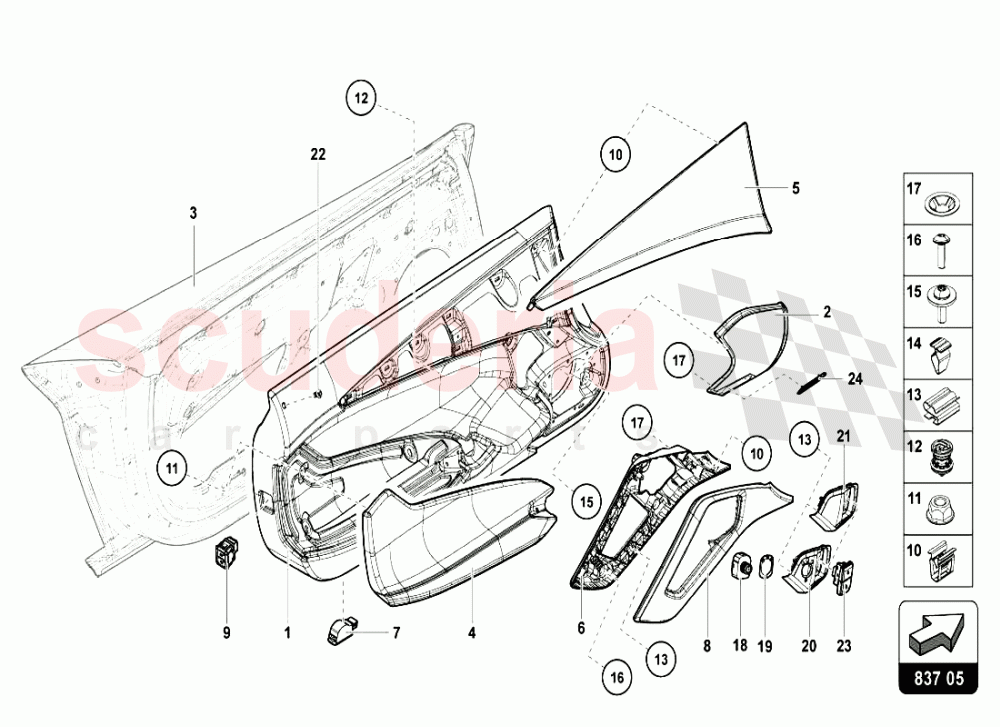

DOORS 3 of Lamborghini Lamborghini Aventador LP720 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 471867005D
DOOR PANEL 		$2,681.46 1
001 471867006B
RH DOOR PANEL ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$2,681.46 1
001 471867006D
DOOR PANEL 		$2,681.46 1
001 471867005B
LH DOOR PANEL ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$2,681.46 1
002 470868152A
LOUDSPEAKER GRILLE 		$190.19 1
002 470868151B
LOUDSPEAKER GRILLE 		$190.19 1
002 470868151A
LOUDSPEAKER GRILLE 		$190.19 1
002 470868152B
LOUDSPEAKER GRILLE 		$190.19 1
004 470867165E
INSERT 		$1,418.00 1
004 470867166D
INSERT 		$1,418.00 1
004 470867165F
LEFT DOOR UPHOLSTERY (LEATHER INTERIOR - Q-CITURA - SUPPLY 		$1,350.80 1
004 470867165D
INSERT 		$1,418.00 1
004 470867166E
INSERT 		$1,418.00 1
004 470867166F
RIGHT DOOR UPHOLSTERY (LEATHER INTERIOR - Q-CITURA - SUPPLY 		$1,350.80 1
005 470868110C
COVER FOR DOOR TRIM PANEL 		$1,024.19 1
005 470868109C
COVER FOR DOOR TRIM PANEL 		$1,024.19 1
005 470868109A
LEFT UPPER BODY ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$974.45 1
005 470868109D
COVER FOR DOOR TRIM PANEL 		$1,024.19 1
005 470868110A
RIGHT UPPER BODY ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$974.45 1
005 470868110D
COVER FOR DOOR TRIM PANEL 		$1,024.19 1
006 470867157A
LH HANDLE 		$247.97 1
006 470867151
DOOR HANDLE, INNER 		$7,426.05 1
006 470867152
DOOR HANDLE, INNER 		$7,426.05 1
006 470867158A
RH HANDLE 		$247.97 1
007 6Y0947411
DOOR WARNING LIGHT 		$28.90 2
008 470867172A
HANDLE SHELL, UPPER PART 		$200.26 1
008 470867171A
HANDLE SHELL, UPPER PART
IN STOCK 		$200.26 1
009 4F0962109
BUTTON FOR DEACTIVATION OF ANTI-THEFT ALARM SYSTEM AND TOW-AWAY PROTECTION 		$42.82 1
010 8T0853107
CLIP
IN STOCK 		$0.74 (89.8% off) 20
011 N90663601
HEX. NUT WITH WASHER 		$0.33 (95.5% off) 6
012 7L6868243
CLIP
IN STOCK 		$1.25 (82.7% off) 10
013 N90776001
CLIP 		$0.51 (93% off) 30
014 4A0867276A
CLIP
IN STOCK 		$0.95 (86.9% off) 8
015 N90684705
HEXAGON SOCKET HEAD BOLT (COMBI) 		$3.05 (57.8% off) 4
016 N10661002
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$0.76 (89.5% off) 4
017 N90657502
CLAMPING WASHER
IN STOCK 		$0.36 (95.1% off) 2
018 4T0959565
SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT 		$162.63 1
019 8T0919173A
FIBRE OPTIC CONDUCTOR 		$6.86 1
020 471837239A
ACTUATING LEVER 		$94.24 1
021 471837240A
ACTUATING LEVER 		$94.24 1
022 8Z0919424A4PK
SLEEVE DWA 		- 1 Enquire
023 470962241
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$38.30 1
023 4G8962107
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$40.06 1
023 470962242
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$38.30 1
023 4G8962108
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$40.06 1
024 470853740
LETTERING 		$227.15 1
024 470853741
LETTERING 		$227.15 1
