Frame Floor Panels

Lamborghini Aventador LP720 Coupe

Find Your Part

Lamborghini Aventador LP720 Coupe - FRAME FLOOR PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

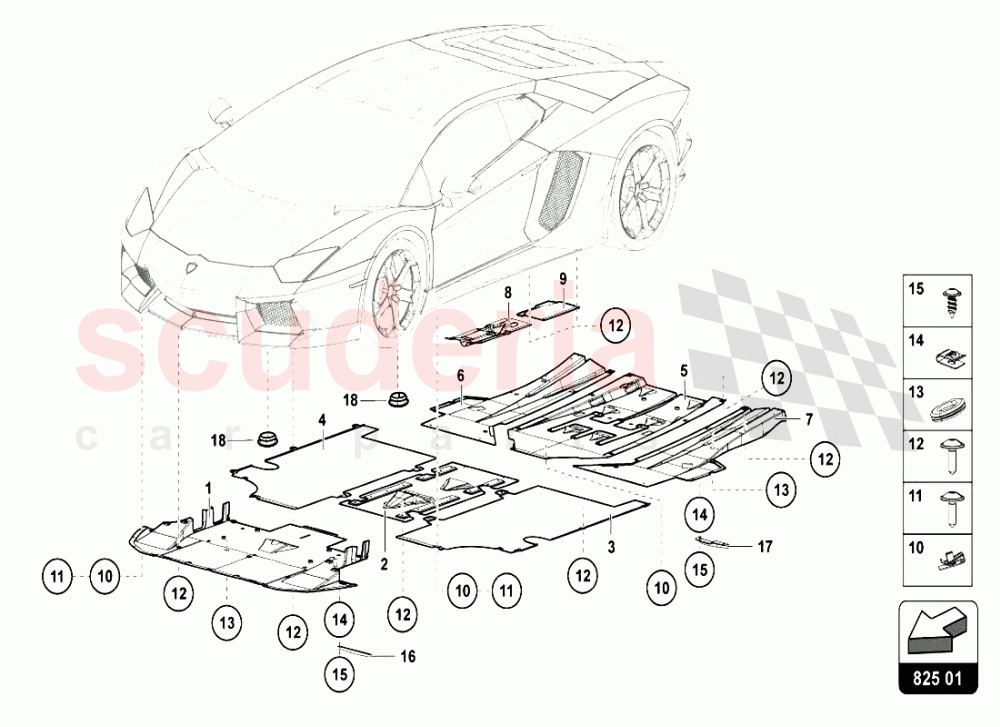

FRAME FLOOR PANELS of Lamborghini Lamborghini Aventador LP720 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 470825189F
UNDERBODY TRIM 		- 1 Enquire
002 470803969B
SCREENING PART INF.TUNNEL 		- 1 Enquire
003 470825207A
Underbody Trim (left) 		- 1 Enquire
004 470825208A
Underbody Trim (right) 		- 1 Enquire
005 470825210D
Underbody Trim (rear Center) 		- 1 Enquire
006 470825212C
STREAMLINE SHROUD, REAR RH (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
007 470825211C
STREAMLINE SHROUD, REAR LH (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
008 470803980C
Tunnel Trim (front, Inner) 		- 1 Enquire
009 470803962A
Tunnel Trim (rear, Inner) 		- 1 Enquire
010 N90688703
SPEED NUT 		- 14 Enquire
011 N91188301
HEXAGON SOCKET HEAD BOLT M6 X 20 		- 12 Enquire
012 N91188301
HEXAGON SOCKET HEAD BOLT M6 X 20 		- 54 Enquire
013 400821190
GROMMET 		- 4 Enquire
014 N0154487
SPEED NUT 		- 8 Enquire
015 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		- 8 Enquire
016 400807062B
FRONT SPOILER 		- 1 Enquire
016 400807062C
Right Spoiler 		- 1 Enquire
017 470853887A
SPOILER 		- 1 Enquire
017 470853888A
SPOILER 		- 1 Enquire
018 470804998
BUNGS 		- 4 Enquire
