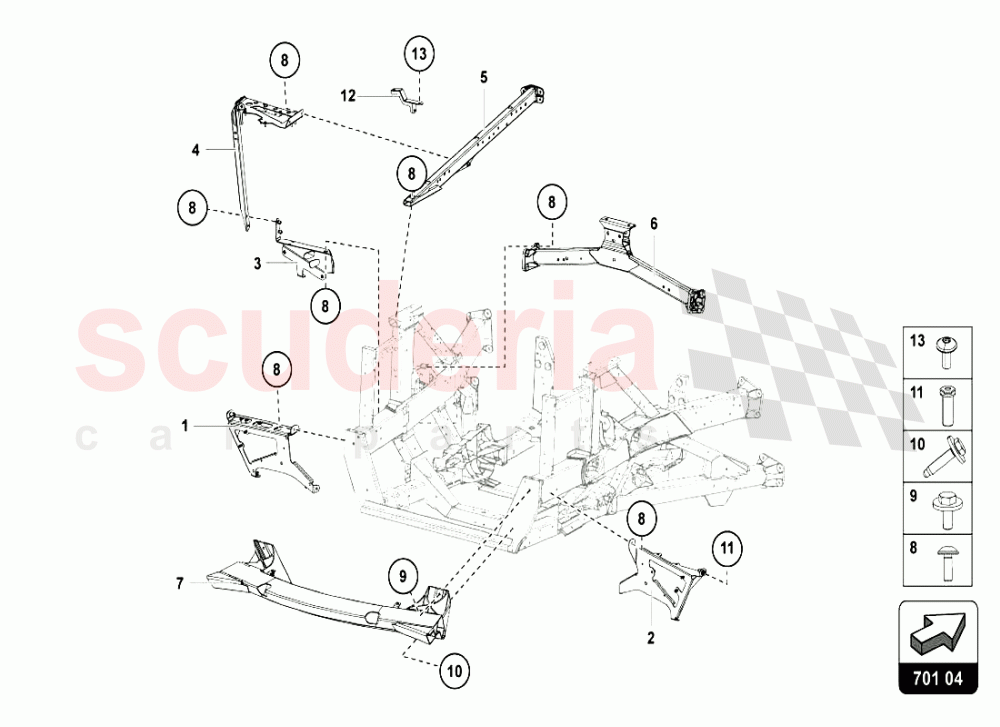

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470814907C	ARM	470814907C ARM	-	1	Enquire
002	470814908B	RH BRACKET (CONTACT YOUR AREA MANAGER)	470814908B RH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
003	470814149C	LH BRACKET (CONTACT YOUR AREA MANAGER)	470814149C LH BRACKET (CONTACT YOUR AREA MANAGER)	-	1	Enquire
003	470814150C	ARM	470814150C ARM	-	1	Enquire
004	470813541B	BRACKET	470813541B BRACKET	-	1	Enquire
004	470813542B	BRACKET	470813542B BRACKET	-	1	Enquire
005	470813649J	LH SIDE MEMBER (CONTACT YOUR AREA MANAGER)	470813649J LH SIDE MEMBER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	470813650E	SIDE MEMBER	470813650E SIDE MEMBER	-	1	Enquire
006	470813623B	CROSS MEMBER (CONTACT YOUR AREA MANAGER)	470813623B CROSS MEMBER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
007	470807307B	CROSS MEMBER (CONTACT YOUR AREA MANAGER)	470807307B CROSS MEMBER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
008	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	32	Enquire
009	N90786503	HEXAGON HEAD BOLT (COMBI)	N90786503 HEXAGON HEAD BOLT (COMBI)	-	2	Enquire
010	N90862302	HEXAGON HEAD BOLT (COMBI)	N90862302 HEXAGON HEAD BOLT (COMBI)	-	2	Enquire
011	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	2	Enquire
012	470854729	BRACKET	470854729 BRACKET	-	2	Enquire
013	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
