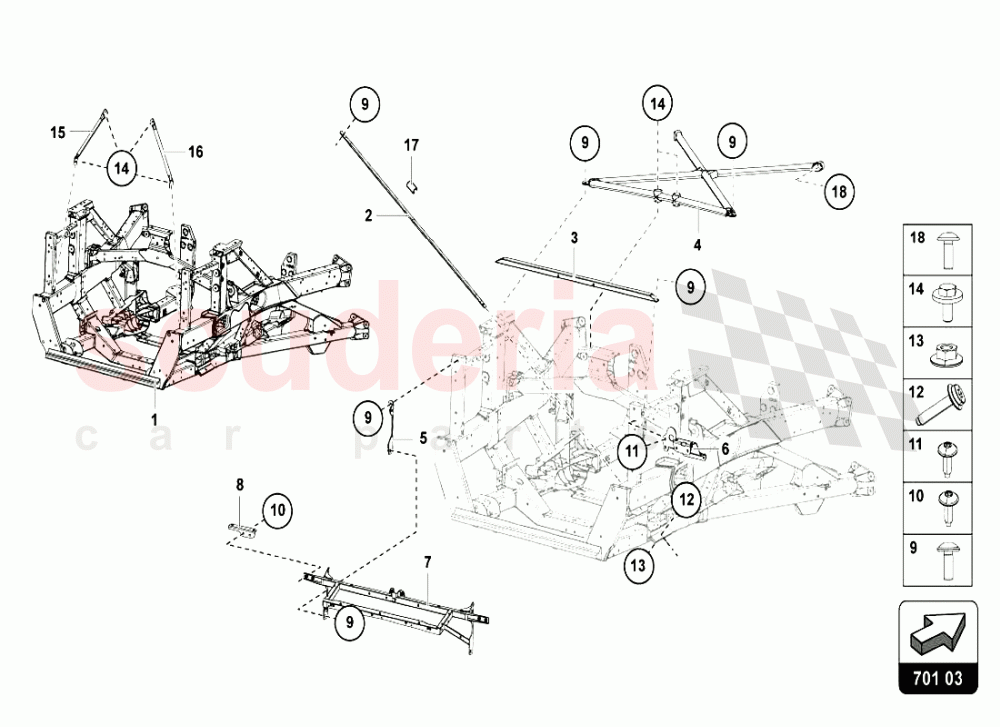

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470813031B	REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	470813031B REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	-	1	Enquire
002	470813249B	CROSS MEMBER	470813249B CROSS MEMBER	-	2	Enquire
003	470814519D	CROSS MEMBER	470814519D CROSS MEMBER	-	1	Enquire
005	470814658B	ARM	470814658B ARM	-	1	Enquire
005	470814657B	ARM	470814657B ARM	-	1	Enquire
006	470814942B	Bracket (rear)	470814942B Bracket (rear)	-	1	Enquire
008	470814186B	Arm (right Rear)	470814186B Arm (right Rear)	-	1	Enquire
008	470814185B	Arm (left Rear)	470814185B Arm (left Rear)	-	1	Enquire
009	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	N0195306 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	-	14	Enquire
010	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
011	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
012	WHT001237	HEX SOCKET HEAD COLLARED BOLT	WHT001237 HEX SOCKET HEAD COLLARED BOLT	-	2	Enquire
013	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT	-	2	Enquire
014	N90863802	HEXAGON HEAD BOLT (COMBI)	N90863802 HEXAGON HEAD BOLT (COMBI)	-	6	Enquire
015	470813465B	SIDE REINFORCEMENT	470813465B SIDE REINFORCEMENT	-	1	Enquire
016	470813466B	SIDE REINFORCEMENT	470813466B SIDE REINFORCEMENT	-	1	Enquire
017	N10761201	TOOTHED LOCK WASHER	N10761201 TOOTHED LOCK WASHER	-	2	Enquire
