SECONDARY AIR SYSTEM of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - SECONDARY AIR SYSTEM

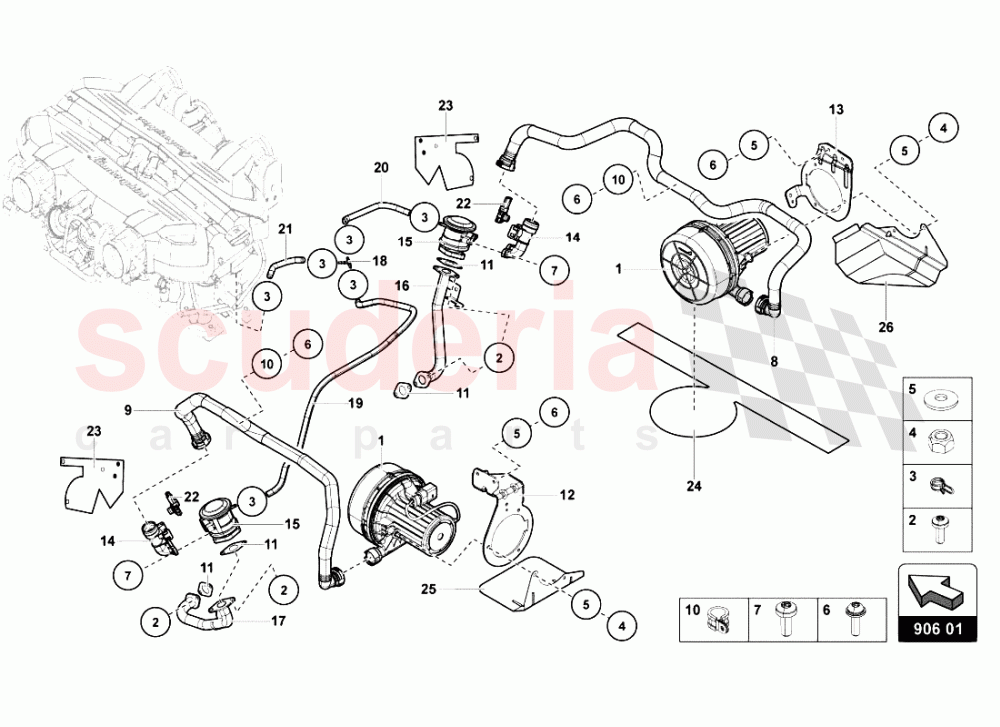

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400998075	PUMP IN STOCK	400998075 PUMP IN STOCK	$599.47	2
002	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.47	8
003	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	6
004	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$1.96 MSRP: ~~7.29~~ (73.1% off)	6
005	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	10
006	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91054001 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	$1.04 MSRP: ~~7.27~~ (85.7% off)	9
007	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.47	4
008	470131611B	AIR HOSE IN STOCK	470131611B AIR HOSE IN STOCK	$728.87	1
009	470131611C	AIR HOSE	470131611C AIR HOSE	$705.67	1
010	N0206253	CLAMP	N0206253 CLAMP	$1.89 MSRP: ~~7.07~~ (73.3% off)	5
011	6A131120D	SEAL IN STOCK	6A131120D SEAL IN STOCK	$7.87	4
012	470906613C	SUPPORT	470906613C SUPPORT	$45.32	1
013	470906617A	SUPPORT	470906617A SUPPORT	$24.34	1
014	7L131119	ADAPTER IN STOCK	7L131119 ADAPTER IN STOCK	$16.88	2
015	7L131101N	COMBINATION VALVE IN STOCK	7L131101N COMBINATION VALVE IN STOCK	$159.66	2
016	470133898A	PIPE	470133898A PIPE	$193.56	1
017	470133897B	PIPE	470133897B PIPE	$199.59	1
018	7L133579	T-PIECE	7L133579 T-PIECE	$8.01	1
019	470131845	PIPE	470131845 PIPE	$98.00	1
020	470131846	PIPE	470131846 PIPE	$45.82	1
021	470131853	PIPE	470131853 PIPE	$19.97	1
022	6L906052A	PRESSURE SENSOR IN STOCK	6L906052A PRESSURE SENSOR IN STOCK	$86.65	2
023	7M133106B	HEAT SHIELD	7M133106B HEAT SHIELD	$104.17	2
025	470906325A	HEAT SHIELD	470906325A HEAT SHIELD	$45.15	1
026	470906294A	HEAT SHIELD	470906294A HEAT SHIELD	$103.88	1
