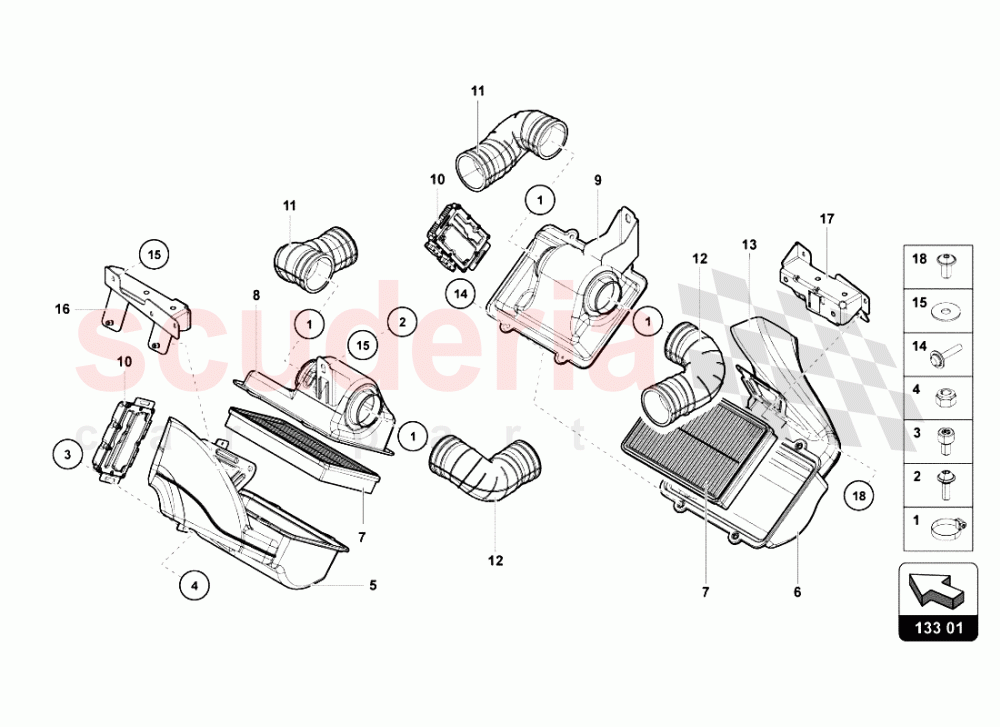

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0245034	CLAMP IN STOCK	N0245034 CLAMP IN STOCK	-	4	Enquire
002	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	2	Enquire
003	N10650701	HEXAGON SOCKET HEAD BOLT IN STOCK	N10650701 HEXAGON SOCKET HEAD BOLT IN STOCK	-	4	Enquire
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	-	4	Enquire
005	470133845B	AIR CLEANER, LOWER PART	470133845B AIR CLEANER, LOWER PART	-	1	Enquire
006	470133846B	AIR FILTER ELEMENT	470133846B AIR FILTER ELEMENT	-	1	Enquire
007	470133843A	Air Filter IN STOCK	470133843A Air Filter IN STOCK	-	2	Enquire
008	470133839B	AIR CLEANER UPPER PART	470133839B AIR CLEANER UPPER PART	-	1	Enquire
009	470133840B	AIR CLEANER UPPER PART	470133840B AIR CLEANER UPPER PART	-	1	Enquire
010	470905367A	ION - CONTROL UNIT IN STOCK	470905367A ION - CONTROL UNIT IN STOCK	-	2	Enquire
011	470129454	INTAKE HOSE	470129454 INTAKE HOSE	-	2	Enquire
012	470129627C	INTAKE HOSE	470129627C INTAKE HOSE	-	2	Enquire
013	470129454	INTAKE HOSE	470129454 INTAKE HOSE	-	1	Enquire
014	470198318	LOCKING PIN IN STOCK	470198318 LOCKING PIN IN STOCK	-	8	Enquire
015	N0116945	WASHER IN STOCK	N0116945 WASHER IN STOCK	-	8	Enquire
018	WHT002225A	HEXAGON SOCKET HEAD BOLT IN STOCK	WHT002225A HEXAGON SOCKET HEAD BOLT IN STOCK	-	4	Enquire
