RIGHT CYLINDER HEAD AND COVER of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - RIGHT CYLINDER HEAD AND COVER

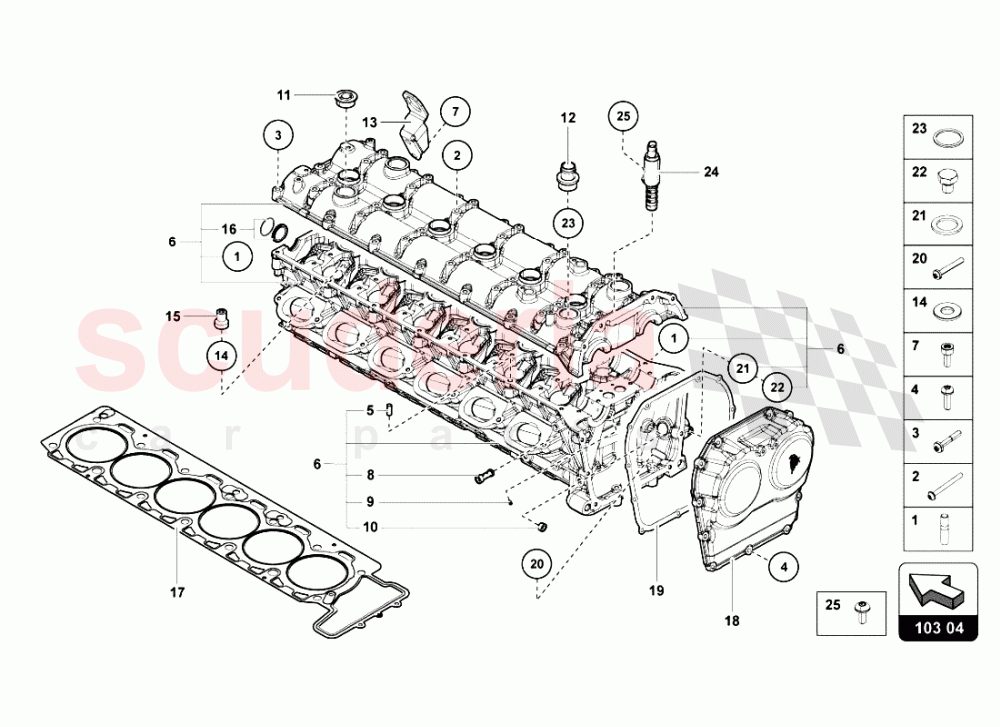

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003028	THREADED PIN	WHT003028 THREADED PIN	-	18	Enquire
002	N91089601	HEXAGON SOCKET FLAT HEAD BOLT	N91089601 HEXAGON SOCKET FLAT HEAD BOLT	-	28	Enquire
003	N91127601	ROUND HD. SCREW	N91127601 ROUND HD. SCREW	-	15	Enquire
004	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	11	Enquire
005	7M101110	CENTRE SLEEVE	7M101110 CENTRE SLEEVE	-	4	Enquire
007	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	2	Enquire
008	7M109291C	PLUG	7M109291C PLUG	-	2	Enquire
009	7M109291	BUNGS	7M109291 BUNGS	-	2	Enquire
010	7M109291D	BUNGS	7M109291D BUNGS	-	8	Enquire
011	7M103037A	BUNGS	7M103037A BUNGS	-	3	Enquire
012	7M103037C	CONNECTION PIECE	7M103037C CONNECTION PIECE	-	1	Enquire
013	7M199080D	HOOKS	7M199080D HOOKS	-	1	Enquire
014	WHT004875A	WASHER	WHT004875A WASHER	-	14	Enquire
015	7M103448C	NUT	7M103448C NUT	-	14	Enquire
016	7M103113B	END CAP	7M103113B END CAP	-	2	Enquire
017	7M103148D	CYLINDER HEAD GASKET	7M103148D CYLINDER HEAD GASKET	-	1	Enquire
019	7M109091D	SEAL	7M109091D SEAL	-	1	Enquire
020	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	2	Enquire
021	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	2	Enquire
022	N0102358	HEXAGON BOLT	N0102358 HEXAGON BOLT	-	2	Enquire
023	WHT000674	WASHER	WHT000674 WASHER	-	1	Enquire
024	6E109257AA	CONTROL VALVE	6E109257AA CONTROL VALVE	-	2	Enquire
025	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	-	2	Enquire
