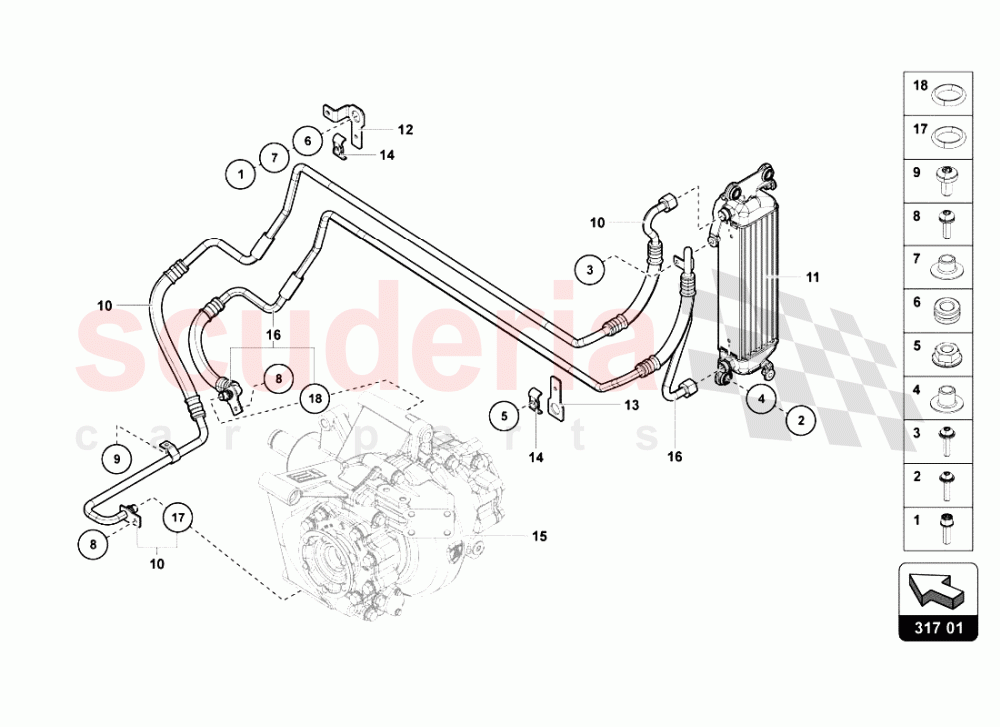

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10720901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N10720901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	2	Enquire
002	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	-	3	Enquire
003	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	N91054101 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
004	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	-	3	Enquire
005	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	-	2	Enquire
006	4D0317867A	RUBBER BUSH IN STOCK	4D0317867A RUBBER BUSH IN STOCK	-	2	Enquire
007	4E0903127	MOUNTING	4E0903127 MOUNTING	-	2	Enquire
008	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	-	2	Enquire
009	N10335202	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10335202 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	-	1	Enquire
010	470511805A	Pipe	470511805A Pipe	-	1	Enquire
011	470511885A	OIL COOLER	470511885A OIL COOLER	-	1	Enquire
012	470511538	ARM	470511538 ARM	-	1	Enquire
013	470511833	ARM	470511833 ARM	-	1	Enquire
014	4A0317171D	CLAMP	4A0317171D CLAMP	-	2	Enquire
016	470511822A	Pipe	470511822A Pipe	-	1	Enquire
017	N90666003	O-RING IN STOCK	N90666003 O-RING IN STOCK	-	1	Enquire
018	N90666003	O-RING IN STOCK	N90666003 O-RING IN STOCK	-	1	Enquire
