Name: DOOR SEALS
Rating: 5.0 (1 reviews)

View All

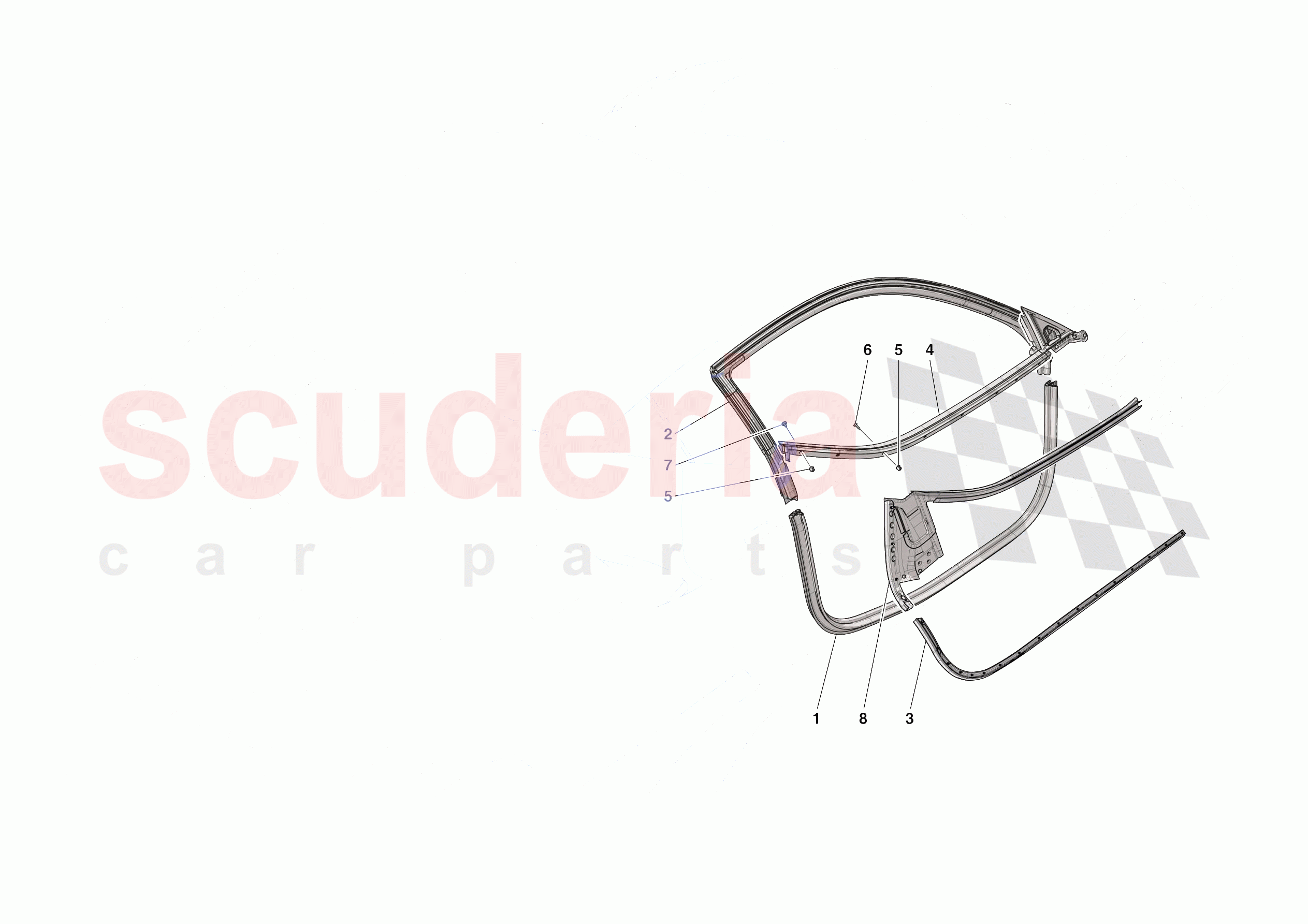

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	898528	LOWER DOOR PERIMETER SEAL	$198.66	To Order

Photo	Part No	Description	Price (each)	Stock
	917633	RH DOOR LOWER INNER PERIMETER SEAL	$211.92	To Order
	917631	LH DOOR LOWER INNER PERIMETER SEAL	$211.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	917632	RH DOOR UPPER INNER PERIMETER SEAL	$304.63	To Order
	917630	LH DOOR UPPER INNER PERIMETER SEAL	$331.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	898528	LOWER DOOR PERIMETER SEAL	898528 LOWER DOOR PERIMETER SEAL	$198.66	2
0002	815740	RH DOOR PERIMETER SEAL	815740 RH DOOR PERIMETER SEAL	$503.33	1
0002	815662	LH DOOR PERIMETER SEAL	815662 LH DOOR PERIMETER SEAL	$490.08	1
0003	917633	RH DOOR LOWER INNER PERIMETER SEAL	917633 RH DOOR LOWER INNER PERIMETER SEAL	$211.92	1
0003	917631	LH DOOR LOWER INNER PERIMETER SEAL	917631 LH DOOR LOWER INNER PERIMETER SEAL	$211.92	1
0004	898546	RH DOOR OUTER PERIMETER SEAL	898546 RH DOOR OUTER PERIMETER SEAL	$503.33	1
0004	898529	LH DOOR OUTER PERIMETER SEAL	898529 LH DOOR OUTER PERIMETER SEAL	$476.84	1
0005	14115885	BLOCK	14115885 BLOCK	$0.16	16
0006	15689601	SCREW	15689601 SCREW	$0.24	14
0007	15689601	SCREW	15689601 SCREW M8 X 13	$0.24	2
0008	917632	RH DOOR UPPER INNER PERIMETER SEAL	917632 RH DOOR UPPER INNER PERIMETER SEAL	$304.63	1
0008	917630	LH DOOR UPPER INNER PERIMETER SEAL	917630 LH DOOR UPPER INNER PERIMETER SEAL	$331.13	1
