Name: STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE
Rating: 4.7 (1 reviews)

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari SF90 XX Stradale USA

View All

Ferrari SF90 XX Stradale USA - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

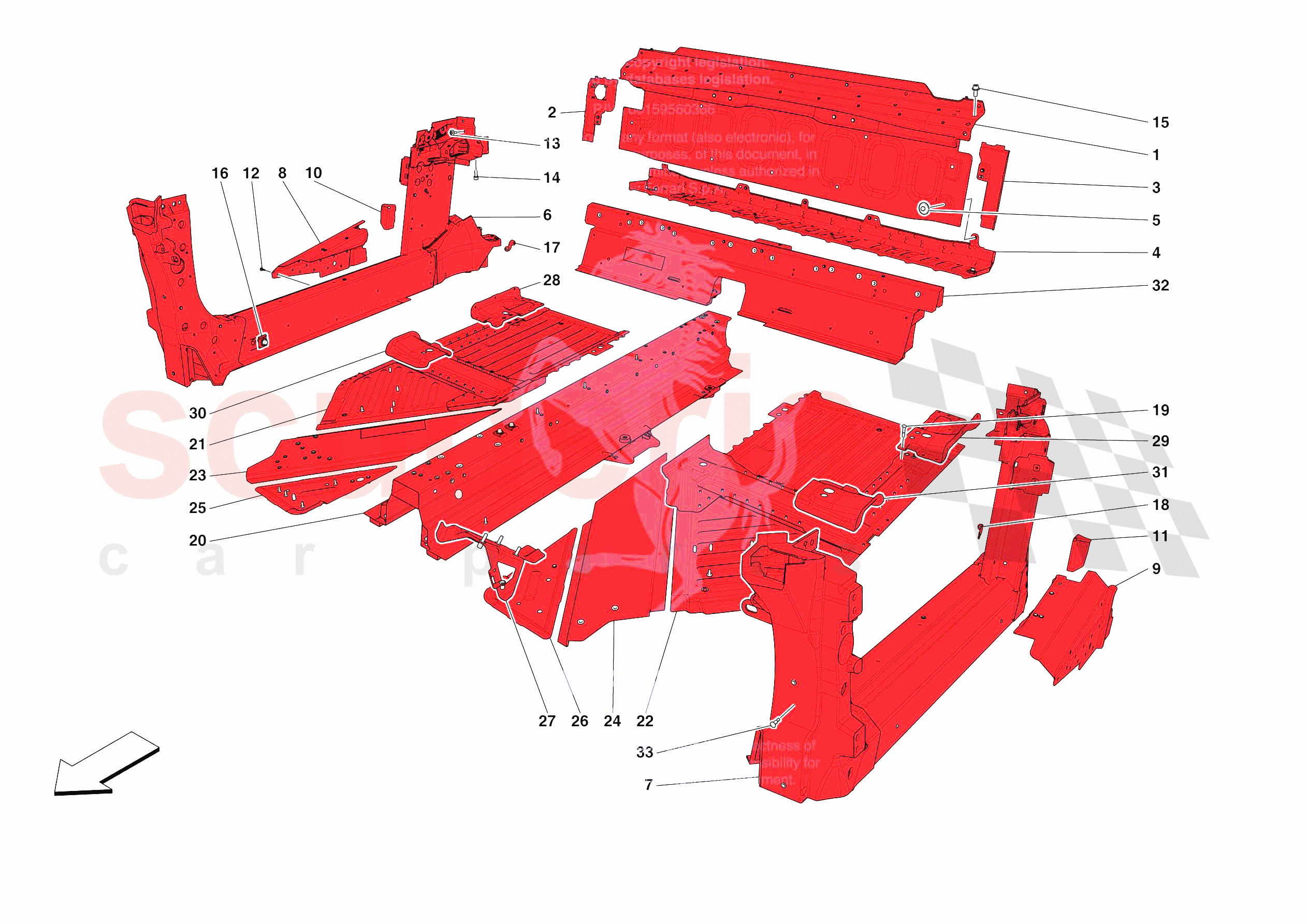

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	741156	FIREWALL ASSEMBLY	$16,317.03	To Order

Photo	Part No	Description	Price (each)	Stock
	985864948	COMPL. RH B PILLAR INTERFACE PANEL	$573.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985864929	COMPL. LH B PILLAR INTERFACE PANEL	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	985864926	LOWER REAR FIREWALL	$1,766.00	To Order

Photo	Part No	Description	Price (each)	Stock
	968262	SCREW	$19.58	To Order

Photo	Part No	Description	Price (each)	Stock
	985829476	RH CENTRE SIDEWALL	$15,596.00	To Order

Photo	Part No	Description	Price (each)	Stock
	985829477	LH CENTRE SIDEWALL	$15,596.00	To Order

Photo	Part No	Description	Price (each)	Stock
	985925987	COMPL. RH B-PILLAR TRUSS	$659.38	To Order

Photo	Part No	Description	Price (each)	Stock
	985864735	COMPL. LH B-PILLAR TRUSS	$645.03	To Order

Photo	Part No	Description	Price (each)	Stock
	813655	LH CORNER BRACKET FASTENING TO CHASSIS	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	813654	RH CORNER BRACKET FASTENING TO CHASSIS	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	330777	RIVET	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	985569	SCREW	$5.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985568	SCREW	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	252821	COMPL. GROUND	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	865404	COMPL. RH TANK HEAT SHIELD BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	865401	COMPL. LH TANK HEAT SHIELD BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	204430	RIVET	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	985788492	CENTRE TUNNEL	$3,841.65	To Order

Photo	Part No	Description	Price (each)	Stock
	985918789	RH FLOOR PANEL	$3,615.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985918786	LH FLOOR PANEL	$3,615.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985878852	RH TORQUE BOX REINFORCEMENT EXTRUSION	$1,347.42	To Order
	985895610	RH TORQUE BOX REINFORCEMENT EXTRUSION	$845.72	To Order

Photo	Part No	Description	Price (each)	Stock
	985873788	LH TORQUE BOX REINFORCEMENT EXTRUSION	$759.72	To Order
	985891075	LH TORQUE BOX REINFORCEMENT EXTRUSION	$946.06	To Order

Photo	Part No	Description	Price (each)	Stock
	985849008	COMPL. FRONT RH FLOOR ENDPIECE	$444.36	To Order
	985893584	COMPL. FRONT RH FLOOR ENDPIECE	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985864721	COMPL. FRONT LH FLOOR ENDPIECE	$372.69	To Order
	985893582	COMPL. FRONT LH FLOOR ENDPIECE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	985866360	COMPL. ACCELERATOR PEDAL BRACKET	$329.67	To Order
	985940425	COMPL. ACCELERATOR PEDAL BRACKET	$315.34	To Order

Photo	Part No	Description	Price (each)	Stock
	985771121	RH REAR OUTER SEAT REINFORCEMENT	$487.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985771120	LH REAR OUTER SEAT REINFORCEMENT	$487.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985864733	RH FRONT OUTER SEAT REINFORCEMENT	$458.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985864732	LH FRONT OUTER SEAT REINFORCEMENT	$458.69	To Order

Photo	Part No	Description	Price (each)	Stock
	985873225	COMPL. REAR CROSS MEMBER	$5,538.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14639791	RIVET	$1.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	741156	FIREWALL ASSEMBLY	741156 FIREWALL ASSEMBLY Carbon	$16,317.03	1
0002	985864948	COMPL. RH B PILLAR INTERFACE PANEL	985864948 COMPL. RH B PILLAR INTERFACE PANEL	$573.36	1
0003	985864929	COMPL. LH B PILLAR INTERFACE PANEL	985864929 COMPL. LH B PILLAR INTERFACE PANEL	$516.03	1
0004	985864926	LOWER REAR FIREWALL	985864926 LOWER REAR FIREWALL Request ASM authorisation	$1,766.00	1
0005	968262	SCREW	968262 SCREW M5 X 14	$19.58	7
0006	985829476	RH CENTRE SIDEWALL	985829476 RH CENTRE SIDEWALL Request ASM authorisation	$15,596.00	1
0007	985829477	LH CENTRE SIDEWALL	985829477 LH CENTRE SIDEWALL Request ASM authorisation	$15,596.00	1
0008	985925987	COMPL. RH B-PILLAR TRUSS	985925987 COMPL. RH B-PILLAR TRUSS	$659.38	1
0009	985864735	COMPL. LH B-PILLAR TRUSS	985864735 COMPL. LH B-PILLAR TRUSS	$645.03	1
0010	813655	LH CORNER BRACKET FASTENING TO CHASSIS	813655 LH CORNER BRACKET FASTENING TO CHASSIS	$34.38	1
0011	813654	RH CORNER BRACKET FASTENING TO CHASSIS	813654 RH CORNER BRACKET FASTENING TO CHASSIS	$34.38	1
0012	330777	RIVET	330777 RIVET	$4.51	8
0013	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	$6.18	2
0014	985569	SCREW	985569 SCREW	$5.77	4
0015	985568	SCREW	985568 SCREW	$6.84	6
0016	252821	COMPL. GROUND	252821 COMPL. GROUND	$38.69	1
0017	865404	COMPL. RH TANK HEAT SHIELD BRACKET	865404 COMPL. RH TANK HEAT SHIELD BRACKET	$54.46	1
0018	865401	COMPL. LH TANK HEAT SHIELD BRACKET	865401 COMPL. LH TANK HEAT SHIELD BRACKET	$54.46	1
0019	204430	RIVET	204430 RIVET	$1.46	-
0020	985788492	CENTRE TUNNEL	985788492 CENTRE TUNNEL Request ASM authorisation	$3,841.65	1
0021	985918789	RH FLOOR PANEL	985918789 RH FLOOR PANEL Request ASM authorisation	$3,615.16	1
0022	985918786	LH FLOOR PANEL	985918786 LH FLOOR PANEL Request ASM authorisation	$3,615.16	1
0023	985878852	RH TORQUE BOX REINFORCEMENT EXTRUSION	985878852 RH TORQUE BOX REINFORCEMENT EXTRUSION Request ASM authorisation	$1,347.42	1
0023	985895610	RH TORQUE BOX REINFORCEMENT EXTRUSION	985895610 RH TORQUE BOX REINFORCEMENT EXTRUSION Request ASM authorisation	$845.72	1
0024	985873788	LH TORQUE BOX REINFORCEMENT EXTRUSION	985873788 LH TORQUE BOX REINFORCEMENT EXTRUSION Request ASM authorisation	$759.72	1
0024	985891075	LH TORQUE BOX REINFORCEMENT EXTRUSION	985891075 LH TORQUE BOX REINFORCEMENT EXTRUSION Request ASM authorisation	$946.06	1
0025	985849008	COMPL. FRONT RH FLOOR ENDPIECE	985849008 COMPL. FRONT RH FLOOR ENDPIECE	$444.36	1
0025	985893584	COMPL. FRONT RH FLOOR ENDPIECE	985893584 COMPL. FRONT RH FLOOR ENDPIECE	$415.69	1
0026	985864721	COMPL. FRONT LH FLOOR ENDPIECE	985864721 COMPL. FRONT LH FLOOR ENDPIECE	$372.69	1
0026	985893582	COMPL. FRONT LH FLOOR ENDPIECE	985893582 COMPL. FRONT LH FLOOR ENDPIECE	$286.67	1
0027	985866360	COMPL. ACCELERATOR PEDAL BRACKET	985866360 COMPL. ACCELERATOR PEDAL BRACKET	$329.67	1
0027	985940425	COMPL. ACCELERATOR PEDAL BRACKET	985940425 COMPL. ACCELERATOR PEDAL BRACKET	$315.34	1
0028	985771121	RH REAR OUTER SEAT REINFORCEMENT	985771121 RH REAR OUTER SEAT REINFORCEMENT	$487.36	1
0029	985771120	LH REAR OUTER SEAT REINFORCEMENT	985771120 LH REAR OUTER SEAT REINFORCEMENT	$487.36	1
0030	985864733	RH FRONT OUTER SEAT REINFORCEMENT	985864733 RH FRONT OUTER SEAT REINFORCEMENT	$458.69	1
0031	985864732	LH FRONT OUTER SEAT REINFORCEMENT	985864732 LH FRONT OUTER SEAT REINFORCEMENT	$458.69	1
0032	985873225	COMPL. REAR CROSS MEMBER	985873225 COMPL. REAR CROSS MEMBER Request ASM authorisation	$5,538.86	1
0033	14639791	RIVET	14639791 RIVET	$1.36	13
