Ferrari SF90 XX Stradale USA - REAR SUBFRAME

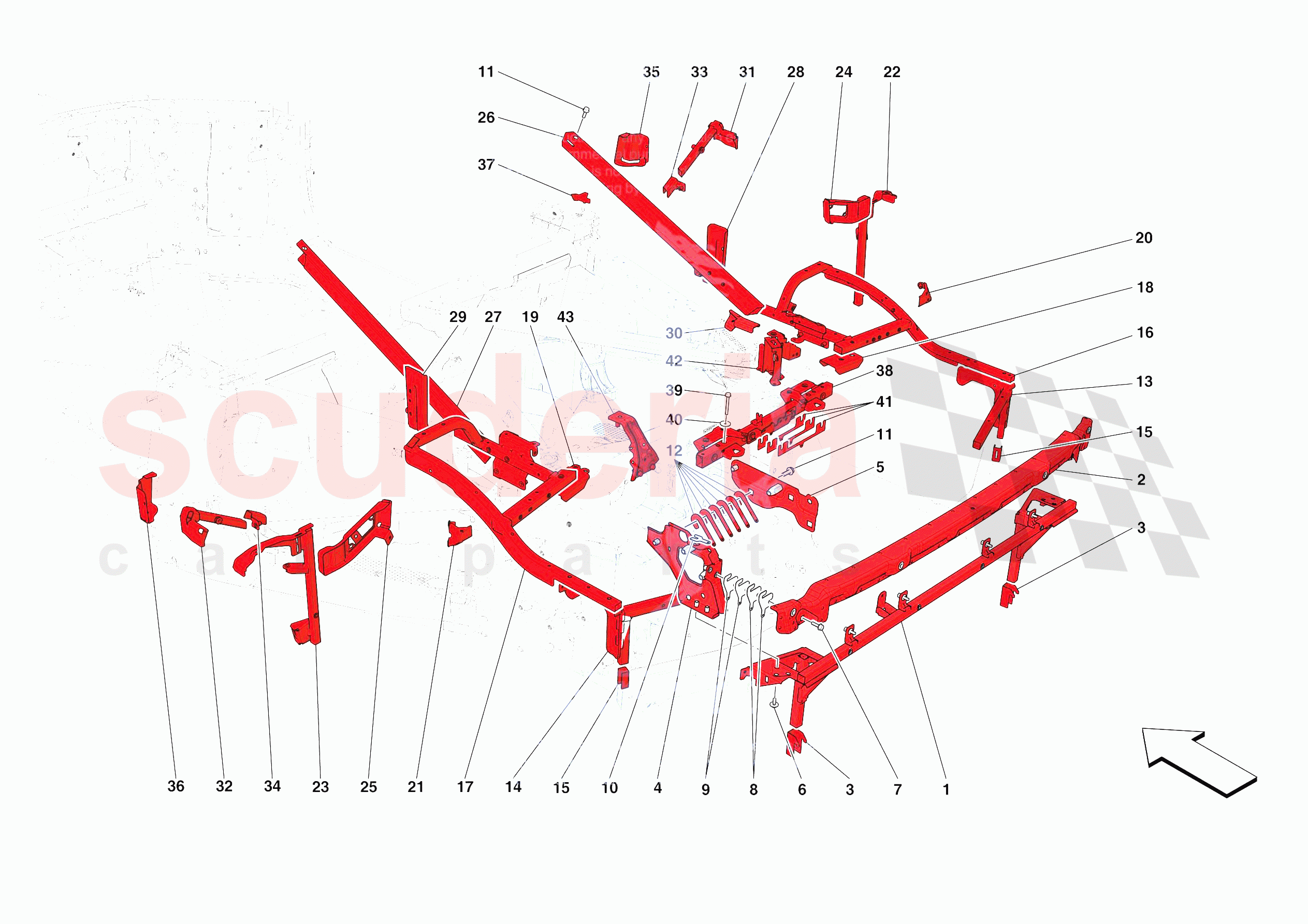

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985868160	COMPL. CENTRE REAR TRELLIS	$673.92	To Order
	985868160	COMPL. CENTRE REAR TRELLIS	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$770.19	To Order
	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	830363	VERTICLE TRELLIS BRACKET	$11.38	To Order
	830363	VERTICLE TRELLIS BRACKET	$11.38	To Order

Photo	Part No	Description	Price (each)	Stock
	876403	COMPL. LH BASE MOUNTING BRACKET	$109.10	To Order
	876616	COMPL. RH BASE MOUNTING BRACKET	$109.10	To Order
	876403	COMPL. LH BASE MOUNTING BRACKET	$109.10	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	902823	COMPL. LH PYLON MOUNTING BRACKET	$67.38	To Order
	902841	COMPL. RH PYLON MOUNTING BRACKET	$67.38	To Order
	902823	COMPL. LH PYLON MOUNTING BRACKET	$67.38	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	IN STOCK
	16286121	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	IN STOCK
	16286121	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	905706	ADJUSTMENT SHIM	$10.57	To Order
	905706	ADJUSTMENT SHIM	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	905667	ADJUSTMENT SHIM	$10.57	To Order
	905667	ADJUSTMENT SHIM	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	900885	ADJUSTMENT SHIM	$6.73	To Order
	900885	ADJUSTMENT SHIM	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.38	IN STOCK
	16287524	SCREW	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	946823	ADJUSTMENT SHIM	$6.05	To Order
	946823	ADJUSTMENT SHIM	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	985877493	COMPL. RH REAR TRELLIS	$272.77	To Order
	985877493	COMPL. RH REAR TRELLIS	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985877492	COMPL. LH REAR TRELLIS	$272.77	To Order
	985877492	COMPL. LH REAR TRELLIS	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	830381	EXTERNAL VERTICLE TRELLIS BRACKET	$10.73	To Order
	830381	EXTERNAL VERTICLE TRELLIS BRACKET	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	985877477	RH REAR FLANK TRELLIS	$882.51	To Order
	985877477	RH REAR FLANK TRELLIS	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	985877476	LH REAR FLANK TRELLIS	$882.51	To Order
	985877476	LH REAR FLANK TRELLIS	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	830370	UPPER BRACKET FOR REAR RH NODE	$11.38	To Order
	830370	UPPER BRACKET FOR REAR RH NODE	$11.38	To Order

Photo	Part No	Description	Price (each)	Stock
	877549	UPPER BRACKET FOR REAR LH NODE	$20.29	To Order
	877549	UPPER BRACKET FOR REAR LH NODE	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	925914	COMPL. RH BRACKET	$64.17	To Order
	925914	COMPL. RH BRACKET	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	925913	COMPL. LH BRACKET	$64.17	To Order
	925913	COMPL. LH BRACKET	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	985877497	COMPL. RH AIR FILTER MOUNT	$401.13	To Order
	985877497	COMPL. RH AIR FILTER MOUNT	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	985877494	COMPL. LH AIR FILTER MOUNT	$401.13	To Order
	985877494	COMPL. LH AIR FILTER MOUNT	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	985830424	RH WHEELHOUSE BRACKET	$134.77	To Order
	985830424	RH WHEELHOUSE BRACKET	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985830415	LH WHEELHOUSE BRACKET	$134.77	To Order
	985830415	LH WHEELHOUSE BRACKET	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$272.77	To Order
	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$272.77	To Order
	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$134.77	To Order
	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$134.77	To Order
	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	803290	RH FRONT CORNER BRACKET	$64.17	To Order
	865531	LH FRONT CORNER BRACKET	$70.59	To Order
	803290	RH FRONT CORNER BRACKET	$64.17	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	$290.06	To Order
	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	$290.06	To Order

Photo	Part No	Description	Price (each)	Stock
	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	$290.06	To Order
	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	$290.06	To Order

Photo	Part No	Description	Price (each)	Stock
	877491	COMPL. RH ADJUSTER CUP	$17.63	To Order
	877491	COMPL. RH ADJUSTER CUP	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	877490	COMPL. LH ADJUSTER CUP	$17.63	To Order
	877490	COMPL. LH ADJUSTER CUP	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	830360	RH FLANK ADJUSTMENT BRACKET	$33.68	To Order
	830360	RH FLANK ADJUSTMENT BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	830359	LH FLANK ADJUSTMENT BRACKET	$33.68	To Order
	830359	LH FLANK ADJUSTMENT BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	910807	RH COMPARTMENT BLANKING PLATE	$14.75	To Order
	910805	LH COMPARTMENT BLANKING PLATE	$14.75	To Order
	910807	RH COMPARTMENT BLANKING PLATE	$14.75	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$754.15	To Order
	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$754.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	$0.28	To Order
	14304824	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	$0.15	IN STOCK
	12640624	WASHER	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	830401	LOCK BRACKET THICKNESS	$10.73	To Order
	830401	LOCK BRACKET THICKNESS	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	909590	COMPL. STRUT MOUNTING BRACKET	$150.82	To Order
	909590	COMPL. STRUT MOUNTING BRACKET	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.49	To Order
	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.49	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985868160	COMPL. CENTRE REAR TRELLIS	985868160 COMPL. CENTRE REAR TRELLIS	$673.92	1
0001	985868160	COMPL. CENTRE REAR TRELLIS	985868160 COMPL. CENTRE REAR TRELLIS	$673.92	1
0002	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	985886117 COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$770.19	1
0002	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	985886117 COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$770.19	1
0003	830363	VERTICLE TRELLIS BRACKET	830363 VERTICLE TRELLIS BRACKET	$11.38	2
0003	830363	VERTICLE TRELLIS BRACKET	830363 VERTICLE TRELLIS BRACKET	$11.38	2
0004	876403	COMPL. LH BASE MOUNTING BRACKET	876403 COMPL. LH BASE MOUNTING BRACKET	$109.10	1
0004	876616	COMPL. RH BASE MOUNTING BRACKET	876616 COMPL. RH BASE MOUNTING BRACKET	$109.10	1
0004	876403	COMPL. LH BASE MOUNTING BRACKET	876403 COMPL. LH BASE MOUNTING BRACKET	$109.10	1
0004	876616	COMPL. RH BASE MOUNTING BRACKET	876616 COMPL. RH BASE MOUNTING BRACKET	$109.10	1
0005	902823	COMPL. LH PYLON MOUNTING BRACKET	902823 COMPL. LH PYLON MOUNTING BRACKET	$67.38	1
0005	902841	COMPL. RH PYLON MOUNTING BRACKET	902841 COMPL. RH PYLON MOUNTING BRACKET	$67.38	1
0005	902823	COMPL. LH PYLON MOUNTING BRACKET	902823 COMPL. LH PYLON MOUNTING BRACKET	$67.38	1
0005	902841	COMPL. RH PYLON MOUNTING BRACKET	902841 COMPL. RH PYLON MOUNTING BRACKET	$67.38	1
0006	16286121	SCREW IN STOCK	16286121 SCREW M6 X 20 IN STOCK	$0.70 MSRP: ~~1.35~~ (48.1% off)	7
0006	16286121	SCREW IN STOCK	16286121 SCREW M6 X 18 IN STOCK	$0.70 MSRP: ~~1.35~~ (48.1% off)	20
0007	16286121	SCREW IN STOCK	16286121 SCREW M6 X 20 IN STOCK	$0.70 MSRP: ~~1.35~~ (48.1% off)	7
0007	16286121	SCREW IN STOCK	16286121 SCREW M6 X 20 IN STOCK	$0.70 MSRP: ~~1.35~~ (48.1% off)	7
0008	905706	ADJUSTMENT SHIM	905706 ADJUSTMENT SHIM Th. 1 mm	$10.57	4
0008	905706	ADJUSTMENT SHIM	905706 ADJUSTMENT SHIM Th. 1 mm	$10.57	4
0009	905667	ADJUSTMENT SHIM	905667 ADJUSTMENT SHIM Th. 1.5 mm	$10.57	4
0009	905667	ADJUSTMENT SHIM	905667 ADJUSTMENT SHIM Th. 1.5 mm	$10.57	4
0010	900885	ADJUSTMENT SHIM	900885 ADJUSTMENT SHIM Th. 1 mm	$6.73	16
0010	900885	ADJUSTMENT SHIM	900885 ADJUSTMENT SHIM Th. 1 mm	$6.73	16
0011	16287524	SCREW IN STOCK	16287524 SCREW M8 X 25 IN STOCK	$1.38	2
0011	16287524	SCREW IN STOCK	16287524 SCREW M8 X 25 IN STOCK	$1.38	2
0012	946823	ADJUSTMENT SHIM	946823 ADJUSTMENT SHIM Th. 1 mm	$6.05	18
0012	946823	ADJUSTMENT SHIM	946823 ADJUSTMENT SHIM Th. 1 mm	$6.05	18
0013	985877493	COMPL. RH REAR TRELLIS	985877493 COMPL. RH REAR TRELLIS	$272.77	1
0013	985877493	COMPL. RH REAR TRELLIS	985877493 COMPL. RH REAR TRELLIS	$272.77	1
0014	985877492	COMPL. LH REAR TRELLIS	985877492 COMPL. LH REAR TRELLIS	$272.77	1
0014	985877492	COMPL. LH REAR TRELLIS	985877492 COMPL. LH REAR TRELLIS	$272.77	1
0015	830381	EXTERNAL VERTICLE TRELLIS BRACKET	830381 EXTERNAL VERTICLE TRELLIS BRACKET	$10.73	2
0015	830381	EXTERNAL VERTICLE TRELLIS BRACKET	830381 EXTERNAL VERTICLE TRELLIS BRACKET	$10.73	2
0016	985877477	RH REAR FLANK TRELLIS	985877477 RH REAR FLANK TRELLIS	$882.51	1
0016	985877477	RH REAR FLANK TRELLIS	985877477 RH REAR FLANK TRELLIS	$882.51	1
0017	985877476	LH REAR FLANK TRELLIS	985877476 LH REAR FLANK TRELLIS	$882.51	1
0017	985877476	LH REAR FLANK TRELLIS	985877476 LH REAR FLANK TRELLIS	$882.51	1
0018	830370	UPPER BRACKET FOR REAR RH NODE	830370 UPPER BRACKET FOR REAR RH NODE	$11.38	1
0018	830370	UPPER BRACKET FOR REAR RH NODE	830370 UPPER BRACKET FOR REAR RH NODE	$11.38	1
0019	877549	UPPER BRACKET FOR REAR LH NODE	877549 UPPER BRACKET FOR REAR LH NODE	$20.29	1
0019	877549	UPPER BRACKET FOR REAR LH NODE	877549 UPPER BRACKET FOR REAR LH NODE	$20.29	1
0020	925914	COMPL. RH BRACKET	925914 COMPL. RH BRACKET	$64.17	1
0020	925914	COMPL. RH BRACKET	925914 COMPL. RH BRACKET	$64.17	1
0021	925913	COMPL. LH BRACKET	925913 COMPL. LH BRACKET	$64.17	1
0021	925913	COMPL. LH BRACKET	925913 COMPL. LH BRACKET	$64.17	1
0022	985877497	COMPL. RH AIR FILTER MOUNT	985877497 COMPL. RH AIR FILTER MOUNT	$401.13	1
0022	985877497	COMPL. RH AIR FILTER MOUNT	985877497 COMPL. RH AIR FILTER MOUNT	$401.13	1
0023	985877494	COMPL. LH AIR FILTER MOUNT	985877494 COMPL. LH AIR FILTER MOUNT	$401.13	1
0023	985877494	COMPL. LH AIR FILTER MOUNT	985877494 COMPL. LH AIR FILTER MOUNT	$401.13	1
0024	985830424	RH WHEELHOUSE BRACKET	985830424 RH WHEELHOUSE BRACKET	$134.77	1
0024	985830424	RH WHEELHOUSE BRACKET	985830424 RH WHEELHOUSE BRACKET	$134.77	1
0025	985830415	LH WHEELHOUSE BRACKET	985830415 LH WHEELHOUSE BRACKET	$134.77	1
0025	985830415	LH WHEELHOUSE BRACKET	985830415 LH WHEELHOUSE BRACKET	$134.77	1
0026	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	985830341 COMPL. RH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation	$272.77	1
0026	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	985830341 COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$272.77	1
0027	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	985925466 COMPL. LH BOX ELEMENT REINFORCEMENT TUBE Request ASM authorisation	$272.77	1
0027	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	985925466 COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$272.77	1
0028	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	985830380 FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$134.77	1
0028	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	985830380 FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$134.77	1
0029	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	985865666 FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$134.77	1
0029	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	985865666 FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$134.77	1
0030	803290	RH FRONT CORNER BRACKET	803290 RH FRONT CORNER BRACKET	$64.17	1
0030	865531	LH FRONT CORNER BRACKET	865531 LH FRONT CORNER BRACKET	$70.59	1
0030	803290	RH FRONT CORNER BRACKET	803290 RH FRONT CORNER BRACKET	$64.17	1
0030	865531	LH FRONT CORNER BRACKET	865531 LH FRONT CORNER BRACKET	$70.59	1
0031	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	985877489 COMPL. RH INTERCOOLER MOUNTING TUBE	$290.06	1
0031	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	985877489 COMPL. RH INTERCOOLER MOUNTING TUBE	$290.06	1
0032	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	985877488 COMPL. LH INTERCOOLER MOUNTING TUBE	$290.06	1
0032	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	985877488 COMPL. LH INTERCOOLER MOUNTING TUBE	$290.06	1
0033	877491	COMPL. RH ADJUSTER CUP	877491 COMPL. RH ADJUSTER CUP	$17.63	1
0033	877491	COMPL. RH ADJUSTER CUP	877491 COMPL. RH ADJUSTER CUP	$17.63	1
0034	877490	COMPL. LH ADJUSTER CUP	877490 COMPL. LH ADJUSTER CUP	$17.63	1
0034	877490	COMPL. LH ADJUSTER CUP	877490 COMPL. LH ADJUSTER CUP	$17.63	1
0035	830360	RH FLANK ADJUSTMENT BRACKET	830360 RH FLANK ADJUSTMENT BRACKET	$33.68	1
0035	830360	RH FLANK ADJUSTMENT BRACKET	830360 RH FLANK ADJUSTMENT BRACKET	$33.68	1
0036	830359	LH FLANK ADJUSTMENT BRACKET	830359 LH FLANK ADJUSTMENT BRACKET	$33.68	1
0036	830359	LH FLANK ADJUSTMENT BRACKET	830359 LH FLANK ADJUSTMENT BRACKET	$33.68	1
0037	910807	RH COMPARTMENT BLANKING PLATE	910807 RH COMPARTMENT BLANKING PLATE	$14.75	1
0037	910805	LH COMPARTMENT BLANKING PLATE	910805 LH COMPARTMENT BLANKING PLATE	$14.75	1
0037	910807	RH COMPARTMENT BLANKING PLATE	910807 RH COMPARTMENT BLANKING PLATE	$14.75	1
0037	910805	LH COMPARTMENT BLANKING PLATE	910805 LH COMPARTMENT BLANKING PLATE	$14.75	1
0038	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	985877500 COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$754.15	1
0038	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	985877500 COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$754.15	1
0039	14304824	SCREW	14304824 SCREW M6 X 50	$0.28	2
0039	14304824	SCREW	14304824 SCREW M6 X 50	$0.28	2
0040	12640624	WASHER IN STOCK	12640624 WASHER IN STOCK	$0.15 MSRP: ~~0.29~~ (48.3% off)	2
0040	12640624	WASHER IN STOCK	12640624 WASHER IN STOCK	$0.15 MSRP: ~~0.29~~ (48.3% off)	2
0041	830401	LOCK BRACKET THICKNESS	830401 LOCK BRACKET THICKNESS 1 mm	$10.73	3
0041	830401	LOCK BRACKET THICKNESS	830401 LOCK BRACKET THICKNESS 1 mm	$10.73	3
0042	909590	COMPL. STRUT MOUNTING BRACKET	909590 COMPL. STRUT MOUNTING BRACKET	$150.82	1
0042	909590	COMPL. STRUT MOUNTING BRACKET	909590 COMPL. STRUT MOUNTING BRACKET	$150.82	1
0043	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	877504 COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.49	1
0043	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	877504 COMPL. MOUNTING BRACKET FOR LH REAR COVER	$38.49	1
