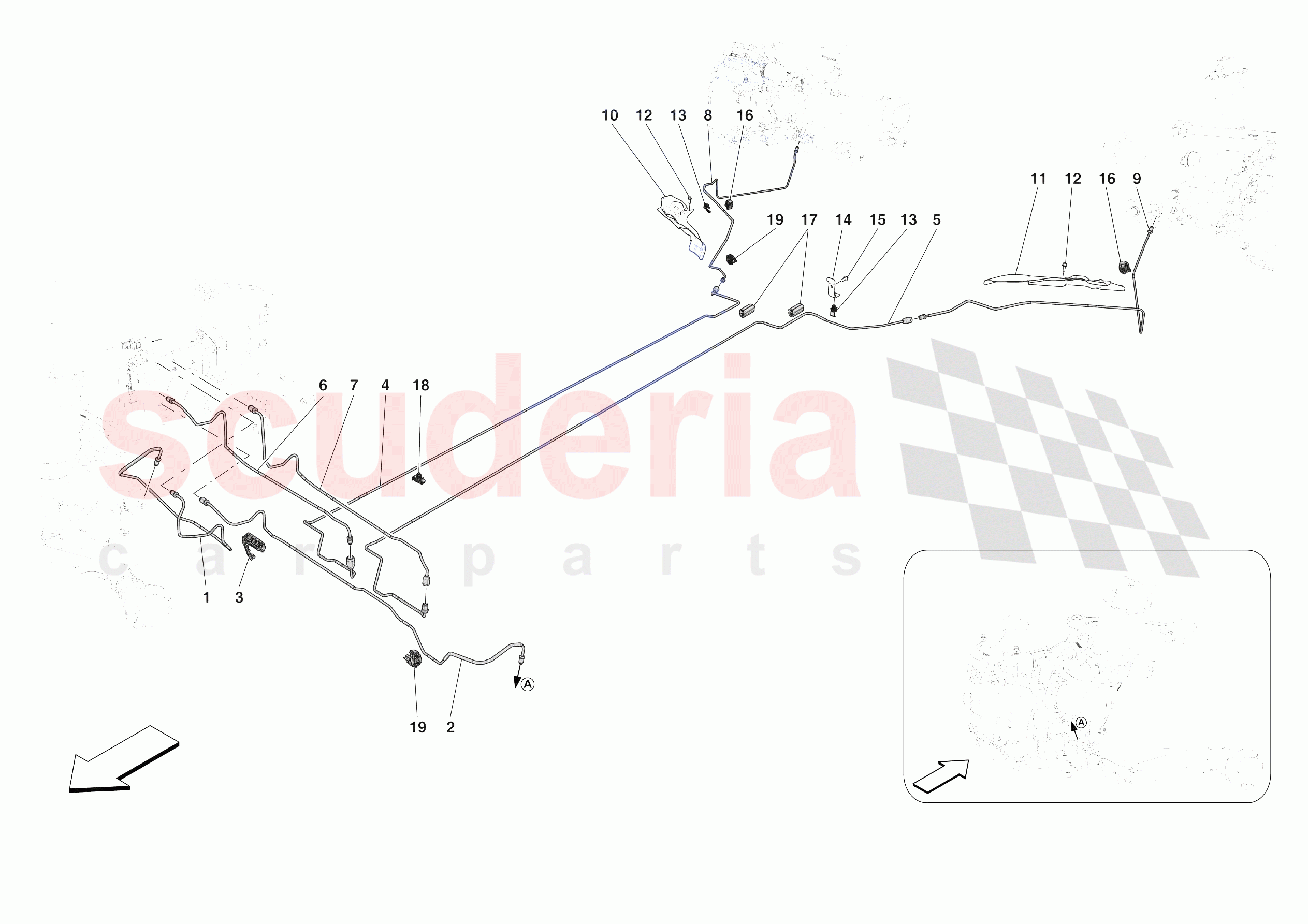

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	808247	FRONT RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895623	FRONT LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	861783	UNDERBODY REAR RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	861782	UNDERBODY REAR LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895627	REAR RH BRAKE PIPE TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895626	REAR LH BRAKE PIPE TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916735	REAR RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899289	REAR LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916553	RH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916554	LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	872669	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	872949	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	808247	FRONT RH BRAKE PIPE	808247 FRONT RH BRAKE PIPE	-	1	Enquire
0002	895623	FRONT LH BRAKE PIPE	895623 FRONT LH BRAKE PIPE	-	1	Enquire
0003	234286	CLIP	234286 CLIP 4 compartments	-	1	Enquire
0004	861783	UNDERBODY REAR RH BRAKE PIPE	861783 UNDERBODY REAR RH BRAKE PIPE	-	1	Enquire
0005	861782	UNDERBODY REAR LH BRAKE PIPE	861782 UNDERBODY REAR LH BRAKE PIPE	-	1	Enquire
0006	895627	REAR RH BRAKE PIPE TO DISCONNECTOR	895627 REAR RH BRAKE PIPE TO DISCONNECTOR	-	1	Enquire
0007	895626	REAR LH BRAKE PIPE TO DISCONNECTOR	895626 REAR LH BRAKE PIPE TO DISCONNECTOR	-	1	Enquire
0008	916735	REAR RH BRAKE PIPE	916735 REAR RH BRAKE PIPE	-	1	Enquire
0009	899289	REAR LH BRAKE PIPE	899289 REAR LH BRAKE PIPE	-	1	Enquire
0010	916553	RH HEAT SHIELD	916553 RH HEAT SHIELD	-	1	Enquire
0011	916554	LH HEAT SHIELD	916554 LH HEAT SHIELD	-	1	Enquire
0012	85833700	SCREW	85833700 SCREW M5 X 16	-	1	Enquire
0013	291408	CLIP	291408 CLIP	-	1	Enquire
0014	872669	BRACKET	872669 BRACKET	-	1	Enquire
0015	16285014	SCREW	16285014 SCREW M5 X 16	-	1	Enquire
0016	234284	CLIP	234284 CLIP 1 compartment-	-	1	Enquire
0017	262737	RUBBER RETAINER	262737 RUBBER RETAINER	-	1	Enquire
0018	872949	CLIP	872949 CLIP	-	1	Enquire
0019	234285	CLIP	234285 CLIP 2 compartments	-	1	Enquire
