Rear Suspension - Arms

Ferrari SF90 XX Spider Europe RH

Find Your Part

Ferrari SF90 XX Spider Europe RH - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
885450 COMPL. LH REAR HUB CARRIER Enquire To Order
885451 COMPL. RH REAR HUB CARRIER Enquire To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.91 IN STOCK
Photo Part No Description Price (each) Stock
14496721 WASHER $0.10 IN STOCK
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $320.90 IN STOCK
Photo Part No Description Price (each) Stock
15541434 SCREW $2.14 IN STOCK
Photo Part No Description Price (each) Stock
259687 REAR UPPER ARM $449.27 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.78 ARRIVING SOON
Photo Part No Description Price (each) Stock
312826 WASHER $0.45 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
104114 NUT $0.39 IN STOCK
Photo Part No Description Price (each) Stock
896443 COMPL. LOWER LH REAR ARM Enquire To Order
896445 COMPL. LOWER RH REAR ARM Enquire To Order
Photo Part No Description Price (each) Stock
14507987 PLUG $1.83 IN STOCK
Photo Part No Description Price (each) Stock
238063 NUT $4.17 IN STOCK
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 ARRIVING SOON
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $15.87 IN STOCK
Photo Part No Description Price (each) Stock
238258 SCREW $31.74 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $24.62 IN STOCK
Photo Part No Description Price (each) Stock
333338 ADJUSTMENT SHIM $3.06 To Order
333339 ADJUSTMENT SHIM $3.45 To Order
333340 CAMBER ADJUSTMENT SHIM $4.49 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
262544 ADJUSTER SHIM $9.11 IN STOCK
238693 ADJUSTMENT SHIM $5.40 IN STOCK
238881 CAMBER SPACER 1.5MM $5.40 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.84 IN STOCK
Photo Part No Description Price (each) Stock
984051 COMPL. REAR MOTION SENSOR $196.80 To Order
Photo Part No Description Price (each) Stock
340273 BALL JOINT $54.54 To Order
Photo Part No Description Price (each) Stock
984044 POTENTIOMETER LINK $160.44 To Order
Photo Part No Description Price (each) Stock
814254 NUT $0.60 To Order
Photo Part No Description Price (each) Stock
831082 RH REAR FASTENER BRACKET FOR TRAVEL SENSOR $20.84 To Order
831081 LH REAR FASTENER BRACKET FOR TRAVEL SENSOR $20.84 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.79 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
934592 LH REAR AXLE SHAFT GAITER SHIELD $83.42 To Order
871830 RH REAR AXLE SHAFT GAITER SHIELD $46.52 To Order
Photo Part No Description Price (each) Stock
16285127 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
336026 ABS SENSOR $77.47 To Order
View All

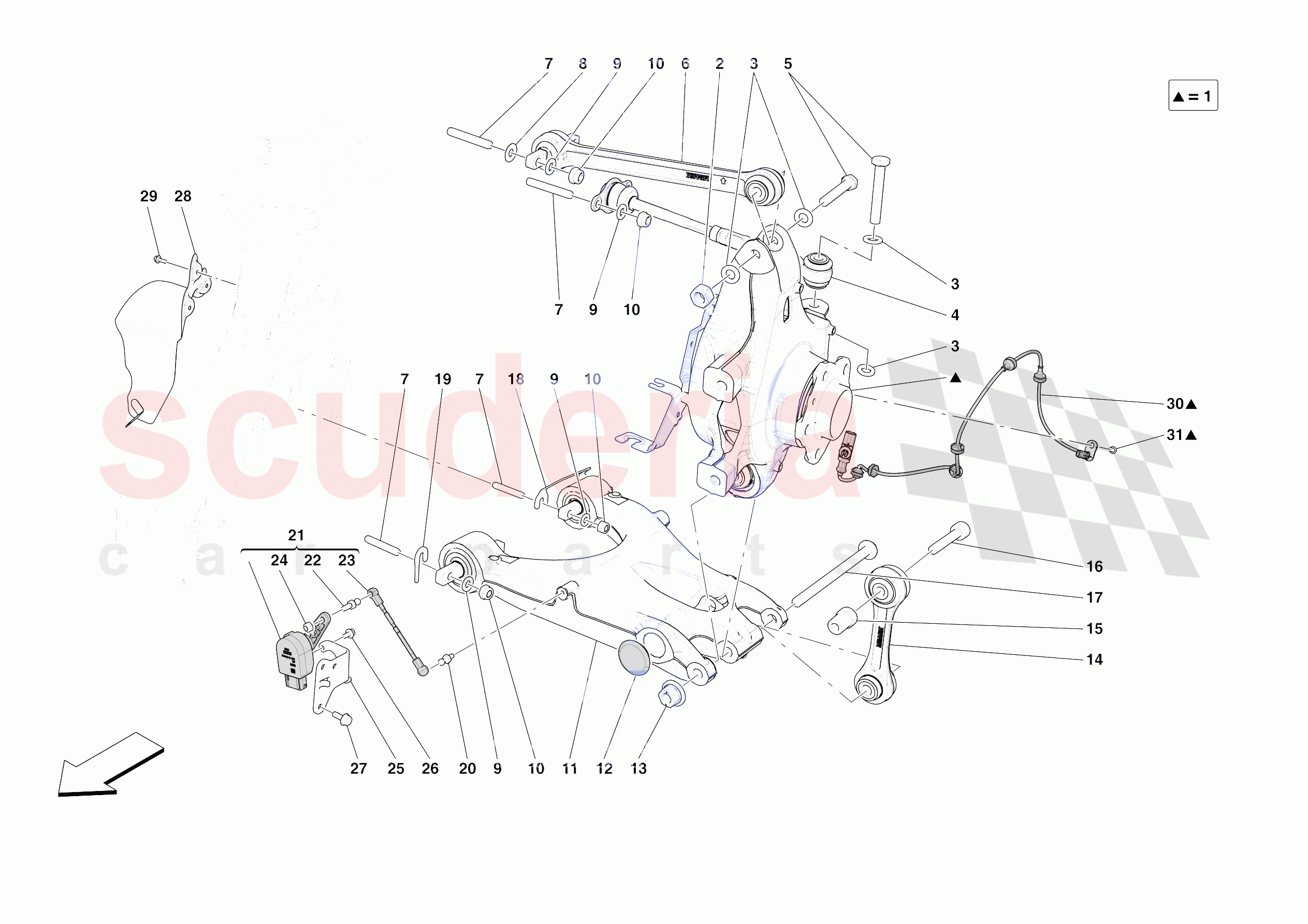

REAR SUSPENSION - ARMS of Ferrari Ferrari SF90 XX Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 885450
COMPL. LH REAR HUB CARRIER 		- 1 Enquire
0001 885451
COMPL. RH REAR HUB CARRIER 		- 1 Enquire
0002 203666
NUT
IN STOCK 		$0.91 (54.5% off) 4
0003 14496721
WASHER
IN STOCK 		$0.10 8
0004 245161
TIE ROD REAR SUSPENSION
IN STOCK 		$320.90 (28.7% off) 2
0005 15541434
SCREW
M12 X 1.25 X 80
IN STOCK 		$2.14 (28.2% off) 4
0006 259687
REAR UPPER ARM
IN STOCK 		$449.27 (27.4% off) 2
0007 264528
THREADED ROD
ARRIVING SOON 		$3.78 (4.3% off) 12
0008 312826
WASHER 		$0.45 4
0009 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2
IN STOCK 		$0.06 12
0010 104114
NUT
IN STOCK 		$0.39 (22% off) 12
0011 896443
COMPL. LOWER LH REAR ARM 		- 1 Enquire
0011 896445
COMPL. LOWER RH REAR ARM 		- 1 Enquire
0012 14507987
PLUG
IN STOCK 		$1.83 (25.3% off) 4
0013 238063
NUT
IN STOCK 		$4.17 (24.2% off) 2
0014 259688
ANTI-ROTATION LINKAGE
ARRIVING SOON 		$192.54 2
0015 222956
COMPENSATOR RING
IN STOCK 		$15.87 2
0016 238258
SCREW
M12 X 1.25 X 75
IN STOCK 		$31.74 2
0017 238656
SPECIAL SCREW
M14 X 1.5 X 210
IN STOCK 		$24.62 (10.1% off) 2
0018 333338
ADJUSTMENT SHIM
Th. 0.5 mm 		$3.06 2
0018 333339
ADJUSTMENT SHIM
Th. 1 mm 		$3.45 2
0018 333340
CAMBER ADJUSTMENT SHIM
Th. 1.5 mm
IN STOCK 		$4.49 2
0018 333341
ADJUSTMENT SHIM
Th. 2 mm 		$5.43 2
0018 333342
ADJUSTMENT SHIM
Th. 2.5 mm 		$6.53 2
0018 333343
ADJUSTMENT SHIM
Th. 3 mm 		$7.52 2
0018 333344
ADJUSTMENT SHIM
Th. 3.5 mm 		$8.72 2
0018 333345
ADJUSTMENT SHIM
Th. 4 mm 		$9.81 2
0019 262544
ADJUSTER SHIM
Th. 0.5 mm
IN STOCK 		$9.11 4
0019 238693
ADJUSTMENT SHIM
Th. 1 mm
IN STOCK 		$5.40 (13.6% off) 4
0019 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm
IN STOCK 		$5.40 (12.2% off) 4
0019 238694
ADJUSTMENT SHIM
Th. 2 mm
IN STOCK 		$5.24 (14.8% off) 4
0019 238882
ADJUSTMENT SHIM
Th. 2.5 mm
IN STOCK 		$5.24 (16.2% off) 4
0019 238883
ADJUSTMENT SHIM
Th. 3 mm
IN STOCK 		$5.24 (16.2% off) 4
0019 238884
ADJUSTMENT SHIM
Th. 3.5 mm
IN STOCK 		$5.24 (16.2% off) 4
0019 238885
CAMBER SPACER 4MM
Th. 4 mm
IN STOCK 		$5.40 (13.6% off) 4
0020 343376
BALL JOINT
IN STOCK 		$20.84 2
0021 984051
COMPL. REAR MOTION SENSOR 		$196.80 2
0022 340273
BALL JOINT 		$54.54 2
0023 984044
POTENTIOMETER LINK 		$160.44 2
0024 814254
NUT 		$0.60 2
0025 831082
RH REAR FASTENER BRACKET FOR TRAVEL SENSOR
Version with lift system 		$20.84 1
0025 831081
LH REAR FASTENER BRACKET FOR TRAVEL SENSOR
Version with lift system 		$20.84 1
0026 16284934
FLANGED SCREW
M5 X 10
IN STOCK 		$0.79 4
0027 86574700
SCREW
M6 X 16 		$0.68 4
0028 934592
LH REAR AXLE SHAFT GAITER SHIELD 		$83.42 1
0028 871830
RH REAR AXLE SHAFT GAITER SHIELD 		$46.52 1
0029 16285127
SCREW
M5 X 16
IN STOCK 		$0.58 7
0030 336026
ABS SENSOR 		$77.47 2
