Front Suspension - Callipers And Discs

Ferrari SF90 XX Spider Europe RH

Find Your Part

Ferrari SF90 XX Spider Europe RH - FRONT SUSPENSION - CALLIPERS AND DISCS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
899898 COMPLETE RH FRONT CALIPER Enquire To Order
890786 COMPLETE RH FRONT CALIPER Enquire To Order
890716 COMPLETE L.H. FRONT CALIPER Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
195167 SCREW M12 X 1.5 X 95 Enquire To Order
Photo Part No Description Price (each) Stock
833468 FRONT BRAKE DISC Enquire To Order
843297 FRONT BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
321236 FRONT RH DISC SHIELD Enquire To Order
321235 FRONT LH DISC SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
228132 SPRING WASHER Enquire To Order
Photo Part No Description Price (each) Stock
228131 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
843130 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE Enquire To Order
843127 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE Enquire To Order
Photo Part No Description Price (each) Stock
777000 BRAKE HOSE Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
956359 RH FRONT BRAKE HOSE MOUNTING BRACKET Enquire To Order
956357 LH FRONT BRAKE HOSE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
877586 RH FRONT BRAKE BRACKET Enquire To Order
877584 LH FRONT BRAKE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
326837 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
918784 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
310942 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
876365 COMPL. RH FRONT BRAKE AIR DUCT Enquire To Order
876350 COMPL. LH FRONT BRAKE AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
957600 FASTENER PLATE FOR RH FRONT DUCT Enquire To Order
957592 FASTENER PLATE FOR LH FRONT DUCT Enquire To Order
Photo Part No Description Price (each) Stock
957591 FASTENER PLATE FOR FRONT DUCT Enquire To Order
Photo Part No Description Price (each) Stock
84487600 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
876349 CABLE BRACKET ON RH FRONT SUSPENSION ARM Enquire To Order
876335 CABLE BRACKET ON LH FRONT SUSPENSION ARM Enquire To Order
Photo Part No Description Price (each) Stock
16288434 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14058421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
303385 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
291408 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
70007774 SET OF FRONT PADS WITH SPRING Enquire To Order
55004277 SET OF FRONT PADS WITH SPRING Enquire To Order
Photo Part No Description Price (each) Stock
215665 BLEED SCREW Enquire To Order
Photo Part No Description Price (each) Stock
215666 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
70003492 DUST GAITER KIT Enquire To Order
Photo Part No Description Price (each) Stock
70004533 SPRING AND PIN KIT Enquire To Order
View All

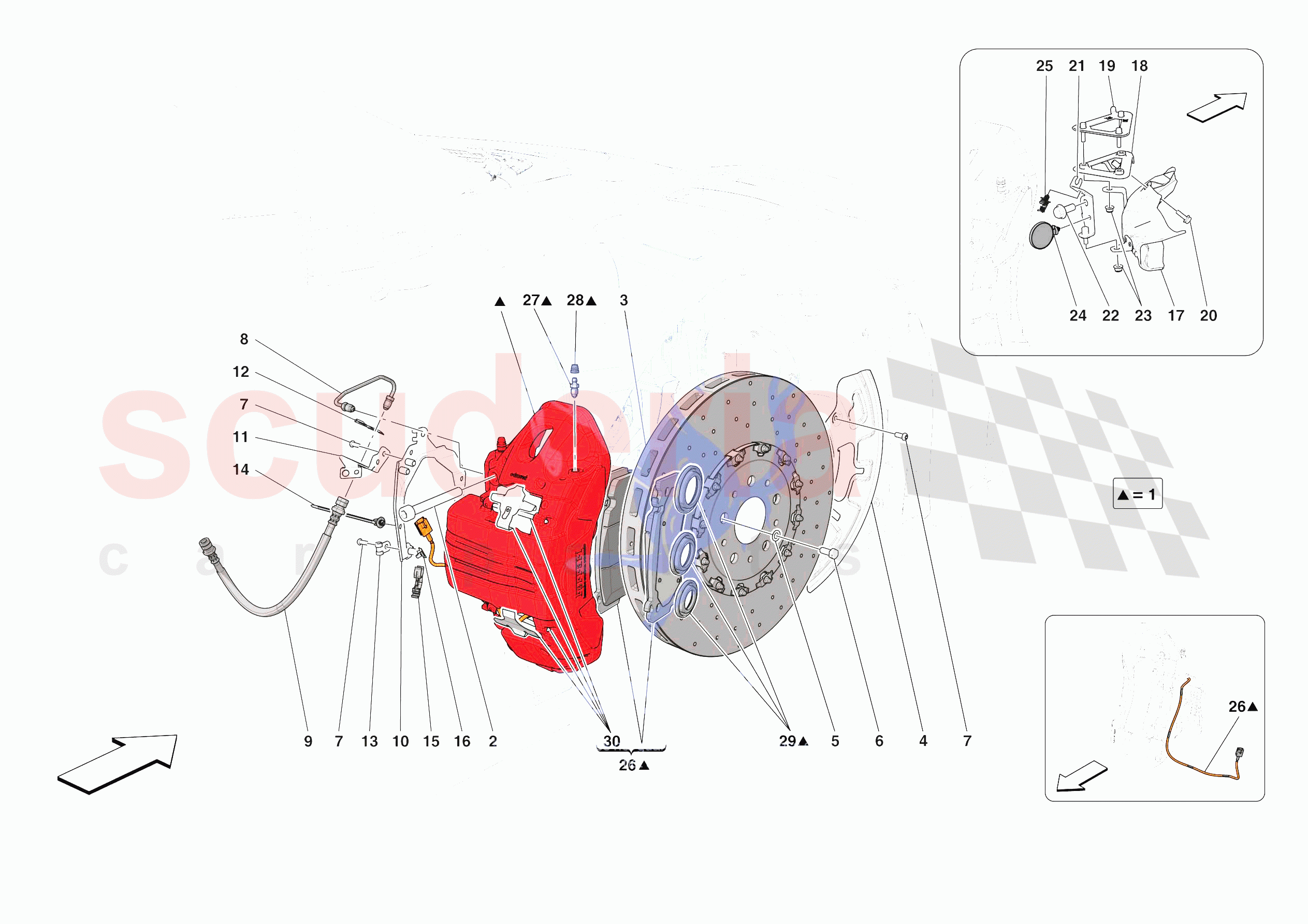

FRONT SUSPENSION - CALLIPERS AND DISCS of Ferrari Ferrari SF90 XX Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 899898
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Anodised black- -With bedded-in pads 		- 1 Enquire
0001 890786
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Yellow- -With bedded-in pads 		- 1 Enquire
0001 890716
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Aluminium- -With bedded-in pads 		- 1 Enquire
0001 890839
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Scuderia red- -With bedded-in pads 		- 1 Enquire
0001 891033
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Gloss black- -With bedded-in pads 		- 1 Enquire
0001 890767
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Gold- -With bedded-in pads 		- 1 Enquire
0001 890772
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Grigio Silverstone- -With bedded-in pads 		- 1 Enquire
0001 890758
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Aluminium- -With bedded-in pads 		- 1 Enquire
0001 890840
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Rosso Corsa- -With bedded-in pads 		- 1 Enquire
0001 890766
COMPLETE RH FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Blue- -With bedded-in pads 		- 1 Enquire
0001 899625
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Anodised black- -With bedded-in pads 		- 1 Enquire
0001 890742
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Rosso Corsa- -With bedded-in pads 		- 1 Enquire
0001 890718
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Gold- -With bedded-in pads 		- 1 Enquire
0001 890743
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Gloss black- -With bedded-in pads 		- 1 Enquire
0001 890721
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Yellow- -With bedded-in pads 		- 1 Enquire
0001 890722
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Scuderia red- -With bedded-in pads 		- 1 Enquire
0001 890717
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Blue- -With bedded-in pads 		- 1 Enquire
0001 890719
COMPLETE L.H. FRONT CALIPER
For Washington market vehicles, also order brake pad set p/n 55004277; Grigio Silverstone- -With bedded-in pads 		- 1 Enquire
0002 195167
SCREW M12 X 1.5 X 95
M12 X 1.5 X 95 		- 2 Enquire
0003 833468
FRONT BRAKE DISC
Bedded-in 		- 2 Enquire
0003 843297
FRONT BRAKE DISC
Bedded-in 		- 2 Enquire
0004 321236
FRONT RH DISC SHIELD 		- 1 Enquire
0004 321235
FRONT LH DISC SHIELD 		- 1 Enquire
0005 228132
SPRING WASHER 		- 4 Enquire
0006 228131
SCREW
M8 X 20 		- 4 Enquire
0007 250657
SCREW M6 X 14
M6 X 14 		- 14 Enquire
0008 843130
COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE 		- 1 Enquire
0008 843127
COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE 		- 1 Enquire
0009 777000
BRAKE HOSE
ARRIVING SOON 		- 2 Enquire
0010 956359
RH FRONT BRAKE HOSE MOUNTING BRACKET 		- 1 Enquire
0010 956357
LH FRONT BRAKE HOSE MOUNTING BRACKET 		- 1 Enquire
0011 877586
RH FRONT BRAKE BRACKET 		- 1 Enquire
0011 877584
LH FRONT BRAKE BRACKET 		- 1 Enquire
0012 326837
CLIP 		- 4 Enquire
0013 10440890
BRACKET WITH SHEATH 		- 2 Enquire
0014 918784
CLAMP 		- 2 Enquire
0015 310942
CLIP
3 compartments 		- 2 Enquire
0016 303385
CLIP 		- 5 Enquire
0017 876365
COMPL. RH FRONT BRAKE AIR DUCT 		- 1 Enquire
0017 876350
COMPL. LH FRONT BRAKE AIR DUCT 		- 1 Enquire
0018 957600
FASTENER PLATE FOR RH FRONT DUCT 		- 1 Enquire
0018 957592
FASTENER PLATE FOR LH FRONT DUCT 		- 1 Enquire
0019 957591
FASTENER PLATE FOR FRONT DUCT 		- 2 Enquire
0020 84487600
SCREW
M6 X 20 		- 2 Enquire
0021 876349
CABLE BRACKET ON RH FRONT SUSPENSION ARM 		- 1 Enquire
0021 876335
CABLE BRACKET ON LH FRONT SUSPENSION ARM 		- 1 Enquire
0022 16288434
SCREW
M10 X 1.25 X 25 		- 2 Enquire
0023 14058421
NUT 		- 8 Enquire
0024 303385
CLIP
170 mm 		- 2 Enquire
0025 291408
CLIP 		- 2 Enquire
0026 70007774
SET OF FRONT PADS WITH SPRING
With bedded-in pads 		- 1 Enquire
0026 55004277
SET OF FRONT PADS WITH SPRING
With bedded-in pads 		- 1 Enquire
0027 215665
BLEED SCREW 		- 4 Enquire
0028 215666
PROTECTIVE CAP 		- 4 Enquire
0029 70003492
DUST GAITER KIT 		- 1 Enquire
0030 70004533
SPRING AND PIN KIT 		- 2 Enquire
