REAR SUSPENSION - CALLIPERS AND DISCS of Ferrari Ferrari SF90 XX Spider Europe

View All

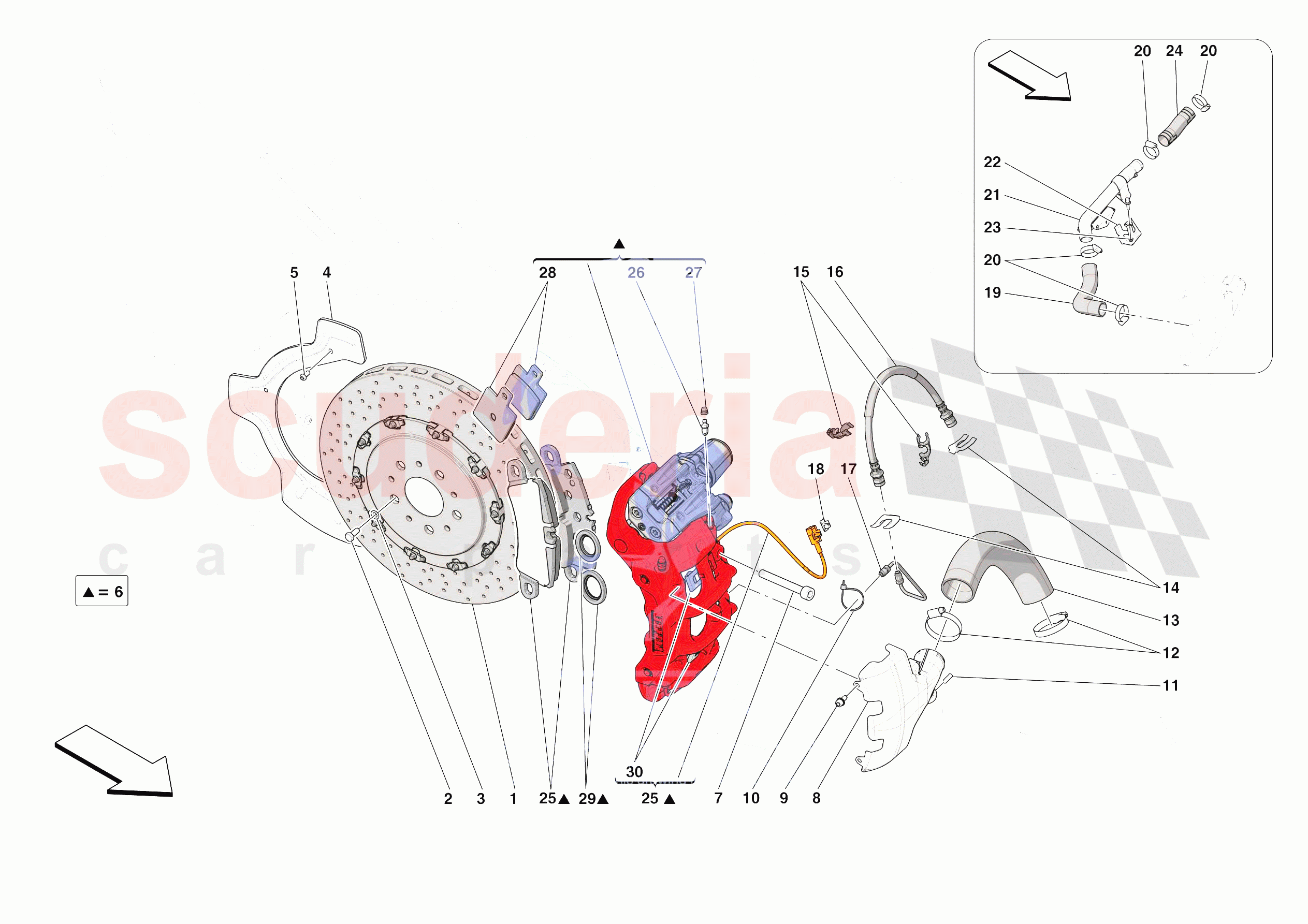

Ferrari SF90 XX Spider Europe - REAR SUSPENSION - CALLIPERS AND DISCS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	833469	REAR BRAKE DISC	Enquire	To Order
	843379	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916493	RH REAR DISC SHIELD	Enquire	To Order
	916464	LH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	798291	COMPL. RH REAR CALIPER	Enquire	To Order
	891057	COMPL. RH REAR CALIPER	Enquire	To Order
	891070	COMPL. RH REAR CALIPER	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894401	RH REAR CALIPER HOUSING COVER	Enquire	To Order
	894400	LH REAR CALIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11499924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	817210	AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	977797	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	889510	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	889508	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	895181	AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894408	PIPE ON RH ARM	Enquire	To Order
	972006	PIPE ON RH ARM	Enquire	To Order
	894407	PIPE ON LH ARM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	944557	COLLAR FASTENING PIPE ON RH ARM	Enquire	To Order
	944556	COLLAR FASTENING PIPE ON LH ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	817224	AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70007775	REAR PAD SET WITH SPRING	Enquire	To Order
	55004285	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003667	SET OF EPB PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70005108	SPRING KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	833469	REAR BRAKE DISC	833469 REAR BRAKE DISC Bedded-in	-	2	Enquire
0001	843379	REAR BRAKE DISC	843379 REAR BRAKE DISC Bedded-in	-	2	Enquire
0002	228131	SCREW	228131 SCREW M8 X 20	-	4	Enquire
0003	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
0004	916493	RH REAR DISC SHIELD	916493 RH REAR DISC SHIELD For Washington market vehicles, also order brake pad set p/n 55004285	-	1	Enquire
0004	916464	LH REAR DISC SHIELD	916464 LH REAR DISC SHIELD For Washington market vehicles, also order brake pad set p/n 55004285	-	1	Enquire
0005	250657	SCREW M6 X 14	250657 SCREW M6 X 14 For Washington market vehicles, also order brake pad set p/n 55004285; M6 X 14	-	3	Enquire
0006	798291	COMPL. RH REAR CALIPER	798291 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Anodised black- -With bedded-in pads	-	1	Enquire
0006	891057	COMPL. RH REAR CALIPER	891057 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Aluminium- -With bedded-in pads	-	1	Enquire
0006	891070	COMPL. RH REAR CALIPER	891070 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Blue- -With bedded-in pads	-	1	Enquire
0006	891078	COMPL. RH REAR CALIPER	891078 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Grigio Silverstone- -With bedded-in pads	-	1	Enquire
0006	891079	COMPL. RH REAR CALIPER	891079 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Yellow- -With bedded-in pads	-	1	Enquire
0006	891082	COMPL. RH REAR CALIPER	891082 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Gloss black- -With bedded-in pads	-	1	Enquire
0006	891072	COMPL. RH REAR CALIPER	891072 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Gold- -With bedded-in pads	-	1	Enquire
0006	891081	COMPL. RH REAR CALIPER	891081 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Rosso Corsa- -With bedded-in pads	-	1	Enquire
0006	891080	COMPL. RH REAR CALIPER	891080 COMPL. RH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Scuderia red- -With bedded-in pads	-	1	Enquire
0006	798290	COMPL. LH REAR CALIPER	798290 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Anodised black- -With bedded-in pads	-	1	Enquire
0006	891046	COMPL. LH REAR CALIPER	891046 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Aluminium- -With bedded-in pads	-	1	Enquire
0006	891048	COMPL. LH REAR CALIPER	891048 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Blue- -With bedded-in pads	-	1	Enquire
0006	891050	COMPL. LH REAR CALIPER	891050 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Grigio Silverstone- -With bedded-in pads	-	1	Enquire
0006	891051	COMPL. LH REAR CALIPER	891051 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Yellow- -With bedded-in pads	-	1	Enquire
0006	891054	COMPL. LH REAR CALIPER	891054 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Gloss black- -With bedded-in pads	-	1	Enquire
0006	891049	COMPL. LH REAR CALIPER	891049 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Gold- -With bedded-in pads	-	1	Enquire
0006	891053	COMPL. LH REAR CALIPER	891053 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Rosso Corsa- -With bedded-in pads	-	1	Enquire
0006	891052	COMPL. LH REAR CALIPER	891052 COMPL. LH REAR CALIPER For Washington market vehicles, also order brake pad set p/n 55004285; Scuderia red- -With bedded-in pads	-	1	Enquire
0007	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 95	-	2	Enquire
0008	894401	RH REAR CALIPER HOUSING COVER	894401 RH REAR CALIPER HOUSING COVER	-	1	Enquire
0008	894400	LH REAR CALIPER HOUSING COVER	894400 LH REAR CALIPER HOUSING COVER	-	1	Enquire
0009	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	6	Enquire
0010	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
0011	11499924	STUD BOLT	11499924 STUD BOLT	-	2	Enquire
0012	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
0013	817210	AIR DELIVERY PIPE	817210 AIR DELIVERY PIPE	-	2	Enquire
0014	116374	CLIP	116374 CLIP	-	4	Enquire
0015	310942	CLIP	310942 CLIP 3 compartments	-	4	Enquire
0016	977797	HOSE	977797 HOSE Replace as a pair	-	2	Enquire
0017	889510	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	889510 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
0017	889508	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	889508 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
0018	303385	CLIP	303385 CLIP	-	2	Enquire
0019	895181	AIR DELIVERY PIPE	895181 AIR DELIVERY PIPE	-	2	Enquire
0020	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	8	Enquire
0021	894408	PIPE ON RH ARM	894408 PIPE ON RH ARM No longer supplied - Replaced by 972006	-	1	Enquire
0021	972006	PIPE ON RH ARM	972006 PIPE ON RH ARM	-	1	Enquire
0021	894407	PIPE ON LH ARM	894407 PIPE ON LH ARM No longer supplied - Replaced by 972005	-	1	Enquire
0021	972005	PIPE ON LH ARM	972005 PIPE ON LH ARM	-	1	Enquire
0022	944557	COLLAR FASTENING PIPE ON RH ARM	944557 COLLAR FASTENING PIPE ON RH ARM	-	1	Enquire
0022	944556	COLLAR FASTENING PIPE ON LH ARM	944556 COLLAR FASTENING PIPE ON LH ARM	-	1	Enquire
0023	15896470	NUT	15896470 NUT M5	-	2	Enquire
0024	817224	AIR DELIVERY PIPE	817224 AIR DELIVERY PIPE	-	2	Enquire
0025	70007775	REAR PAD SET WITH SPRING	70007775 REAR PAD SET WITH SPRING With bedded-in pads	-	1	Enquire
0025	55004285	REAR PAD SET WITH SPRING	55004285 REAR PAD SET WITH SPRING With bedded-in pads	-	1	Enquire
0026	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
0027	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
0028	70003667	SET OF EPB PADS	70003667 SET OF EPB PADS	-	1	Enquire
0029	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
0030	70005108	SPRING KIT	70005108 SPRING KIT	-	1	Enquire
