Cooling System Pipes

Ferrari SF90 XX Spider Europe

Find Your Part

Ferrari SF90 XX Spider Europe - COOLING SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
848528 UNDERBODY WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
262114 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
867587 HOSE TO UNDERBODY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
867586 RIGID 3-WAY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
867585 RADIATOR OUTLET HOSE Enquire To Order
Photo Part No Description Price (each) Stock
790841 RETURN HOSE TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
262383 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
827819 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
857838 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
899141 UNDERBODY WATER DELIVERY PIPE Enquire To Order
848510 UNDERBODY WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
962070 RADIATOR INLET HOSE Enquire To Order
Photo Part No Description Price (each) Stock
790835 DELIVERY SLEEVE FROM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
867646 BRACKET FOR RH UNDERBODY WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
867645 BRACKET FOR LH UNDERBODY WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
790848 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
872507 UPPER MALE BRACKET FOR UNDERBODY RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
848900 UPPER FEMALE BRACKET FOR UNDERBODY RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
86574700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16281827 SCREW M5 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
790850 LOWER RETAINER BLOCK FOR UNDERBODY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
872509 UPPER RETAINER BLOCK FOR UNDERBODY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
292835 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
868206 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
915426 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
867589 UNDERBODY RADIATOR SELF-BLEEDING PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13125470 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
817218 VENT HOSE FROM RADIATOR TO DISCONNECTER UNION Enquire To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
917171 VENT HOSE FROM DISCONNECTOR TO 3-WAY Enquire To Order
Photo Part No Description Price (each) Stock
85141400 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
159918 CLIP SET Enquire To Order
Photo Part No Description Price (each) Stock
797723 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR Enquire To Order
View All

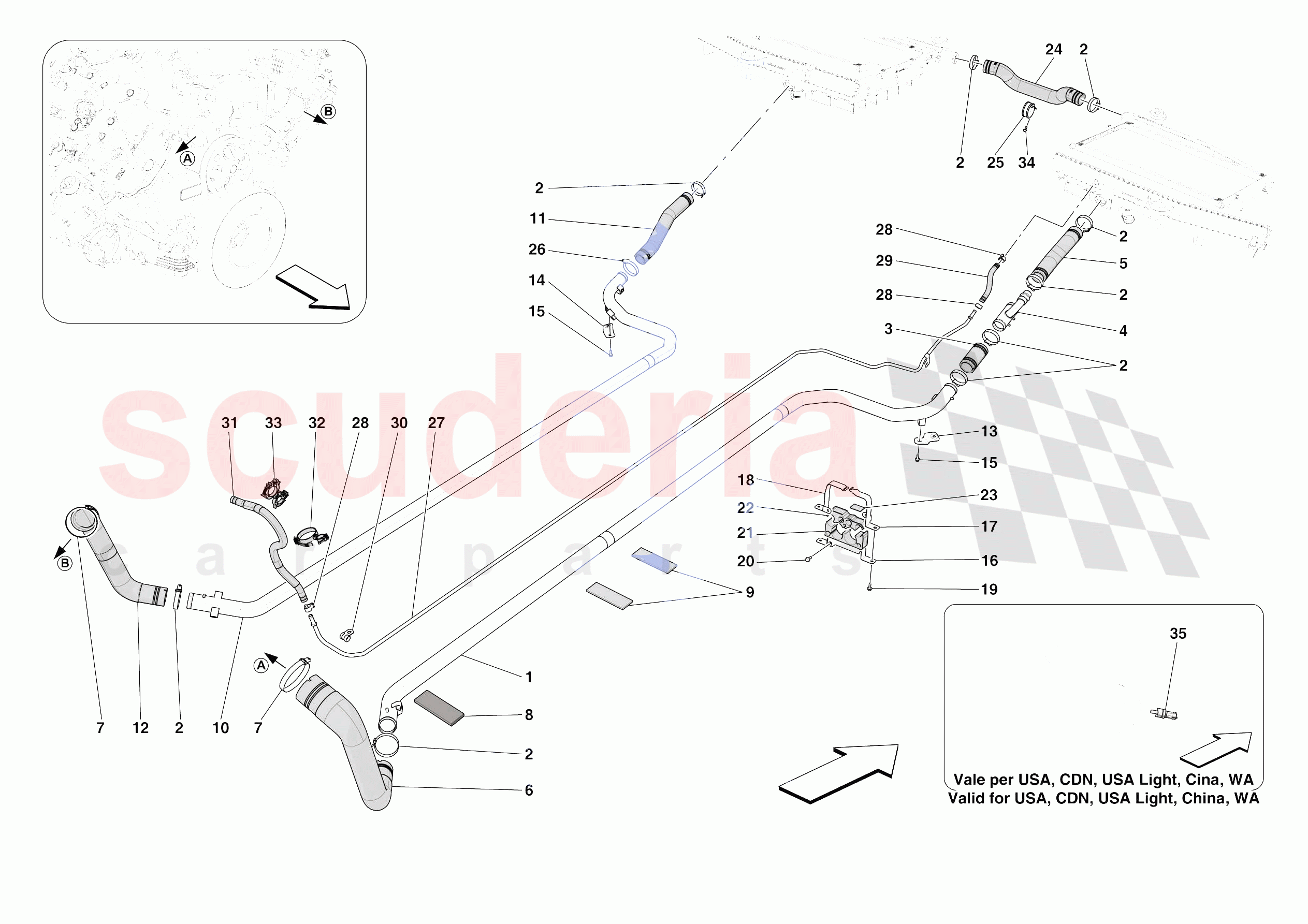

COOLING SYSTEM PIPES of Ferrari Ferrari SF90 XX Spider Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 848528
UNDERBODY WATER RETURN PIPE 		- 1 Enquire
0002 262114
COLLAR 		- 9 Enquire
0003 867587
HOSE TO UNDERBODY PIPE 		- 1 Enquire
0004 867586
RIGID 3-WAY PIPE 		- 1 Enquire
0005 867585
RADIATOR OUTLET HOSE 		- 1 Enquire
0006 790841
RETURN HOSE TO PUMP 		- 1 Enquire
0007 262383
COLLAR 		- 2 Enquire
0008 827819
BUSH 		- 1 Enquire
0009 857838
BUSH 		- 2 Enquire
0010 899141
UNDERBODY WATER DELIVERY PIPE 		- 1 Enquire
0010 848510
UNDERBODY WATER DELIVERY PIPE 		- 1 Enquire
0011 962070
RADIATOR INLET HOSE 		- 1 Enquire
0012 790835
DELIVERY SLEEVE FROM PUMP 		- 1 Enquire
0013 867646
BRACKET FOR RH UNDERBODY WATER PIPE 		- 1 Enquire
0014 867645
BRACKET FOR LH UNDERBODY WATER PIPE 		- 1 Enquire
0015 85833700
SCREW
M5 X 16 		- 5 Enquire
0016 790848
LOWER BRACKET FOR UNDERBODY PILLORY BLOCK 		- 3 Enquire
0017 872507
UPPER MALE BRACKET FOR UNDERBODY RETAINER BLOCK 		- 3 Enquire
0018 848900
UPPER FEMALE BRACKET FOR UNDERBODY RETAINER BLOCK 		- 3 Enquire
0019 86574700
SCREW
M5 X 16 		- 6 Enquire
0020 16281827
SCREW M5 X 14
M5 X 14 		- 6 Enquire
0021 790850
LOWER RETAINER BLOCK FOR UNDERBODY PIPE 		- 3 Enquire
0022 872509
UPPER RETAINER BLOCK FOR UNDERBODY PIPE 		- 3 Enquire
0023 292835
BUSH 		- 3 Enquire
0024 868206
HOSE 		- 1 Enquire
0025 915426
BRACKET WITH SHEATH 		- 1 Enquire
0026 296781
COLLAR 30-45MM
ARRIVING SOON 		- 1 Enquire
0027 867589
UNDERBODY RADIATOR SELF-BLEEDING PIPE 		- 1 Enquire
0028 13125470
COLLAR 		- 3 Enquire
0029 817218
VENT HOSE FROM RADIATOR TO DISCONNECTER UNION 		- 1 Enquire
0030 10441490
BRACKET WITH SHEATH 		- 1 Enquire
0031 917171
VENT HOSE FROM DISCONNECTOR TO 3-WAY 		- 1 Enquire
0032 85141400
CLIP 		- 1 Enquire
0033 159918
CLIP SET 		- 1 Enquire
0034 797723
SCREW
M5 X 12 		- 1 Enquire
0035 180137
TEMPERATURE SENSOR 		- 1 Enquire
