AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari SF90 XX Spider Europe

View All

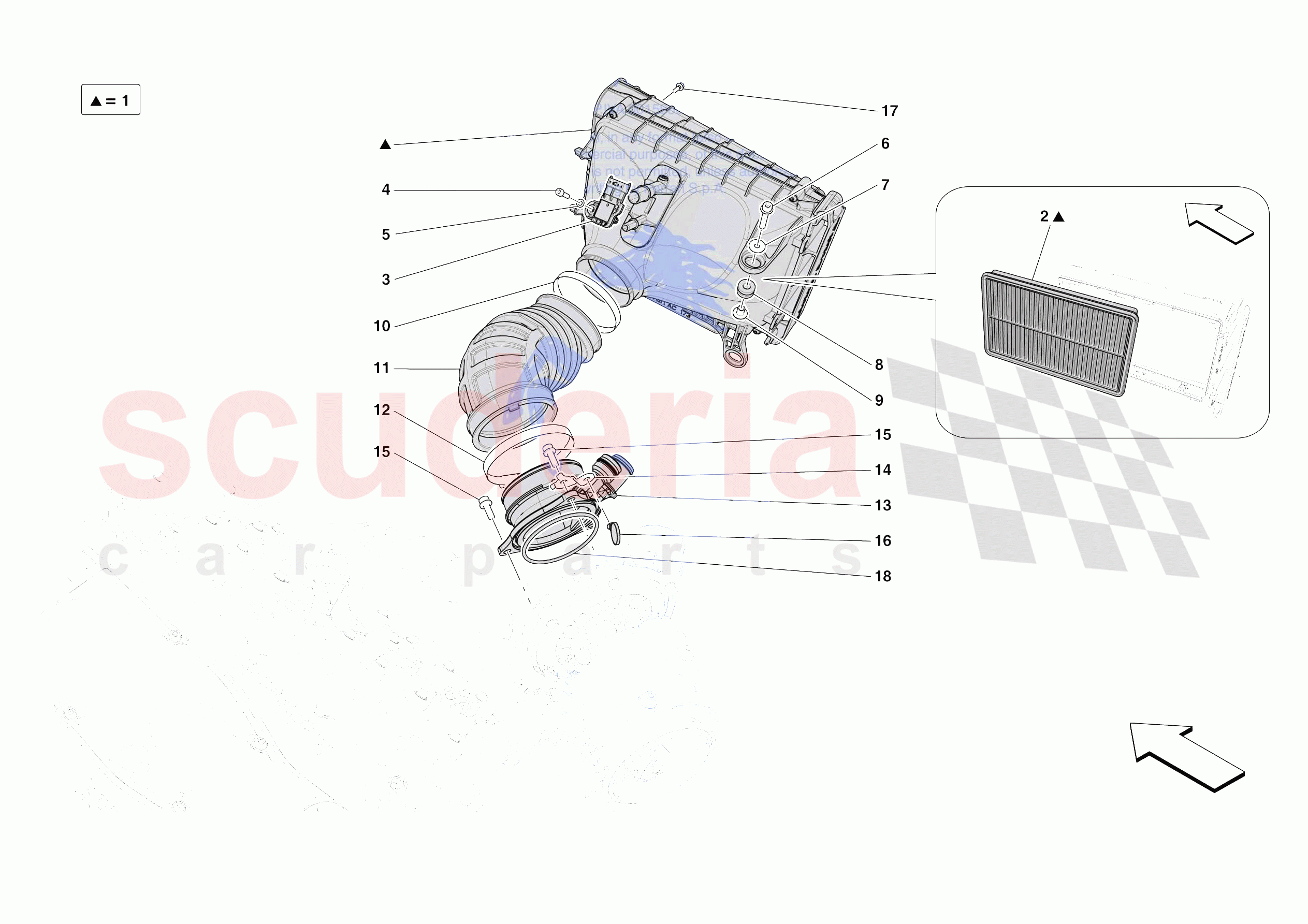

Ferrari SF90 XX Spider Europe - AIR FILTER, AIR INTAKE AND DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	914065	COMPL. RH AIR FILTER BOX	Enquire	To Order
	865143	COMPL. RH AIR FILTER BOX	Enquire	To Order
	914067	COMPL. LH AIR FILTER BOX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	815017	AIR FILTER	Enquire	ARRIVING SOON
	865146	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	882356	RH HOSE	Enquire	To Order
	882357	LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304446	SCREW COLLAR D.70 - D.90 X 9.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819010	RH CONNECTOR	Enquire	To Order
	819011	LH CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865226	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14465381	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	914065	COMPL. RH AIR FILTER BOX	914065 COMPL. RH AIR FILTER BOX	-	1	Enquire
0001	865143	COMPL. RH AIR FILTER BOX	865143 COMPL. RH AIR FILTER BOX	-	1	Enquire
0001	914067	COMPL. LH AIR FILTER BOX	914067 COMPL. LH AIR FILTER BOX	-	1	Enquire
0001	865145	COMPL. LH AIR FILTER BOX	865145 COMPL. LH AIR FILTER BOX	-	1	Enquire
0002	815017	AIR FILTER ARRIVING SOON	815017 AIR FILTER ARRIVING SOON	-	2	Enquire
0002	865146	AIR FILTER	865146 AIR FILTER	-	2	Enquire
0003	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR	-	2	Enquire
0004	14304424	SCREW	14304424 SCREW M5 X 18	-	2	Enquire
0005	12604178	Washer	12604178 Washer	-	2	Enquire
0006	231620	SCREW	231620 SCREW M6 X 30	-	4	Enquire
0007	12643724	WASHER	12643724 WASHER	-	14	Enquire
0008	812273	CABLE GROMMET	812273 CABLE GROMMET	-	4	Enquire
0009	149707	SPACER	149707 SPACER	-	4	Enquire
0010	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	2	Enquire
0011	882356	RH HOSE	882356 RH HOSE	-	1	Enquire
0011	882357	LH HOSE	882357 LH HOSE	-	1	Enquire
0012	304446	SCREW COLLAR D.70 - D.90 X 9.3	304446 SCREW COLLAR D.70 - D.90 X 9.3	-	2	Enquire
0013	819010	RH CONNECTOR	819010 RH CONNECTOR	-	1	Enquire
0013	819011	LH CONNECTOR	819011 LH CONNECTOR	-	1	Enquire
0014	865226	BRACKET	865226 BRACKET	-	1	Enquire
0015	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	6	Enquire
0016	303385	CLIP	303385 CLIP 170 mm	-	1	Enquire
0017	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
0018	14465381	GASKET	14465381 GASKET	-	2	Enquire
