FUEL TANK of Ferrari Ferrari SF90 XX Spider Europe

View All

Ferrari SF90 XX Spider Europe - FUEL TANK

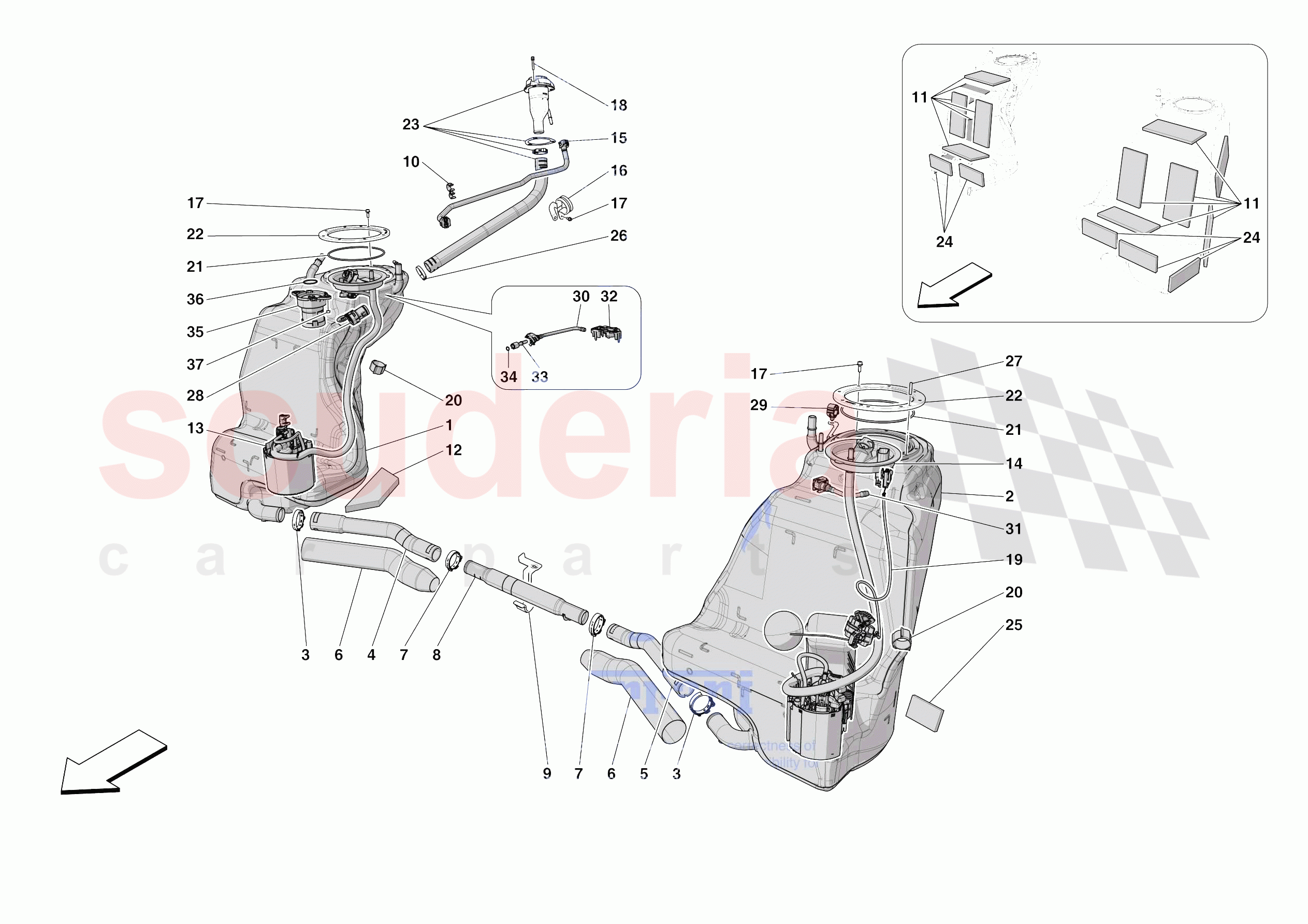

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	802313	RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802314	LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302682	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	779471	RH CONNECTOR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	779472	LH CONNECTOR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769419	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878549	FUEL TANK CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959437	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303321	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827818	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825619	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838726	COMPL. RH FUEL PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838682	COMPL. LH FUEL PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	779469	FUEL VAPOUR RECIRCULATION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	858464	FUEL FILLER PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791355	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829187	COMPL. FUEL LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254078	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899649	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	753437	FLANGE FASTENER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898455	COMPL. FUEL FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	827819	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877758	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237407	ANTI SPIT-BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903866	COMPL. RH PIPING VALVE - ROV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903865	COMPL. LH PIPING VALVE - ROV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	856964	PIPING VALVE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883189	PIPING VALVE SPIGOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899646	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877759	FUEL VAPOR RELIEF VALVE - FLVV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899647	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892983	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	802313	RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	802313 RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	-	1	Enquire
0002	802314	LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	802314 LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS	-	1	Enquire
0003	302682	COLLAR	302682 COLLAR	-	2	Enquire
0004	779471	RH CONNECTOR HOSE	779471 RH CONNECTOR HOSE	-	1	Enquire
0005	779472	LH CONNECTOR HOSE	779472 LH CONNECTOR HOSE	-	1	Enquire
0006	769419	SHEATH	769419 SHEATH	-	2	Enquire
0007	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
0008	878549	FUEL TANK CONNECTOR PIPE	878549 FUEL TANK CONNECTOR PIPE	-	1	Enquire
0009	959437	PIPE MOUNTING BRACKET	959437 PIPE MOUNTING BRACKET	-	1	Enquire
0010	303321	CLIP	303321 CLIP	-	1	Enquire
0011	827818	BUSH	827818 BUSH	-	12	Enquire
0012	825619	BUSH	825619 BUSH	-	2	Enquire
0013	838726	COMPL. RH FUEL PUMP KIT	838726 COMPL. RH FUEL PUMP KIT	-	1	Enquire
0014	838682	COMPL. LH FUEL PUMP KIT	838682 COMPL. LH FUEL PUMP KIT	-	1	Enquire
0015	779469	FUEL VAPOUR RECIRCULATION PIPE	779469 FUEL VAPOUR RECIRCULATION PIPE	-	1	Enquire
0016	858464	FUEL FILLER PIPE MOUNTING BRACKET	858464 FUEL FILLER PIPE MOUNTING BRACKET	-	1	Enquire
0017	85833700	SCREW	85833700 SCREW M5 X 16	-	19	Enquire
0018	791355	SCREW	791355 SCREW M5 X 30	-	3	Enquire
0019	829187	COMPL. FUEL LEVEL SENSOR	829187 COMPL. FUEL LEVEL SENSOR	-	1	Enquire
0020	254078	CLIP	254078 CLIP	-	3	Enquire
0021	899649	O-RING	899649 O-RING	-	2	Enquire
0022	753437	FLANGE FASTENER RING	753437 FLANGE FASTENER RING	-	2	Enquire
0023	898455	COMPL. FUEL FILLER NECK	898455 COMPL. FUEL FILLER NECK	-	1	Enquire
0024	827819	BUSH	827819 BUSH	-	6	Enquire
0025	877758	BUSH	877758 BUSH	-	2	Enquire
0026	11449470	COLLAR	11449470 COLLAR	-	1	Enquire
0027	11001124	STUD BOLT	11001124 STUD BOLT	-	2	Enquire
0028	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE	-	1	Enquire
0029	259508	CLIP	259508 CLIP 1 compartment-	-	2	Enquire
0030	903866	COMPL. RH PIPING VALVE - ROV	903866 COMPL. RH PIPING VALVE - ROV	-	1	Enquire
0031	903865	COMPL. LH PIPING VALVE - ROV	903865 COMPL. LH PIPING VALVE - ROV	-	1	Enquire
0032	856964	PIPING VALVE MOUNTING	856964 PIPING VALVE MOUNTING	-	2	Enquire
0033	883189	PIPING VALVE SPIGOT	883189 PIPING VALVE SPIGOT	-	1	Enquire
0034	899646	O-RING	899646 O-RING	-	1	Enquire
0035	877759	FUEL VAPOR RELIEF VALVE - FLVV	877759 FUEL VAPOR RELIEF VALVE - FLVV	-	1	Enquire
0036	899647	O-RING	899647 O-RING	-	1	Enquire
0037	892983	NUT	892983 NUT	-	2	Enquire
