FRONT SEATS - SEATS AND GUIDES of Ferrari Ferrari SF90 Stradale Europe

View All

Ferrari SF90 Stradale Europe - FRONT SEATS - SEATS AND GUIDES

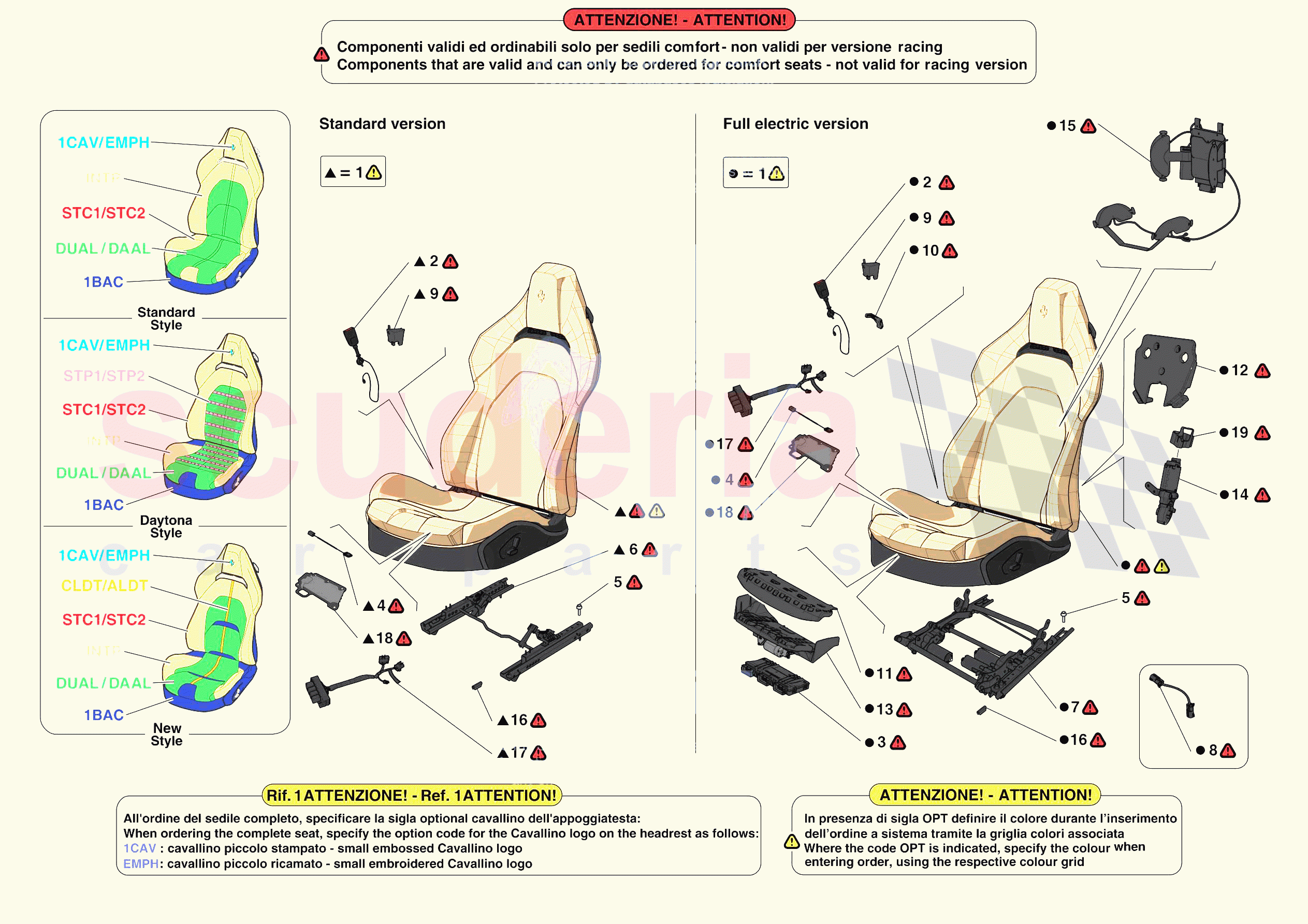

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	912818	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	913644	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	912816	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order

...and 36 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	984838	SEAT BELT SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824853	NAG/NAP ECU	Enquire	To Order
	872300	NAG/NAP ECU	Enquire	To Order
	824853	NAG/NAP ECU	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	776805	SBR SENSOR	Enquire	To Order
	776805	SBR SENSOR	Enquire	To Order
	873751	SBR SENSOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82140000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826933	UNDER BASE ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824833	UNDER BASE ELEMENT	Enquire	To Order
	824833	UNDER BASE ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824834	WIRING HARNESS	Enquire	To Order
	824834	WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826972	INHIBITOR KILLER MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826977	MICROSWITCH GUIDE	Enquire	To Order
	826977	MICROSWITCH GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826966	MOBILE NASETTO PLATE	Enquire	To Order
	826966	MOBILE NASETTO PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826963	LUMBAR SUPPORT	Enquire	To Order
	826963	LUMBAR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826964	NASETTO MECHANISM/ECU SHIELD	Enquire	To Order
	826964	NASETTO MECHANISM/ECU SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826949	ADJUSTMENT MOTOR	Enquire	To Order
	826949	ADJUSTMENT MOTOR	Enquire	To Order
	897774	ADJUSTMENT MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826950	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	Enquire	To Order
	826950	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824859	GUIDE RAIL TRAVEL LIMITER	Enquire	To Order
	824860	GUIDE RAIL TRAVEL LIMITER	Enquire	To Order
	824860	GUIDE RAIL TRAVEL LIMITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826938	LH WIRING HARNESS	Enquire	To Order
	824838	LH WIRING HARNESS	Enquire	To Order
	824835	RH WIRING HARNESS	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	824863	SBR MOUNTING PLATE	Enquire	To Order
	872359	SBR MOUNTING PLATE	Enquire	To Order
	824863	SBR MOUNTING PLATE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	897778	ADJUSTMENT MOTOR MOUNTING COLLAR	Enquire	To Order
	897779	ADJUSTMENT MOTOR MOUNTING COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	912818	RH SEAT COMPLETE WITH GUIDE RAILS	912818 RH SEAT COMPLETE WITH GUIDE RAILS Base - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	913644	RH SEAT COMPLETE WITH GUIDE RAILS	913644 RH SEAT COMPLETE WITH GUIDE RAILS Base - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912816	RH SEAT COMPLETE WITH GUIDE RAILS	912816 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	913642	RH SEAT COMPLETE WITH GUIDE RAILS	913642 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912807	RH SEAT COMPLETE WITH GUIDE RAILS	912807 RH SEAT COMPLETE WITH GUIDE RAILS New style - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	913615	RH SEAT COMPLETE WITH GUIDE RAILS	913615 RH SEAT COMPLETE WITH GUIDE RAILS New style - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	912790	RH SEAT COMPLETE WITH GUIDE RAILS	912790 RH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	913471	RH SEAT COMPLETE WITH GUIDE RAILS	913471 RH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912799	RH SEAT COMPLETE WITH GUIDE RAILS	912799 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	913605	RH SEAT COMPLETE WITH GUIDE RAILS	913605 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912795	RH SEAT COMPLETE WITH GUIDE RAILS	912795 RH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	913599	RH SEAT COMPLETE WITH GUIDE RAILS	913599 RH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	912793	RH SEAT COMPLETE WITH GUIDE RAILS	912793 RH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	893147	RH SEAT COMPLETE WITH GUIDE RAILS	893147 RH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - Ventilated - INTP- -DUAL- -DAAL- -1BAC- -1CAV- -EMPH- -STC1- -STC2; Part number applicable for SF90 CoupÃ© only	-	1	Enquire
0001	913594	RH SEAT COMPLETE WITH GUIDE RAILS	913594 RH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912805	RH SEAT COMPLETE WITH GUIDE RAILS	912805 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	893161	RH SEAT COMPLETE WITH GUIDE RAILS	893161 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - Ventilated - INTP- -DUAL- -DAAL- -1BAC- -1CAV- -EMPH- -STP1- -STP2- -STC1- -STC2; Part number applicable for SF90 CoupÃ© only	-	1	Enquire
0001	913612	RH SEAT COMPLETE WITH GUIDE RAILS	913612 RH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912801	RH SEAT COMPLETE WITH GUIDE RAILS	912801 RH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	893155	RH SEAT COMPLETE WITH GUIDE RAILS	893155 RH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - Ventilated - INTP- -DUAL- -DAAL- -1BAC- -1CAV- -EMPH- -CLDT- -ALDT- -STC1- -STC2; Part number applicable for SF90 CoupÃ© only	-	1	Enquire
0001	913607	RH SEAT COMPLETE WITH GUIDE RAILS	913607 RH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	912788	LH SEAT COMPLETE WITH GUIDE RAILS	912788 LH SEAT COMPLETE WITH GUIDE RAILS Base - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	913678	LH SEAT COMPLETE WITH GUIDE RAILS	913678 LH SEAT COMPLETE WITH GUIDE RAILS Base - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912786	LH SEAT COMPLETE WITH GUIDE RAILS	912786 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	913676	LH SEAT COMPLETE WITH GUIDE RAILS	913676 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912781	LH SEAT COMPLETE WITH GUIDE RAILS	912781 LH SEAT COMPLETE WITH GUIDE RAILS New style - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	913671	LH SEAT COMPLETE WITH GUIDE RAILS	913671 LH SEAT COMPLETE WITH GUIDE RAILS New style - 4-way electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	912763	LH SEAT COMPLETE WITH GUIDE RAILS	912763 LH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	913646	LH SEAT COMPLETE WITH GUIDE RAILS	913646 LH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912772	LH SEAT COMPLETE WITH GUIDE RAILS	912772 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	913661	LH SEAT COMPLETE WITH GUIDE RAILS	913661 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912767	LH SEAT COMPLETE WITH GUIDE RAILS	912767 LH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	913655	LH SEAT COMPLETE WITH GUIDE RAILS	913655 LH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	912765	LH SEAT COMPLETE WITH GUIDE RAILS	912765 LH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	913648	LH SEAT COMPLETE WITH GUIDE RAILS	913648 LH SEAT COMPLETE WITH GUIDE RAILS Base - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STC1 - STC2	-	1	Enquire
0001	912779	LH SEAT COMPLETE WITH GUIDE RAILS	912779 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	913669	LH SEAT COMPLETE WITH GUIDE RAILS	913669 LH SEAT COMPLETE WITH GUIDE RAILS Daytona - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - STP1 - STP2 - STC1 - STC2	-	1	Enquire
0001	912775	LH SEAT COMPLETE WITH GUIDE RAILS	912775 LH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0001	913664	LH SEAT COMPLETE WITH GUIDE RAILS	913664 LH SEAT COMPLETE WITH GUIDE RAILS New style - 18-way electric - Full electric - Ventilated - INTP - DUAL - DAAL - 1BAC - 1CAV - EMPH - CLDT - ALDT - STC1 - STC2	-	1	Enquire
0002	984838	SEAT BELT SECTION	984838 SEAT BELT SECTION L. 143 mm	-	2	Enquire
0003	824853	NAG/NAP ECU	824853 NAG/NAP ECU Full electric - Heated	-	1	Enquire
0003	872300	NAG/NAP ECU	872300 NAG/NAP ECU Full electric - Heated	-	1	Enquire
0003	824853	NAG/NAP ECU	824853 NAG/NAP ECU	-	1	Enquire
0003	872300	NAG/NAP ECU	872300 NAG/NAP ECU	-	1	Enquire
0003	824856	NAG/NAP ECU	824856 NAG/NAP ECU Full electric - Heated and ventilated	-	1	Enquire
0003	872356	NAG/NAP ECU	872356 NAG/NAP ECU Full electric - Heated and ventilated	-	1	Enquire
0004	776805	SBR SENSOR	776805 SBR SENSOR Passenger side	-	1	Enquire
0004	776805	SBR SENSOR	776805 SBR SENSOR	-	1	Enquire
0004	873751	SBR SENSOR	873751 SBR SENSOR	-	1	Enquire
0004	873751	SBR SENSOR	873751 SBR SENSOR	-	1	Enquire
0005	82140000	SCREW	82140000 SCREW M10 X 1.25 X 25	-	8	Enquire
0006	826933	UNDER BASE ELEMENT	826933 UNDER BASE ELEMENT Base	-	2	Enquire
0007	824833	UNDER BASE ELEMENT	824833 UNDER BASE ELEMENT Full electric - Heated	-	1	Enquire
0007	824833	UNDER BASE ELEMENT	824833 UNDER BASE ELEMENT	-	1	Enquire
0008	824834	WIRING HARNESS	824834 WIRING HARNESS Full electric - Heated	-	2	Enquire
0008	824834	WIRING HARNESS	824834 WIRING HARNESS	-	2	Enquire
0009	826972	INHIBITOR KILLER MICROSWITCH	826972 INHIBITOR KILLER MICROSWITCH	-	2	Enquire
0010	826977	MICROSWITCH GUIDE	826977 MICROSWITCH GUIDE Full electric - Heated	-	2	Enquire
0010	826977	MICROSWITCH GUIDE	826977 MICROSWITCH GUIDE	-	2	Enquire
0011	826966	MOBILE NASETTO PLATE	826966 MOBILE NASETTO PLATE Full electric - Heated	-	2	Enquire
0011	826966	MOBILE NASETTO PLATE	826966 MOBILE NASETTO PLATE	-	2	Enquire
0012	826963	LUMBAR SUPPORT	826963 LUMBAR SUPPORT Full electric - Heated	-	2	Enquire
0012	826963	LUMBAR SUPPORT	826963 LUMBAR SUPPORT	-	2	Enquire
0013	826964	NASETTO MECHANISM/ECU SHIELD	826964 NASETTO MECHANISM/ECU SHIELD Full electric - Heated	-	2	Enquire
0013	826964	NASETTO MECHANISM/ECU SHIELD	826964 NASETTO MECHANISM/ECU SHIELD	-	2	Enquire
0014	826949	ADJUSTMENT MOTOR	826949 ADJUSTMENT MOTOR Driver/passenger side	-	2	Enquire
0014	826949	ADJUSTMENT MOTOR	826949 ADJUSTMENT MOTOR	-	2	Enquire
0014	897774	ADJUSTMENT MOTOR	897774 ADJUSTMENT MOTOR Driver/passenger side	-	2	Enquire
0015	826950	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	826950 LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT Full electric - Heated	-	2	Enquire
0015	826950	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	826950 LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	-	2	Enquire
0016	824859	GUIDE RAIL TRAVEL LIMITER	824859 GUIDE RAIL TRAVEL LIMITER	-	4	Enquire
0016	824860	GUIDE RAIL TRAVEL LIMITER	824860 GUIDE RAIL TRAVEL LIMITER Full electric - Heated	-	4	Enquire
0016	824860	GUIDE RAIL TRAVEL LIMITER	824860 GUIDE RAIL TRAVEL LIMITER	-	4	Enquire
0017	826938	LH WIRING HARNESS	826938 LH WIRING HARNESS Base	-	1	Enquire
0017	824838	LH WIRING HARNESS	824838 LH WIRING HARNESS Base	-	1	Enquire
0017	824835	RH WIRING HARNESS	824835 RH WIRING HARNESS Base	-	1	Enquire
0017	826940	RH WIRING HARNESS	826940 RH WIRING HARNESS Base	-	1	Enquire
0017	824840	LH WIRING HARNESS	824840 LH WIRING HARNESS Full electric - Heated	-	1	Enquire
0017	824840	LH WIRING HARNESS	824840 LH WIRING HARNESS	-	1	Enquire
0017	824839	LH WIRING HARNESS	824839 LH WIRING HARNESS Full electric - Heated	-	1	Enquire
0017	824836	RH WIRING HARNESS	824836 RH WIRING HARNESS Full electric - Heated	-	1	Enquire
0017	824836	RH WIRING HARNESS	824836 RH WIRING HARNESS	-	1	Enquire
0017	824843	RH WIRING HARNESS	824843 RH WIRING HARNESS Full electric - Heated	-	1	Enquire
0017	824849	LH WIRING HARNESS	824849 LH WIRING HARNESS Full electric - Heated and ventilated	-	1	Enquire
0017	824850	LH WIRING HARNESS	824850 LH WIRING HARNESS Full electric - Heated and ventilated	-	1	Enquire
0017	824848	RH WIRING HARNESS	824848 RH WIRING HARNESS Full electric - Heated and ventilated	-	1	Enquire
0017	824852	RH WIRING HARNESS	824852 RH WIRING HARNESS Full electric - Heated and ventilated	-	1	Enquire
0018	824863	SBR MOUNTING PLATE	824863 SBR MOUNTING PLATE Full electric - Heated; Applies until depletion	-	1	Enquire
0018	872359	SBR MOUNTING PLATE	872359 SBR MOUNTING PLATE Full electric - Heated; Applicable after depletion of 824863	-	1	Enquire
0018	824863	SBR MOUNTING PLATE	824863 SBR MOUNTING PLATE	-	1	Enquire
0018	872359	SBR MOUNTING PLATE	872359 SBR MOUNTING PLATE	-	1	Enquire
0018	824862	SBR MOUNTING PLATE	824862 SBR MOUNTING PLATE Full electric - Ventilated; Applies until depletion	-	1	Enquire
0018	872360	SBR MOUNTING PLATE	872360 SBR MOUNTING PLATE Full electric - Ventilated; Applicable after depletion of 824862	-	1	Enquire
0019	897778	ADJUSTMENT MOTOR MOUNTING COLLAR	897778 ADJUSTMENT MOTOR MOUNTING COLLAR Driver/passenger side	-	2	Enquire
0019	897779	ADJUSTMENT MOTOR MOUNTING COLLAR	897779 ADJUSTMENT MOTOR MOUNTING COLLAR Driver/passenger side	-	2	Enquire
