LATERAL OUTER BODYSHELL of Ferrari Ferrari SF90 Stradale Europe

View All

Ferrari SF90 Stradale Europe - LATERAL OUTER BODYSHELL

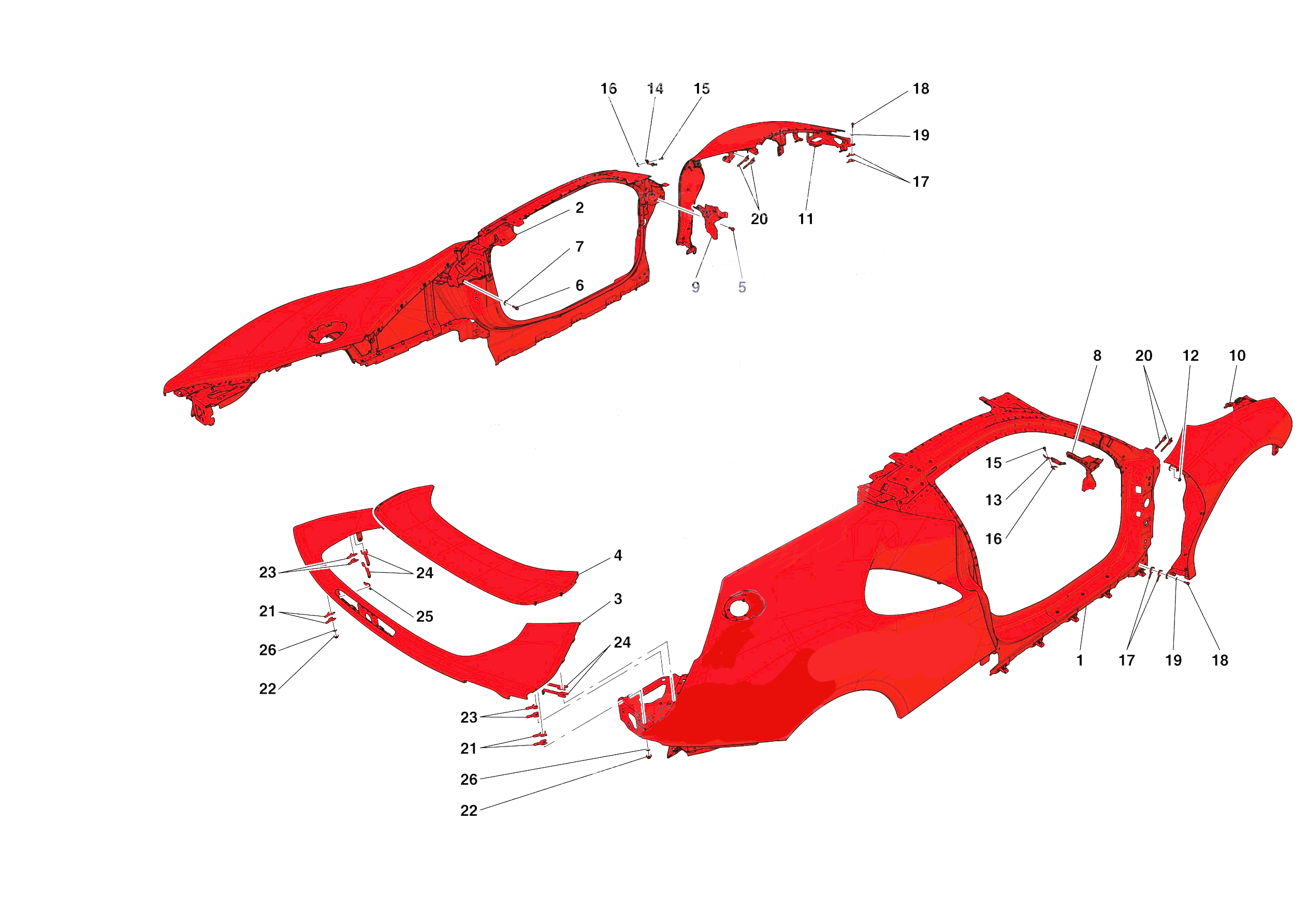

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985830884	RH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830830	LH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830960	REAR SPOILER	Enquire	To Order
	867444	REAR SPOILER	Enquire	To Order
	813813	REAR SPOILER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985830813	VARIABLE GEOM. SPOILER	Enquire	To Order
	953882	VARIABLE GEOM. SPOILER	Enquire	To Order
	898531	VARIABLE GEOM. SPOILER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16287221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830981	RH NODE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830977	LH NODE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830985	COMPL. RH FRONT FENDER	Enquire	To Order
	985865290	COMPL. RH FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985830940	COMPL. LH FRONT FENDER	Enquire	To Order
	985865292	COMPL. LH FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875139	RH A PILLAR COVER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875138	LH A PILLAR COVER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788178	ADJUSTMENT SHIM	Enquire	To Order
	788178	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88187400	ADJUSTMENT SHIM	Enquire	To Order
	88187600	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86847700	ADJUSTMENT SHIM	Enquire	To Order
	86847600	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900885	ADJUSTMENT SHIM	Enquire	To Order
	87583800	ADJUSTMENT SHIM	Enquire	To Order
	900889	ADJUSTMENT SHIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	921747	ADJUSTMENT SHIM	Enquire	To Order
	87583800	ADJUSTMENT SHIM	Enquire	To Order
	921748	ADJUSTMENT SHIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	921750	ADJUSTMENT SHIM	Enquire	To Order
	921749	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87583800	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order
	12647724	WASHER	Enquire	To Order
	12647724	WASHER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985830884	RH FLANK	985830884 RH FLANK Request ASM authorisation	-	1	Enquire
0002	985830830	LH FLANK	985830830 LH FLANK Request ASM authorisation	-	1	Enquire
0003	985830960	REAR SPOILER	985830960 REAR SPOILER Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0003	867444	REAR SPOILER	867444 REAR SPOILER Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2; Applies until depletion	-	1	Enquire
0003	813813	REAR SPOILER	813813 REAR SPOILER Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2; Applies until depletion - Applicable after depletion of 867444	-	1	Enquire
0003	898537	REAR SPOILER	898537 REAR SPOILER Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2; Applicable after depletion of 813813	-	1	Enquire
0003	70006946	REAR SPOILER	70006946 REAR SPOILER Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - Applicable for Assetto Fiorano FIO1/FIO2 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0004	985830813	VARIABLE GEOM. SPOILER	985830813 VARIABLE GEOM. SPOILER Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0004	953882	VARIABLE GEOM. SPOILER	953882 VARIABLE GEOM. SPOILER Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2; Applies until depletion	-	1	Enquire
0004	898531	VARIABLE GEOM. SPOILER	898531 VARIABLE GEOM. SPOILER Gloss carbon - Applicable for Assetto Fiorano FIO1/FIO2; Applicable after depletion of 953882	-	1	Enquire
0004	70006947	VARIABLE GEOM. SPOILER	70006947 VARIABLE GEOM. SPOILER Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - Applicable for Assetto Fiorano FIO1/FIO2 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0005	16287221	SCREW	16287221 SCREW M8 X 25	-	4	Enquire
0006	231625	SCREW	231625 SCREW M6 X 25	-	6	Enquire
0007	12647724	WASHER	12647724 WASHER Not for Assetto Fiorano FIO1/FIO2	-	12	Enquire
0008	985830981	RH NODE REINFORCEMENT	985830981 RH NODE REINFORCEMENT	-	1	Enquire
0009	985830977	LH NODE REINFORCEMENT	985830977 LH NODE REINFORCEMENT	-	1	Enquire
0010	985830985	COMPL. RH FRONT FENDER	985830985 COMPL. RH FRONT FENDER Request ASM authorisation	-	1	Enquire
0010	985865290	COMPL. RH FRONT FENDER	985865290 COMPL. RH FRONT FENDER Version with shields; Request ASM authorisation	-	1	Enquire
0011	985830940	COMPL. LH FRONT FENDER	985830940 COMPL. LH FRONT FENDER Request ASM authorisation	-	1	Enquire
0011	985865292	COMPL. LH FRONT FENDER	985865292 COMPL. LH FRONT FENDER Version with shields; Request ASM authorisation	-	1	Enquire
0012	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for Assetto Fiorano FIO1/FIO2; M6	-	12	Enquire
0013	875139	RH A PILLAR COVER FASTENER BRACKET	875139 RH A PILLAR COVER FASTENER BRACKET	-	1	Enquire
0014	875138	LH A PILLAR COVER FASTENER BRACKET	875138 LH A PILLAR COVER FASTENER BRACKET	-	1	Enquire
0015	16285014	SCREW	16285014 SCREW M5 X 16	-	4	Enquire
0016	788178	ADJUSTMENT SHIM	788178 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0016	788178	ADJUSTMENT SHIM	788178 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0017	88187400	ADJUSTMENT SHIM	88187400 ADJUSTMENT SHIM Th. 1 mm	-	8	Enquire
0017	88187600	ADJUSTMENT SHIM	88187600 ADJUSTMENT SHIM Th. 0.5 mm	-	8	Enquire
0018	16286121	SCREW	16286121 SCREW M6 X 20	-	12	Enquire
0019	12643724	WASHER	12643724 WASHER	-	12	Enquire
0020	86847700	ADJUSTMENT SHIM	86847700 ADJUSTMENT SHIM Th. 0.5 mm	-	4	Enquire
0020	86847600	ADJUSTMENT SHIM	86847600 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0021	900885	ADJUSTMENT SHIM	900885 ADJUSTMENT SHIM Applies until depletion; Th. 1 mm	-	6	Enquire
0021	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0021	900889	ADJUSTMENT SHIM	900889 ADJUSTMENT SHIM Applies until depletion; Th. 1.5 mm	-	6	Enquire
0021	87583700	ADJUSTMENT SHIM	87583700 ADJUSTMENT SHIM Applicable after depletion of 921748; Th. 1.5 mm	-	4	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6	-	12	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
0022	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6	-	12	Enquire
0023	921747	ADJUSTMENT SHIM	921747 ADJUSTMENT SHIM Applies until depletion; Th. 1 mm	-	4	Enquire
0023	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0023	921748	ADJUSTMENT SHIM	921748 ADJUSTMENT SHIM Applies until depletion; Th. 1.5 mm	-	4	Enquire
0023	87583700	ADJUSTMENT SHIM	87583700 ADJUSTMENT SHIM Th. 1.5 mm	-	4	Enquire
0024	921750	ADJUSTMENT SHIM	921750 ADJUSTMENT SHIM Th. 1 mm	-	2	Enquire
0024	921749	ADJUSTMENT SHIM	921749 ADJUSTMENT SHIM Th. 1.5 mm	-	2	Enquire
0025	87583800	ADJUSTMENT SHIM	87583800 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0026	12647724	WASHER	12647724 WASHER	-	12	Enquire
0026	12647724	WASHER	12647724 WASHER	-	12	Enquire
0026	12647724	WASHER	12647724 WASHER 15 X 25 X 2	-	12	Enquire
0026	12647724	WASHER	12647724 WASHER	-	12	Enquire
