DOOR SEALS of Ferrari Ferrari SF90 Stradale Europe

View All

Ferrari SF90 Stradale Europe - DOOR SEALS

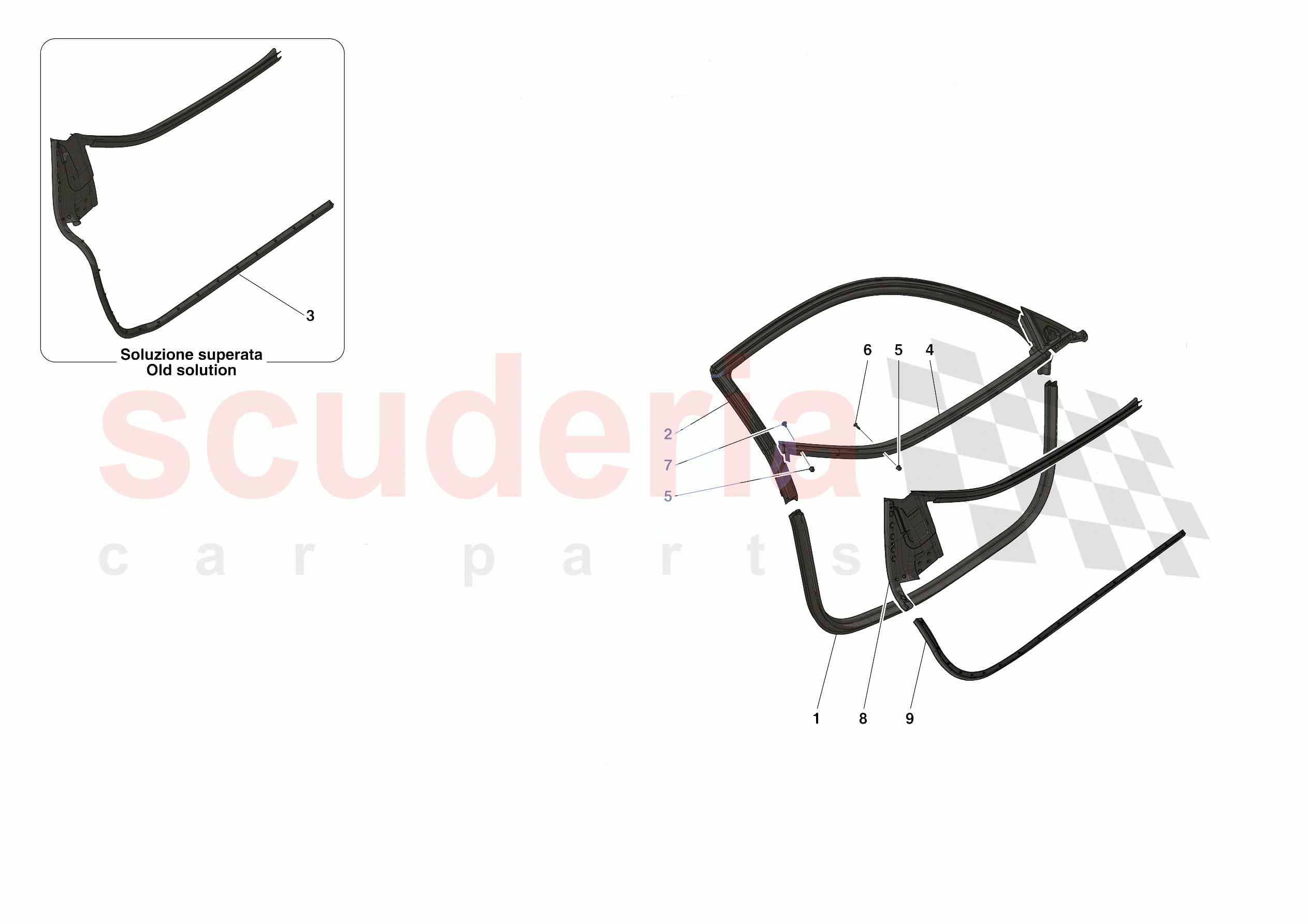

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	967810	LOWER DOOR PERIMETER SEAL	Enquire	To Order
	898528	LOWER DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	955905	RH DOOR PERIMETER SEAL	Enquire	To Order
	950167	RH DOOR PERIMETER SEAL	Enquire	To Order
	815740	RH DOOR PERIMETER SEAL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	967809	RH DOOR INNER PERIMETER SEAL	Enquire	To Order
	967808	LH DOOR INNER PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873545	RH DOOR OUTER PERIMETER SEAL	Enquire	To Order
	898546	RH DOOR OUTER PERIMETER SEAL	Enquire	To Order
	873544	LH DOOR OUTER PERIMETER SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689809	SCREW	Enquire	To Order
	15689601	SCREW	Enquire	To Order
	15689601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917610	LH DOOR UPPER INNER PERIMETER SEAL	Enquire	To Order
	917630	LH DOOR UPPER INNER PERIMETER SEAL	Enquire	To Order
	917612	RH DOOR UPPER INNER PERIMETER SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	917611	LH DOOR LOWER INNER PERIMETER SEAL	Enquire	To Order
	917631	LH DOOR LOWER INNER PERIMETER SEAL	Enquire	To Order
	917613	RH DOOR LOWER INNER PERIMETER SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	967810	LOWER DOOR PERIMETER SEAL	967810 LOWER DOOR PERIMETER SEAL Applies until depletion	-	2	Enquire
0001	898528	LOWER DOOR PERIMETER SEAL	898528 LOWER DOOR PERIMETER SEAL Applicable after depletion of 967810	-	2	Enquire
0002	955905	RH DOOR PERIMETER SEAL	955905 RH DOOR PERIMETER SEAL Applies until depletion	-	1	Enquire
0002	950167	RH DOOR PERIMETER SEAL	950167 RH DOOR PERIMETER SEAL No longer supplied - Replaced by 815740 - Applicable after depletion of 955905	-	1	Enquire
0002	815740	RH DOOR PERIMETER SEAL	815740 RH DOOR PERIMETER SEAL	-	1	Enquire
0002	955906	LH DOOR PERIMETER SEAL	955906 LH DOOR PERIMETER SEAL Applies until depletion	-	1	Enquire
0002	950168	LH DOOR PERIMETER SEAL	950168 LH DOOR PERIMETER SEAL No longer supplied - Replaced by 815662 - Applicable after depletion of 955906	-	1	Enquire
0002	815662	LH DOOR PERIMETER SEAL	815662 LH DOOR PERIMETER SEAL	-	1	Enquire
0003	967809	RH DOOR INNER PERIMETER SEAL	967809 RH DOOR INNER PERIMETER SEAL After depletion, order gaskets 917612 ref. 8 and 917613 ref. 9; Applies until depletion	-	1	Enquire
0003	967808	LH DOOR INNER PERIMETER SEAL	967808 LH DOOR INNER PERIMETER SEAL No longer supplied	-	1	Enquire
0004	873545	RH DOOR OUTER PERIMETER SEAL	873545 RH DOOR OUTER PERIMETER SEAL Applies until depletion	-	1	Enquire
0004	898546	RH DOOR OUTER PERIMETER SEAL	898546 RH DOOR OUTER PERIMETER SEAL Applicable after depletion of 873545	-	1	Enquire
0004	873544	LH DOOR OUTER PERIMETER SEAL	873544 LH DOOR OUTER PERIMETER SEAL Applies until depletion	-	1	Enquire
0004	898529	LH DOOR OUTER PERIMETER SEAL	898529 LH DOOR OUTER PERIMETER SEAL Applicable after depletion of 873544	-	1	Enquire
0005	14115885	BLOCK	14115885 BLOCK	-	16	Enquire
0006	15689809	SCREW	15689809 SCREW	-	14	Enquire
0006	15689601	SCREW	15689601 SCREW	-	14	Enquire
0006	15689601	SCREW	15689601 SCREW	-	14	Enquire
0007	15689601	SCREW	15689601 SCREW M8 X 13	-	2	Enquire
0008	917610	LH DOOR UPPER INNER PERIMETER SEAL	917610 LH DOOR UPPER INNER PERIMETER SEAL Applies until depletion	-	1	Enquire
0008	917630	LH DOOR UPPER INNER PERIMETER SEAL	917630 LH DOOR UPPER INNER PERIMETER SEAL Applicable after depletion of 917610	-	1	Enquire
0008	917612	RH DOOR UPPER INNER PERIMETER SEAL	917612 RH DOOR UPPER INNER PERIMETER SEAL Applies until depletion - Applicable after depletion of 967809	-	1	Enquire
0008	917632	RH DOOR UPPER INNER PERIMETER SEAL	917632 RH DOOR UPPER INNER PERIMETER SEAL Applicable after depletion of 917612	-	1	Enquire
0009	917611	LH DOOR LOWER INNER PERIMETER SEAL	917611 LH DOOR LOWER INNER PERIMETER SEAL No longer supplied - Replaced by 917631	-	1	Enquire
0009	917631	LH DOOR LOWER INNER PERIMETER SEAL	917631 LH DOOR LOWER INNER PERIMETER SEAL	-	1	Enquire
0009	917613	RH DOOR LOWER INNER PERIMETER SEAL	917613 RH DOOR LOWER INNER PERIMETER SEAL Applies until depletion - Applicable after depletion of 967809	-	1	Enquire
0009	917633	RH DOOR LOWER INNER PERIMETER SEAL	917633 RH DOOR LOWER INNER PERIMETER SEAL Applicable after depletion of 917613	-	1	Enquire
