REAR ACTIVE AERO of Ferrari Ferrari SF90 Stradale Europe

View All

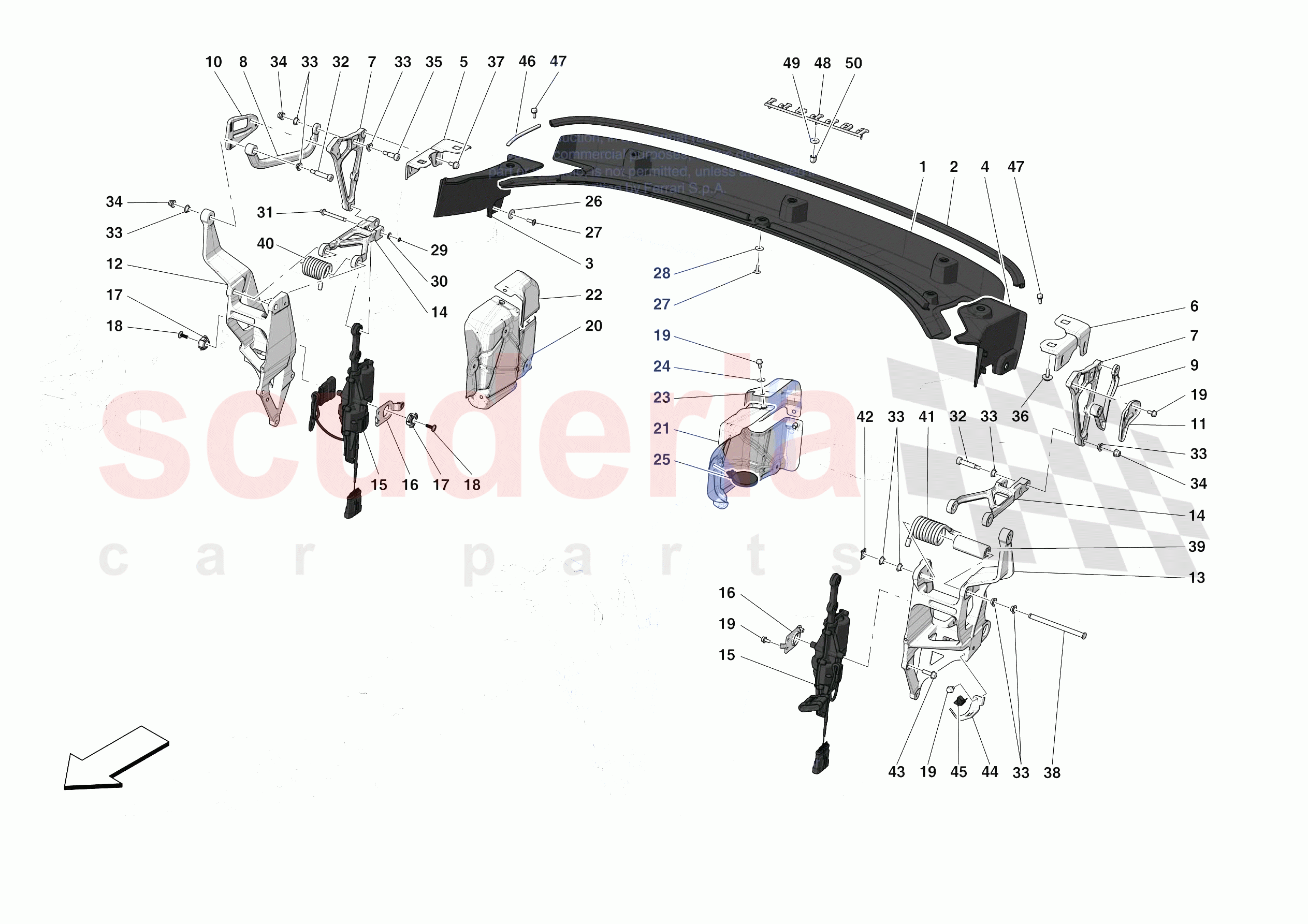

Ferrari SF90 Stradale Europe - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	853220	COMPL. VARIABLE GEOM. SPOILER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	935428	CENTRE VARIABLE GEOM. SPOILER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	853230	RH LATERAL VARIABLE GEOM. SPOILER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	853229	LH LATERAL VARIABLE GEOM. SPOILER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954031	RH SPOILER ADJUSTMENT BRACKET ON LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954030	LH SPOILER ADJUSTMENT BRACKET ON LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877619	UPPER REAR WING LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	866531	RH VARIABLE GEOM. WING TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	866530	LH VARIABLE GEOM. WING TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	853231	RH VARIABLE GEOM. SPOILER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	853232	LH VARIABLE GEOM. SPOILER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877612	RH MOUNT FOR REAR WING LEVERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877610	LH MOUNT FOR REAR WING LEVERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	937670	LOWER REAR WING LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335169	LINEAR ELECTRIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862627	LATERAL ACTUATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814978	CLIP BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	857463	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	859424	RH ACTUATOR HEAT SHIELD	Enquire	To Order
	801188	RH ACTUATOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	859423	LH ACTUATOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860287	RH HEAT SHIELD HATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860286	LH HEAT SHIELD HATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911975	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984988	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84863200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862343	VARIABLE GEOM. WING ACTUATOR PIVOT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893538	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814976	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893539	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815181	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939521	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959555	RH REAR WING RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959554	LH REAR WING RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959700	SAFETY CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871881	LH CONNECTOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	953916	BUSH SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970713	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63482200	FERRARI LETTERING	Enquire	To Order
	70006277	FERRARI BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89144000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88074800	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	853220	COMPL. VARIABLE GEOM. SPOILER TRIM	853220 COMPL. VARIABLE GEOM. SPOILER TRIM Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0002	935428	CENTRE VARIABLE GEOM. SPOILER SEAL	935428 CENTRE VARIABLE GEOM. SPOILER SEAL Not for Assetto Fiorano FIO1/FIO2	-	1	Enquire
0003	853230	RH LATERAL VARIABLE GEOM. SPOILER TRIM	853230 RH LATERAL VARIABLE GEOM. SPOILER TRIM	-	1	Enquire
0004	853229	LH LATERAL VARIABLE GEOM. SPOILER TRIM	853229 LH LATERAL VARIABLE GEOM. SPOILER TRIM	-	1	Enquire
0005	954031	RH SPOILER ADJUSTMENT BRACKET ON LEVER	954031 RH SPOILER ADJUSTMENT BRACKET ON LEVER	-	1	Enquire
0006	954030	LH SPOILER ADJUSTMENT BRACKET ON LEVER	954030 LH SPOILER ADJUSTMENT BRACKET ON LEVER	-	1	Enquire
0007	877619	UPPER REAR WING LEVER	877619 UPPER REAR WING LEVER	-	2	Enquire
0008	866531	RH VARIABLE GEOM. WING TIE-ROD	866531 RH VARIABLE GEOM. WING TIE-ROD	-	1	Enquire
0009	866530	LH VARIABLE GEOM. WING TIE-ROD	866530 LH VARIABLE GEOM. WING TIE-ROD	-	1	Enquire
0010	853231	RH VARIABLE GEOM. SPOILER MOUNTING BRACKET	853231 RH VARIABLE GEOM. SPOILER MOUNTING BRACKET	-	1	Enquire
0011	853232	LH VARIABLE GEOM. SPOILER MOUNTING BRACKET	853232 LH VARIABLE GEOM. SPOILER MOUNTING BRACKET	-	1	Enquire
0012	877612	RH MOUNT FOR REAR WING LEVERS	877612 RH MOUNT FOR REAR WING LEVERS	-	1	Enquire
0013	877610	LH MOUNT FOR REAR WING LEVERS	877610 LH MOUNT FOR REAR WING LEVERS	-	1	Enquire
0014	937670	LOWER REAR WING LEVER	937670 LOWER REAR WING LEVER	-	2	Enquire
0015	335169	LINEAR ELECTRIC ACTUATOR	335169 LINEAR ELECTRIC ACTUATOR	-	2	Enquire
0016	862627	LATERAL ACTUATOR MOUNTING BRACKET	862627 LATERAL ACTUATOR MOUNTING BRACKET	-	2	Enquire
0017	814978	CLIP BEARING	814978 CLIP BEARING	-	4	Enquire
0018	857463	SCREW	857463 SCREW 5 X 14	-	4	Enquire
0019	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	-	19	Enquire
0020	859424	RH ACTUATOR HEAT SHIELD	859424 RH ACTUATOR HEAT SHIELD Applies until depletion	-	1	Enquire
0020	801188	RH ACTUATOR HEAT SHIELD	801188 RH ACTUATOR HEAT SHIELD Applicable after depletion of 859424	-	1	Enquire
0021	859423	LH ACTUATOR HEAT SHIELD	859423 LH ACTUATOR HEAT SHIELD	-	1	Enquire
0022	860287	RH HEAT SHIELD HATCH	860287 RH HEAT SHIELD HATCH	-	1	Enquire
0023	860286	LH HEAT SHIELD HATCH	860286 LH HEAT SHIELD HATCH	-	1	Enquire
0024	62769800	WASHER	62769800 WASHER	-	4	Enquire
0025	303385	CLIP	303385 CLIP 170 mm	-	2	Enquire
0026	12643778	WASHER	12643778 WASHER	-	4	Enquire
0027	85833700	SCREW	85833700 SCREW M5 X 14	-	10	Enquire
0028	911975	WASHER	911975 WASHER	-	6	Enquire
0029	984988	SEEGER RING	984988 SEEGER RING	-	2	Enquire
0030	84863200	WASHER	84863200 WASHER	-	2	Enquire
0031	862343	VARIABLE GEOM. WING ACTUATOR PIVOT PIN	862343 VARIABLE GEOM. WING ACTUATOR PIVOT PIN	-	2	Enquire
0032	893538	SCREW	893538 SCREW	-	4	Enquire
0033	814976	BUSH	814976 BUSH	-	20	Enquire
0034	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
0035	893539	SCREW	893539 SCREW	-	2	Enquire
0036	16286121	SCREW	16286121 SCREW M6 X 18	-	4	Enquire
0036	81591700	SCREW	81591700 SCREW M6 X 18	-	4	Enquire
0036	16286121	SCREW	16286121 SCREW M6 X 18	-	4	Enquire
0037	16285921	SCREW	16285921 SCREW M6 X 12	-	4	Enquire
0038	815181	PIN	815181 PIN	-	2	Enquire
0039	939521	BUSH	939521 BUSH	-	2	Enquire
0040	959555	RH REAR WING RETURN SPRING	959555 RH REAR WING RETURN SPRING	-	1	Enquire
0041	959554	LH REAR WING RETURN SPRING	959554 LH REAR WING RETURN SPRING	-	1	Enquire
0042	959700	SAFETY CLIP	959700 SAFETY CLIP	-	2	Enquire
0043	81591700	SCREW	81591700 SCREW M6 X 20	-	6	Enquire
0044	871881	LH CONNECTOR MOUNTING BRACKET	871881 LH CONNECTOR MOUNTING BRACKET	-	1	Enquire
0045	291283	CLIP	291283 CLIP	-	2	Enquire
0046	953916	BUSH SEAL	953916 BUSH SEAL Applicable for Assetto Fiorano FIO1/FIO2	-	2	Enquire
0047	970713	BUSH	970713 BUSH	-	4	Enquire
0048	63482200	FERRARI LETTERING	63482200 FERRARI LETTERING	-	1	Enquire
0048	70006277	FERRARI BADGE	70006277 FERRARI BADGE Satin finish version; Off-catalogue version	-	1	Enquire
0049	89144000	WASHER	89144000 WASHER	-	3	Enquire
0050	88074800	CLIP	88074800 CLIP	-	3	Enquire
