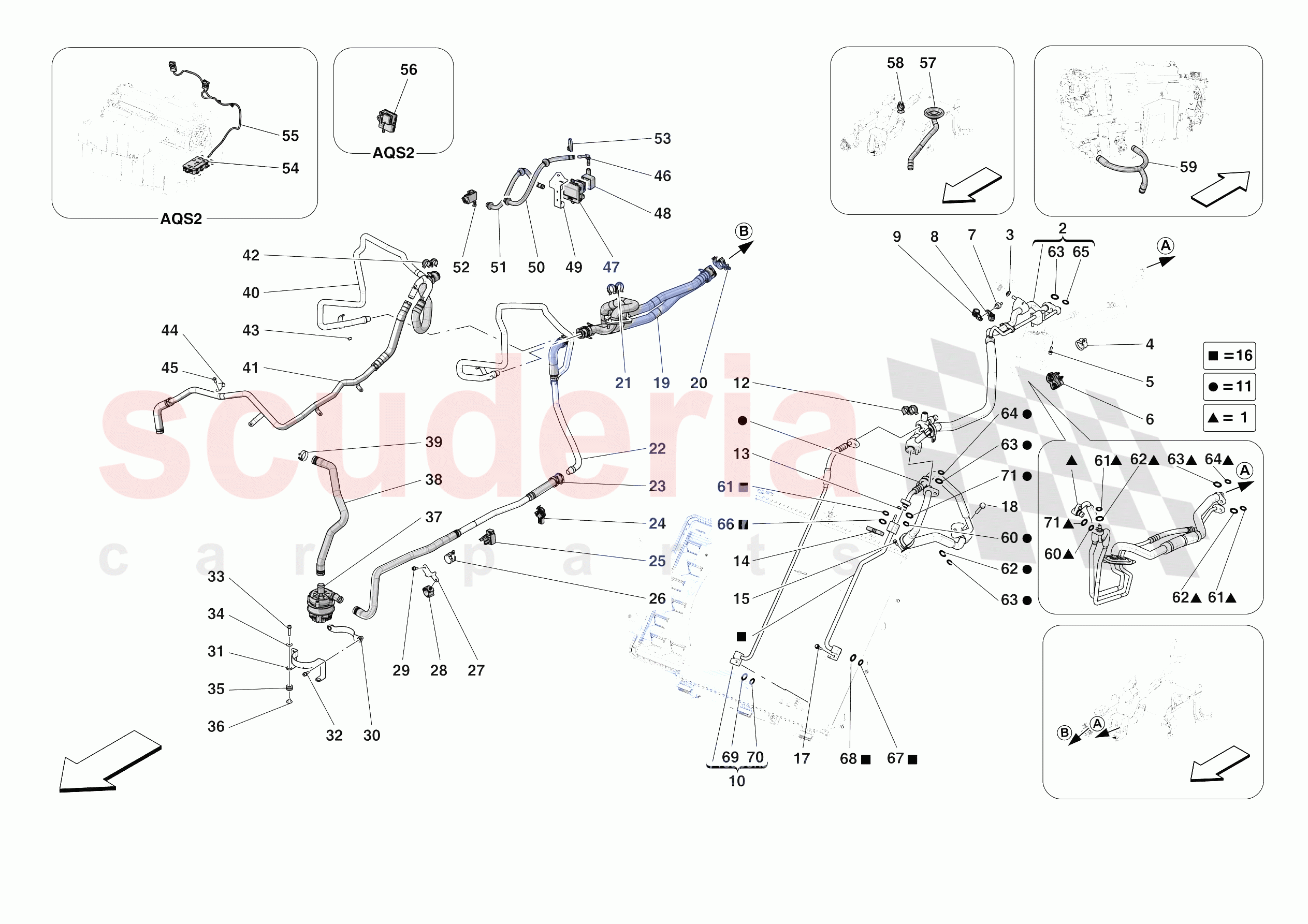

Ferrari Purosangue USA - A/C SYSTEM - AIR CONDITIONER SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	956125	REAR HVAC PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781458	IHX PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14066017	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	787854	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914567	CYLINDRICAL BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320597	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865647	PIPE FROM CONDENSER TO IHX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	810135	AC SYSTEM PIPE ON COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82329900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294693	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808838	PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13837017	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896357	COMPL. REAR HVAC PIPES	Enquire	To Order
	957131	COMPL. REAR HVAC PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	790253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160013	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	888688	COMPL. HVAC DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899352	COMPL. HVAC DELIVERY PIPE DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266156	CLIP	Enquire	To Order
	769594	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81649300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910791	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809455	REAR PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809454	FRONT PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	838313	HV CIRCUIT ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809453	PUMP INLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	856056	COMPL. HVAC OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	943538	CPL. HVAC PIPE ON ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292861	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	943590	BRACKET FASTENING HVAC PIPE TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306938	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	887370	90Â° UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766563	EXTERNAL PARTICULATE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	887227	EXTERNAL PARTICULATE SENSOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	850550	RH BRACKET OF EXTERNAL PARTICULATE SENSOR	Enquire	To Order
	944761	EXTERNAL PARTICULATE SENSOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	887225	EXTERNAL PARTICULATE SENSOR RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	887224	EXTERNAL PARTICULATE SENSOR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	839918	AC AIR QUALITY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766562	IONISING UNIT E-BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868997	IONISING UNIT EMITTER WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	841432	INTERNAL PARTICULATE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865328	REAR HVAC DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896231	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980168	CONDENSATE DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11084284	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11084084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11342584	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11342784	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11084384	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11342484	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11342584	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14450683	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10319184	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10319184	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14450683	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11342684	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	956125	REAR HVAC PIPES	956125 REAR HVAC PIPES	-	1	Enquire
0002	781458	IHX PIPE	781458 IHX PIPE	-	1	Enquire
0003	14066017	NUT	14066017 NUT	-	7	Enquire
0004	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	2	Enquire
0005	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
0006	787854	CLIP	787854 CLIP	-	1	Enquire
0007	914567	CYLINDRICAL BUSHING	914567 CYLINDRICAL BUSHING	-	1	Enquire
0008	320597	CLIP	320597 CLIP	-	1	Enquire
0009	320598	CLIP	320598 CLIP	-	1	Enquire
0010	865647	PIPE FROM CONDENSER TO IHX	865647 PIPE FROM CONDENSER TO IHX	-	2	Enquire
0011	810135	AC SYSTEM PIPE ON COMPRESSOR	810135 AC SYSTEM PIPE ON COMPRESSOR	-	2	Enquire
0012	82329900	CLIP	82329900 CLIP	-	2	Enquire
0013	14040614	NUT	14040614 NUT	-	5	Enquire
0014	294693	CLIP	294693 CLIP	-	1	Enquire
0015	282393	SCREW	282393 SCREW M6 X 14	-	4	Enquire
0016	808838	PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER	808838 PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER	-	2	Enquire
0017	13837017	SCREW	13837017 SCREW M6 X 30	-	2	Enquire
0018	16044024	SCREW	16044024 SCREW M8 X 40	-	1	Enquire
0019	896357	COMPL. REAR HVAC PIPES	896357 COMPL. REAR HVAC PIPES No longer supplied - Replaced by 957131	-	1	Enquire
0019	957131	COMPL. REAR HVAC PIPES	957131 COMPL. REAR HVAC PIPES	-	1	Enquire
0020	790253	CLIP	790253 CLIP	-	2	Enquire
0021	160013	CLIP	160013 CLIP	-	2	Enquire
0022	888688	COMPL. HVAC DELIVERY PIPE	888688 COMPL. HVAC DELIVERY PIPE	-	1	Enquire
0023	899352	COMPL. HVAC DELIVERY PIPE DISCONNECTOR UNION	899352 COMPL. HVAC DELIVERY PIPE DISCONNECTOR UNION	-	2	Enquire
0024	266156	CLIP	266156 CLIP	-	7	Enquire
0024	769594	CLIP	769594 CLIP	-	7	Enquire
0025	81649300	CLIP	81649300 CLIP	-	1	Enquire
0026	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
0027	910791	BRACKET	910791 BRACKET	-	1	Enquire
0028	248061	CLIP	248061 CLIP	-	2	Enquire
0029	85833700	SCREW	85833700 SCREW M5 X 14	-	1	Enquire
0030	809455	REAR PUMP BRACKET	809455 REAR PUMP BRACKET	-	2	Enquire
0031	809454	FRONT PUMP BRACKET	809454 FRONT PUMP BRACKET	-	2	Enquire
0032	282394	SCREW	282394 SCREW M6 X 18	-	9	Enquire
0033	231620	SCREW	231620 SCREW M6 X 30	-	2	Enquire
0034	12643724	WASHER	12643724 WASHER	-	2	Enquire
0035	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
0036	149707	SPACER	149707 SPACER	-	2	Enquire
0037	838313	HV CIRCUIT ELECTRIC PUMP	838313 HV CIRCUIT ELECTRIC PUMP	-	2	Enquire
0038	809453	PUMP INLET HOSE	809453 PUMP INLET HOSE	-	2	Enquire
0039	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	13	Enquire
0040	856056	COMPL. HVAC OUTLET PIPE	856056 COMPL. HVAC OUTLET PIPE	-	2	Enquire
0041	943538	CPL. HVAC PIPE ON ENGINE	943538 CPL. HVAC PIPE ON ENGINE	-	1	Enquire
0042	292861	CLIP	292861 CLIP	-	1	Enquire
0043	14040511	NUT	14040511 NUT	-	2	Enquire
0044	943590	BRACKET FASTENING HVAC PIPE TO ENGINE	943590 BRACKET FASTENING HVAC PIPE TO ENGINE	-	1	Enquire
0045	306938	SCREW	306938 SCREW M6 X 14	-	1	Enquire
0046	887370	90Â° UNION	887370 90Â° UNION	-	1	Enquire
0047	766563	EXTERNAL PARTICULATE SENSOR	766563 EXTERNAL PARTICULATE SENSOR	-	1	Enquire
0048	887227	EXTERNAL PARTICULATE SENSOR COVER	887227 EXTERNAL PARTICULATE SENSOR COVER	-	1	Enquire
0049	850550	RH BRACKET OF EXTERNAL PARTICULATE SENSOR	850550 RH BRACKET OF EXTERNAL PARTICULATE SENSOR	-	1	Enquire
0049	944761	EXTERNAL PARTICULATE SENSOR BRACKET	944761 EXTERNAL PARTICULATE SENSOR BRACKET	-	1	Enquire
0050	887225	EXTERNAL PARTICULATE SENSOR RETURN PIPE	887225 EXTERNAL PARTICULATE SENSOR RETURN PIPE	-	1	Enquire
0051	887224	EXTERNAL PARTICULATE SENSOR DELIVERY PIPE	887224 EXTERNAL PARTICULATE SENSOR DELIVERY PIPE	-	1	Enquire
0052	303385	CLIP	303385 CLIP 170 mm	-	1	Enquire
0053	839918	AC AIR QUALITY SENSOR	839918 AC AIR QUALITY SENSOR	-	1	Enquire
0054	766562	IONISING UNIT E-BOX	766562 IONISING UNIT E-BOX Version with air quality sensor	-	1	Enquire
0055	868997	IONISING UNIT EMITTER WIRING HARNESS	868997 IONISING UNIT EMITTER WIRING HARNESS Version with air quality sensor	-	1	Enquire
0056	841432	INTERNAL PARTICULATE SENSOR	841432 INTERNAL PARTICULATE SENSOR Version with air quality sensor	-	1	Enquire
0057	865328	REAR HVAC DRAIN PIPE	865328 REAR HVAC DRAIN PIPE	-	1	Enquire
0058	896231	CLIP	896231 CLIP	-	1	Enquire
0059	980168	CONDENSATE DRAIN PIPE	980168 CONDENSATE DRAIN PIPE	-	1	Enquire
0060	11084284	GASKET	11084284 GASKET	-	2	Enquire
0061	11084084	GASKET	11084084 GASKET	-	3	Enquire
0062	11342584	GASKET	11342584 GASKET	-	1	Enquire
0063	11342784	GASKET	11342784 GASKET	-	4	Enquire
0064	11084384	GASKET	11084384 GASKET	-	2	Enquire
0065	11342484	GASKET	11342484 GASKET	-	1	Enquire
0066	11342584	GASKET	11342584 GASKET	-	1	Enquire
0067	14450683	GASKET	14450683 GASKET	-	1	Enquire
0068	10319184	GASKET	10319184 GASKET	-	1	Enquire
0069	10319184	GASKET	10319184 GASKET	-	1	Enquire
0070	14450683	GASKET	14450683 GASKET	-	1	Enquire
0071	11342684	GASKET	11342684 GASKET	-	2	Enquire
