REAR DOORS - TRIM of Ferrari Ferrari Purosangue USA

View All

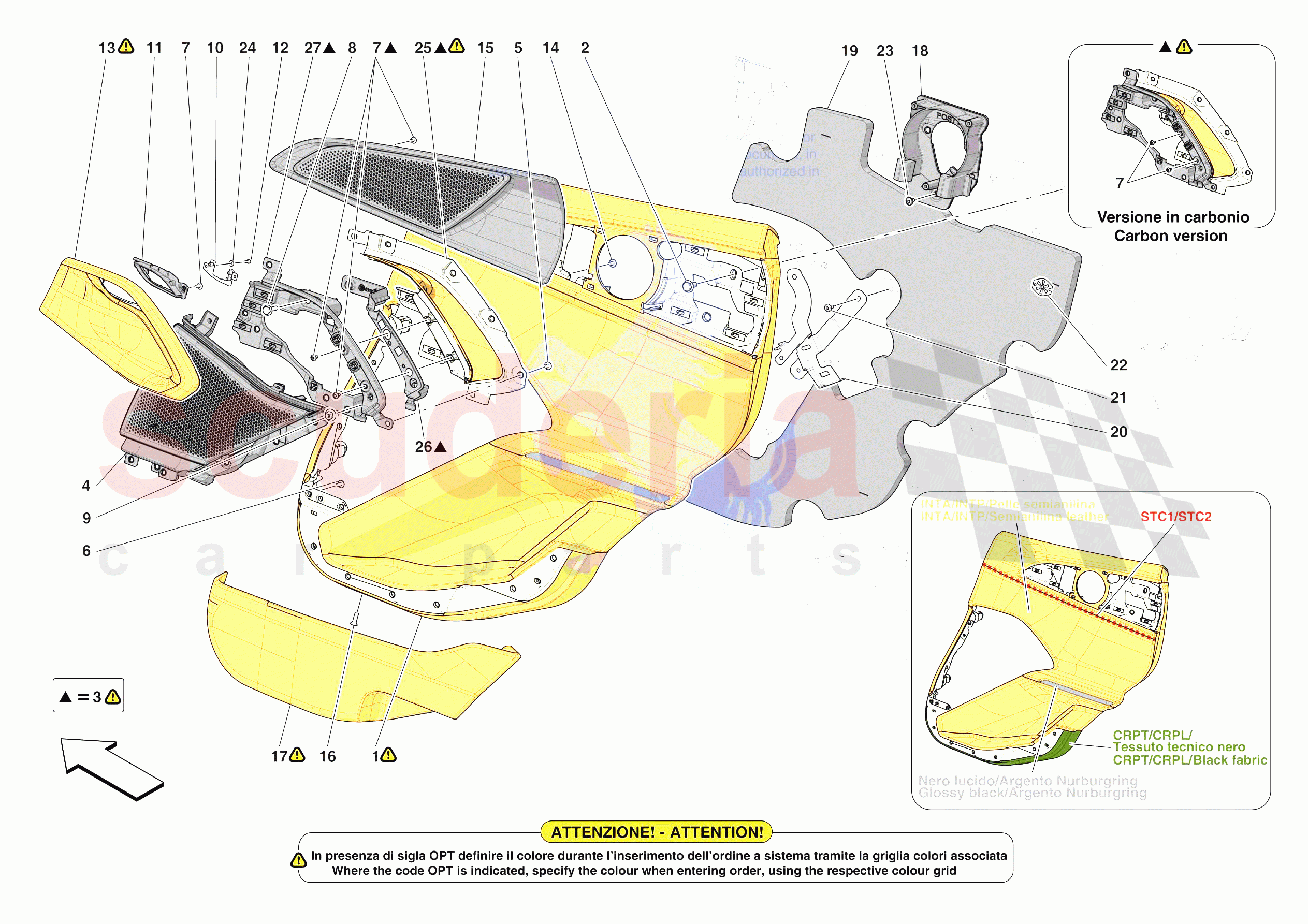

Ferrari Purosangue USA - REAR DOORS - TRIM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	869539	COMPL. RH REAR PANEL	Enquire	To Order
	810809	COMPL. RH REAR PANEL	Enquire	To Order
	810602	COMPL. RH REAR PANEL	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869613	RH REAR DOOR PULL	Enquire	To Order
	817857	RH REAR DOOR PULL	Enquire	To Order
	749213	RH REAR DOOR PULL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	869594	RH REAR WOOFER GRILLE	Enquire	To Order
	869562	RH REAR WOOFER GRILLE	Enquire	To Order
	955346	RH REAR WOOFER GRILLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612826	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869342	RH E-LATCH BUTTON BRACKET	Enquire	To Order
	869267	LH E-LATCH BUTTON BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869279	RH BUTTON PANEL	Enquire	To Order
	869334	LH BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869535	COMPL. RH CENTRE REAR DOOR CARD	Enquire	To Order
	817967	COMPL. RH CENTRE REAR DOOR CARD	Enquire	To Order
	749177	COMPL. RH CENTRE REAR DOOR CARD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910401	COMPL. RH REAR UPPER DOOR CARD	Enquire	To Order
	749062	COMPL. RH REAR UPPER DOOR CARD	Enquire	To Order
	910405	COMPL. RH REAR UPPER DOOR CARD	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869570	COMPL. RH REAR DOOR PANEL POCKET	Enquire	To Order
	817839	COMPL. RH REAR DOOR PANEL POCKET	Enquire	To Order
	817847	COMPL. RH REAR DOOR PANEL POCKET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	869577	RH REAR SPEAKER MOUNT	Enquire	To Order
	869604	LH REAR SPEAKER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	870639	REAR DOOR SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869522	LOWER RH REAR DOOR PULL BRACKET	Enquire	To Order
	869568	LOWER LH REAR DOOR PULL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869607	COMPL. RH REAR DOOR PULL HANDLE	Enquire	To Order
	817861	COMPL. RH REAR DOOR PULL HANDLE	Enquire	To Order
	869544	COMPL. LH REAR DOOR PULL HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	869549	RH REAR DOOR PULL CORE	Enquire	To Order
	869598	LH REAR DOOR PULL CORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	869611	RH REAR DOOR PULL HANDLE MOUNT	Enquire	To Order
	869543	LH REAR DOOR PULL HANDLE MOUNT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	869539	COMPL. RH REAR PANEL	869539 COMPL. RH REAR PANEL INTA for colour selection of upper part in Alcantara - CRPT for colour selection of lower Alcantara part - Bezel in gloss black; INTA- -CRPT- -STC1- -STC2	-	1	Enquire
0001	810809	COMPL. RH REAR PANEL	810809 COMPL. RH REAR PANEL INTA for colour selection of upper part in Alcantara - CRPL for colour selection of lower part in leather - Bezel in gloss black; INTA- -CRPL- -STC1- -STC2	-	1	Enquire
0001	810602	COMPL. RH REAR PANEL	810602 COMPL. RH REAR PANEL INTP for colour selection of upper leather part - CRPT for colour selection of lower Alcantara part - Bezel in gloss black; INTP- -CRPT- -STC1- -STC2	-	1	Enquire
0001	810625	COMPL. RH REAR PANEL	810625 COMPL. RH REAR PANEL INTP for colour selection of upper leather part - CRPL for colour selection of lower part in leather - Bezel in gloss black; INTP- -CRPL- -STC1- -STC2	-	1	Enquire
0001	810832	COMPL. RH REAR PANEL	810832 COMPL. RH REAR PANEL Upper part in semi-aniline leather in Fondente colour - CRPT for colour selection of lower Alcantara part - Bezel in Argento Nurburgring; CRPT- -STC1- -STC2	-	1	Enquire
0001	915304	COMPL. RH REAR PANEL	915304 COMPL. RH REAR PANEL Upper part in semi-aniline leather in Fondente colour - CRPL for colour selection of lower part in leather - Bezel in Argento Nurburgring; CRPL- -STC1- -STC2	-	1	Enquire
0001	910437	COMPL. RH REAR PANEL	910437 COMPL. RH REAR PANEL INTP for colour selection of upper leather part - CRPT for colour selection of lower Alcantara part - Bezel in Argento Nurburgring; INTP- -CRPT- -STC1- -STC2	-	1	Enquire
0001	910442	COMPL. RH REAR PANEL	910442 COMPL. RH REAR PANEL INTP for colour selection of upper leather part - CRPL for colour selection of lower part in leather - Bezel in Argento Nurburgring; INTP- -CRPL- -STC1- -STC2	-	1	Enquire
0001	915164	COMPL. RH REAR PANEL	915164 COMPL. RH REAR PANEL INTA for colour selection of upper part in Alcantara - Lower part in black technical fabric - Bezel in Argento Nurburgring - Version for 'Design' trim variant; INTA- -STC1- -STC2	-	1	Enquire
0001	810855	COMPL. RH REAR PANEL	810855 COMPL. RH REAR PANEL INTP for colour selection of upper leather part - Lower part in black technical fabric - Version for 'Design' trim variant - Bezel in Argento Nurburgring; INTP- -STC1- -STC2	-	1	Enquire
0001	915233	COMPL. RH REAR PANEL	915233 COMPL. RH REAR PANEL Upper part in semi-aniline leather in Fondente colour - Lower part in black technical fabric - Version for 'Design' trim variant - Bezel in Argento Nurburgring; STC1- -STC2	-	1	Enquire
0001	869541	COMPL. LH REAR PANEL	869541 COMPL. LH REAR PANEL INTA for colour selection of upper part in Alcantara - CRPT for colour selection of lower Alcantara part - Bezel in gloss black; INTA- -CRPT- -STC1- -STC2	-	1	Enquire
0001	810533	COMPL. LH REAR PANEL	810533 COMPL. LH REAR PANEL INTA for colour selection of upper part in Alcantara - CRPL for colour selection of lower part in leather - Bezel in gloss black; INTA- -CRPL- -STC1- -STC2	-	1	Enquire
0001	810487	COMPL. LH REAR PANEL	810487 COMPL. LH REAR PANEL INTP for colour selection of upper leather part - CRPT for colour selection of lower Alcantara part - Bezel in gloss black; INTP- -CRPT- -STC1- -STC2	-	1	Enquire
0001	810510	COMPL. LH REAR PANEL	810510 COMPL. LH REAR PANEL INTP for colour selection of upper leather part - CRPL for colour selection of lower part in leather - Bezel in gloss black; INTP- -CRPL- -STC1- -STC2	-	1	Enquire
0001	810556	COMPL. LH REAR PANEL	810556 COMPL. LH REAR PANEL Upper part in semi-aniline leather in Fondente colour - CRPT for colour selection of lower Alcantara part - Bezel in Argento Nurburgring; CRPT- -STC1- -STC2	-	1	Enquire
0001	915080	COMPL. LH REAR PANEL	915080 COMPL. LH REAR PANEL Upper part in semi-aniline leather in Fondente colour - CRPL for colour selection of lower part in leather - Bezel in Argento Nurburgring; CRPL- -STC1- -STC2	-	1	Enquire
0001	910409	COMPL. LH REAR PANEL	910409 COMPL. LH REAR PANEL INTP for colour selection of upper leather part - CRPT for colour selection of lower Alcantara part - Bezel in Argento Nurburgring; INTP- -CRPT- -STC1- -STC2	-	1	Enquire
0001	910410	COMPL. LH REAR PANEL	910410 COMPL. LH REAR PANEL INTP for colour selection of upper leather part - CRPL for colour selection of lower part in leather - Bezel in Argento Nurburgring; INTP- -CRPL- -STC1- -STC2	-	1	Enquire
0001	914978	COMPL. LH REAR PANEL	914978 COMPL. LH REAR PANEL INTA for colour selection of upper part in Alcantara - Lower part in black technical fabric - Bezel in Argento Nurburgring - Version for 'Design' trim variant; INTA- -STC1- -STC2	-	1	Enquire
0001	810579	COMPL. LH REAR PANEL	810579 COMPL. LH REAR PANEL INTP for colour selection of upper leather part - Lower part in black technical fabric - Version for 'Design' trim variant - Bezel in Argento Nurburgring; INTP- -STC1- -STC2	-	1	Enquire
0001	915044	COMPL. LH REAR PANEL	915044 COMPL. LH REAR PANEL Upper part in semi-aniline leather in Fondente colour - Lower part in black technical fabric - Version for 'Design' trim variant - Bezel in Argento Nurburgring; STC1- -STC2	-	1	Enquire
0002	11625824	SCREW	11625824 SCREW M6 X 18	-	6	Enquire
0003	869613	RH REAR DOOR PULL	869613 RH REAR DOOR PULL Leather - Order loose parts; No longer supplied; INTP	-	1	Enquire
0003	817857	RH REAR DOOR PULL	817857 RH REAR DOOR PULL Semi-aniline leather in Fondente colour - Order loose parts; No longer supplied	-	1	Enquire
0003	749213	RH REAR DOOR PULL	749213 RH REAR DOOR PULL Gloss finish carbon version	-	1	Enquire
0003	869548	LH REAR DOOR PULL	869548 LH REAR DOOR PULL Leather - Order loose parts; No longer supplied; INTP	-	1	Enquire
0003	817799	LH REAR DOOR PULL	817799 LH REAR DOOR PULL Semi-aniline leather in Fondente colour - Order loose parts; No longer supplied	-	1	Enquire
0003	749190	LH REAR DOOR PULL	749190 LH REAR DOOR PULL Gloss finish carbon version	-	1	Enquire
0004	869594	RH REAR WOOFER GRILLE	869594 RH REAR WOOFER GRILLE Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0004	869562	RH REAR WOOFER GRILLE	869562 RH REAR WOOFER GRILLE High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0004	955346	RH REAR WOOFER GRILLE	955346 RH REAR WOOFER GRILLE Version for 'Design' trim variant - High End audio version	-	1	Enquire
0004	869547	LH REAR WOOFER GRILLE	869547 LH REAR WOOFER GRILLE Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0004	869605	LH REAR WOOFER GRILLE	869605 LH REAR WOOFER GRILLE High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0004	955345	LH REAR WOOFER GRILLE	955345 LH REAR WOOFER GRILLE Version for 'Design' trim variant - High End audio version	-	1	Enquire
0005	85833700	SCREW	85833700 SCREW M5 X 8	-	42	Enquire
0006	85833700	SCREW	85833700 SCREW M5 X 12	-	10	Enquire
0007	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	22	Enquire
0008	11612826	SCREW	11612826 SCREW M6 X 25	-	4	Enquire
0009	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
0010	869342	RH E-LATCH BUTTON BRACKET	869342 RH E-LATCH BUTTON BRACKET	-	1	Enquire
0010	869267	LH E-LATCH BUTTON BRACKET	869267 LH E-LATCH BUTTON BRACKET	-	1	Enquire
0011	869279	RH BUTTON PANEL	869279 RH BUTTON PANEL	-	1	Enquire
0011	869334	LH BUTTON PANEL	869334 LH BUTTON PANEL	-	1	Enquire
0012	14418074	SCREW	14418074 SCREW M3 X 8	-	10	Enquire
0013	869535	COMPL. RH CENTRE REAR DOOR CARD	869535 COMPL. RH CENTRE REAR DOOR CARD Leather; INTP	-	1	Enquire
0013	817967	COMPL. RH CENTRE REAR DOOR CARD	817967 COMPL. RH CENTRE REAR DOOR CARD Semi-aniline leather in Fondente colour	-	1	Enquire
0013	749177	COMPL. RH CENTRE REAR DOOR CARD	749177 COMPL. RH CENTRE REAR DOOR CARD Gloss finish carbon version	-	1	Enquire
0013	869552	COMPL. LH CENTRE REAR DOOR CARD	869552 COMPL. LH CENTRE REAR DOOR CARD Leather; INTP	-	1	Enquire
0013	817826	COMPL. LH CENTRE REAR DOOR CARD	817826 COMPL. LH CENTRE REAR DOOR CARD Semi-aniline leather in Fondente colour	-	1	Enquire
0013	749154	COMPL. LH CENTRE REAR DOOR CARD	749154 COMPL. LH CENTRE REAR DOOR CARD Gloss finish carbon version	-	1	Enquire
0014	85833700	SCREW	85833700 SCREW M5 X 10	-	6	Enquire
0015	910401	COMPL. RH REAR UPPER DOOR CARD	910401 COMPL. RH REAR UPPER DOOR CARD Gloss black - Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0015	749062	COMPL. RH REAR UPPER DOOR CARD	749062 COMPL. RH REAR UPPER DOOR CARD Gloss finish carbon version - Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0015	910405	COMPL. RH REAR UPPER DOOR CARD	910405 COMPL. RH REAR UPPER DOOR CARD Gloss black - High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0015	749078	COMPL. RH REAR UPPER DOOR CARD	749078 COMPL. RH REAR UPPER DOOR CARD Gloss finish carbon version - High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0015	910388	COMPL. LH REAR UPPER DOOR CARD	910388 COMPL. LH REAR UPPER DOOR CARD Gloss black - Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0015	748981	COMPL. LH REAR UPPER DOOR CARD	748981 COMPL. LH REAR UPPER DOOR CARD Gloss finish carbon version - Not for version with 'Design' trim variant - Not available as spare part; No longer supplied	-	1	Enquire
0015	910400	COMPL. LH REAR UPPER DOOR CARD	910400 COMPL. LH REAR UPPER DOOR CARD Gloss black - High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0015	749001	COMPL. LH REAR UPPER DOOR CARD	749001 COMPL. LH REAR UPPER DOOR CARD Gloss finish carbon version - High End audio version - Not for version with 'Design' trim variant	-	1	Enquire
0015	978272	COMPL. RH REAR UPPER DOOR CARD	978272 COMPL. RH REAR UPPER DOOR CARD Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - High End audio version - Not for version with 'Design' trim variant - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0015	978175	COMPL. LH REAR UPPER DOOR CARD	978175 COMPL. LH REAR UPPER DOOR CARD Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - High End audio version - Not for version with 'Design' trim variant - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0016	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	2	Enquire
0016	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 20	-	2	Enquire
0017	869570	COMPL. RH REAR DOOR PANEL POCKET	869570 COMPL. RH REAR DOOR PANEL POCKET CRPT for colour selection of Alcantara; CRPT	-	1	Enquire
0017	817839	COMPL. RH REAR DOOR PANEL POCKET	817839 COMPL. RH REAR DOOR PANEL POCKET Leather; CRPL	-	1	Enquire
0017	817847	COMPL. RH REAR DOOR PANEL POCKET	817847 COMPL. RH REAR DOOR PANEL POCKET Black technical fabric - Version for 'Design' trim variant	-	1	Enquire
0017	869624	COMPL. LH REAR DOOR PANEL POCKET	869624 COMPL. LH REAR DOOR PANEL POCKET CRPT for colour selection of Alcantara; CRPT	-	1	Enquire
0017	817785	COMPL. LH REAR DOOR PANEL POCKET	817785 COMPL. LH REAR DOOR PANEL POCKET Leather; CRPL	-	1	Enquire
0017	817792	COMPL. LH REAR DOOR PANEL POCKET	817792 COMPL. LH REAR DOOR PANEL POCKET Black technical fabric - Version for 'Design' trim variant	-	1	Enquire
0018	869577	RH REAR SPEAKER MOUNT	869577 RH REAR SPEAKER MOUNT High End audio version	-	1	Enquire
0018	869604	LH REAR SPEAKER MOUNT	869604 LH REAR SPEAKER MOUNT High End audio version	-	1	Enquire
0019	870639	REAR DOOR SOUNDPROOFING	870639 REAR DOOR SOUNDPROOFING	-	2	Enquire
0020	869522	LOWER RH REAR DOOR PULL BRACKET	869522 LOWER RH REAR DOOR PULL BRACKET	-	1	Enquire
0020	869568	LOWER LH REAR DOOR PULL BRACKET	869568 LOWER LH REAR DOOR PULL BRACKET	-	1	Enquire
0021	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14 M5 X 14	-	6	Enquire
0022	67315400	WASHER	67315400 WASHER	-	6	Enquire
0023	85833700	SCREW	85833700 SCREW M5 X 12	-	6	Enquire
0023	85833700	SCREW	85833700 SCREW M5 X 12	-	6	Enquire
0024	14496101	WASHER	14496101 WASHER D. 3.20 - 7 X 0.5	-	10	Enquire
0025	869607	COMPL. RH REAR DOOR PULL HANDLE	869607 COMPL. RH REAR DOOR PULL HANDLE Leather; INTP	-	1	Enquire
0025	817861	COMPL. RH REAR DOOR PULL HANDLE	817861 COMPL. RH REAR DOOR PULL HANDLE Semi-aniline leather in Fondente colour; INTS	-	1	Enquire
0025	869544	COMPL. LH REAR DOOR PULL HANDLE	869544 COMPL. LH REAR DOOR PULL HANDLE Leather; INTP	-	1	Enquire
0025	817805	COMPL. LH REAR DOOR PULL HANDLE	817805 COMPL. LH REAR DOOR PULL HANDLE Semi-aniline leather in Fondente colour; INTS	-	1	Enquire
0026	869549	RH REAR DOOR PULL CORE	869549 RH REAR DOOR PULL CORE	-	1	Enquire
0026	869598	LH REAR DOOR PULL CORE	869598 LH REAR DOOR PULL CORE	-	1	Enquire
0027	869611	RH REAR DOOR PULL HANDLE MOUNT	869611 RH REAR DOOR PULL HANDLE MOUNT	-	1	Enquire
0027	869543	LH REAR DOOR PULL HANDLE MOUNT	869543 LH REAR DOOR PULL HANDLE MOUNT	-	1	Enquire
