Name: FRONT DOOR SUBSTRUCTURE
Rating: 4.8 (1 reviews)

View All

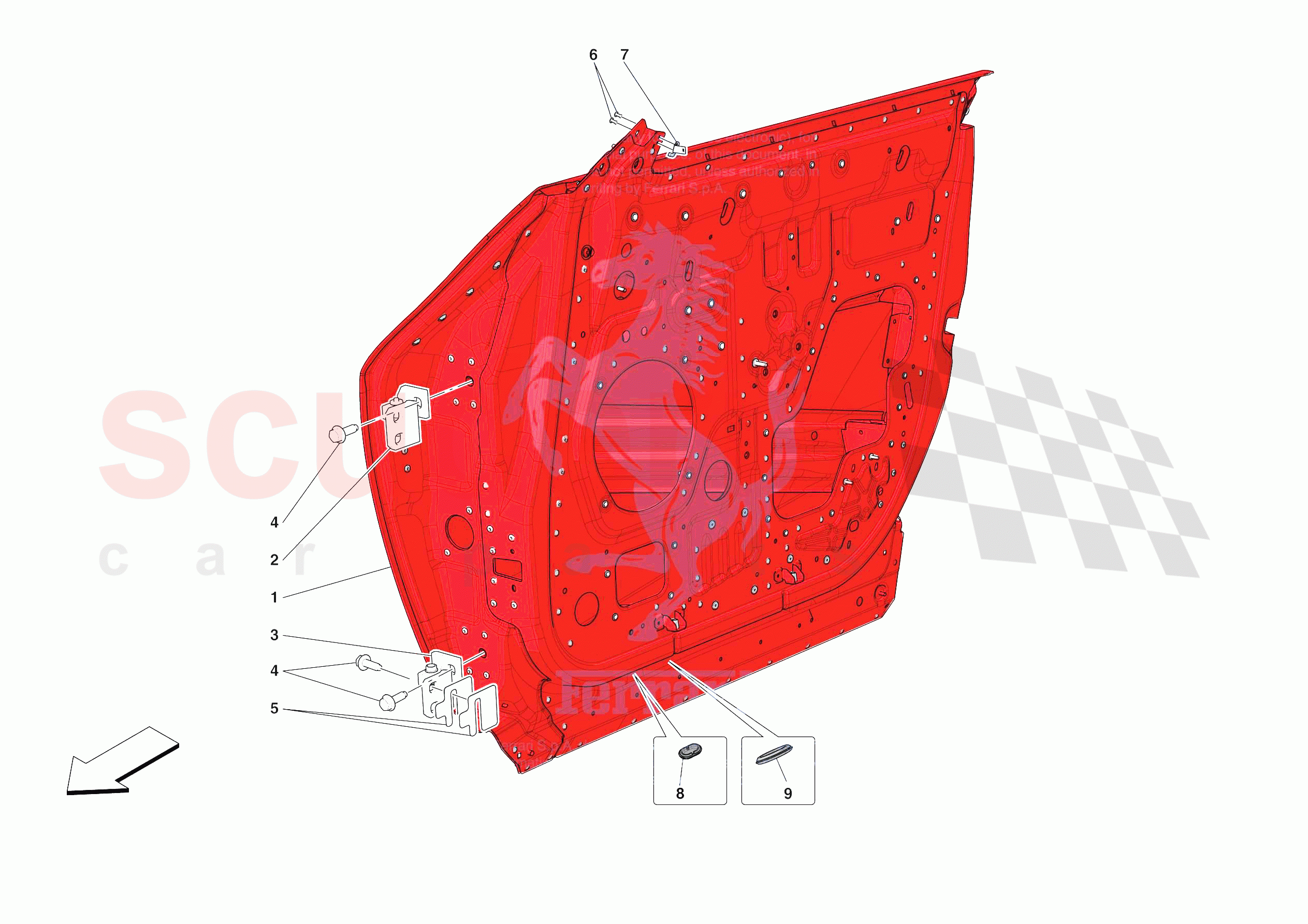

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14643890	RIVET	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	776788	RH MIRROR TRIANGLE TRIM BRACKET	$24.34	To Order
	776785	LH MIRROR TRIANGLE TRIM BRACKET	$24.34	To Order

Photo	Part No	Description	Price (each)	Stock
	914814	SLOTTED PLUG	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	276467	PLUG	$3.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985816769	SKINNED RH FRONT DOOR	985816769 SKINNED RH FRONT DOOR	$11,882.84	1
0001	985816564	SKINNED LH FRONT DOOR	985816564 SKINNED LH FRONT DOOR	$12,490.84	1
0002	83856100	RH DOOR HINGE	83856100 RH DOOR HINGE	$51.33	1
0002	83865100	LH DOOR HINGE	83865100 LH DOOR HINGE	$51.33	1
0003	83856000	RH DOOR HINGE	83856000 RH DOOR HINGE	$51.33	1
0003	83864900	LH DOOR HINGE	83864900 LH DOOR HINGE	$51.33	1
0004	18754324	SCREW	18754324 SCREW M10 X 1.25 X 32	$1.56	12
0005	88927700	SHIM	88927700 SHIM Th. 1 mm	$2.43	4
0005	88927800	SHIM	88927800 SHIM Th. 1.5 mm	$2.25	4
0006	14643890	RIVET	14643890 RIVET	$0.28	4
0007	776788	RH MIRROR TRIANGLE TRIM BRACKET	776788 RH MIRROR TRIANGLE TRIM BRACKET	$24.34	1
0007	776785	LH MIRROR TRIANGLE TRIM BRACKET	776785 LH MIRROR TRIANGLE TRIM BRACKET	$24.34	1
0008	914814	SLOTTED PLUG	914814 SLOTTED PLUG D14 X 18	$3.00	2
0009	276467	PLUG	276467 PLUG	$3.13	2
