Name: DASHBOARD - DUCTS -NOT FOR RHD-
Rating: 4.1 (1 reviews)

View All

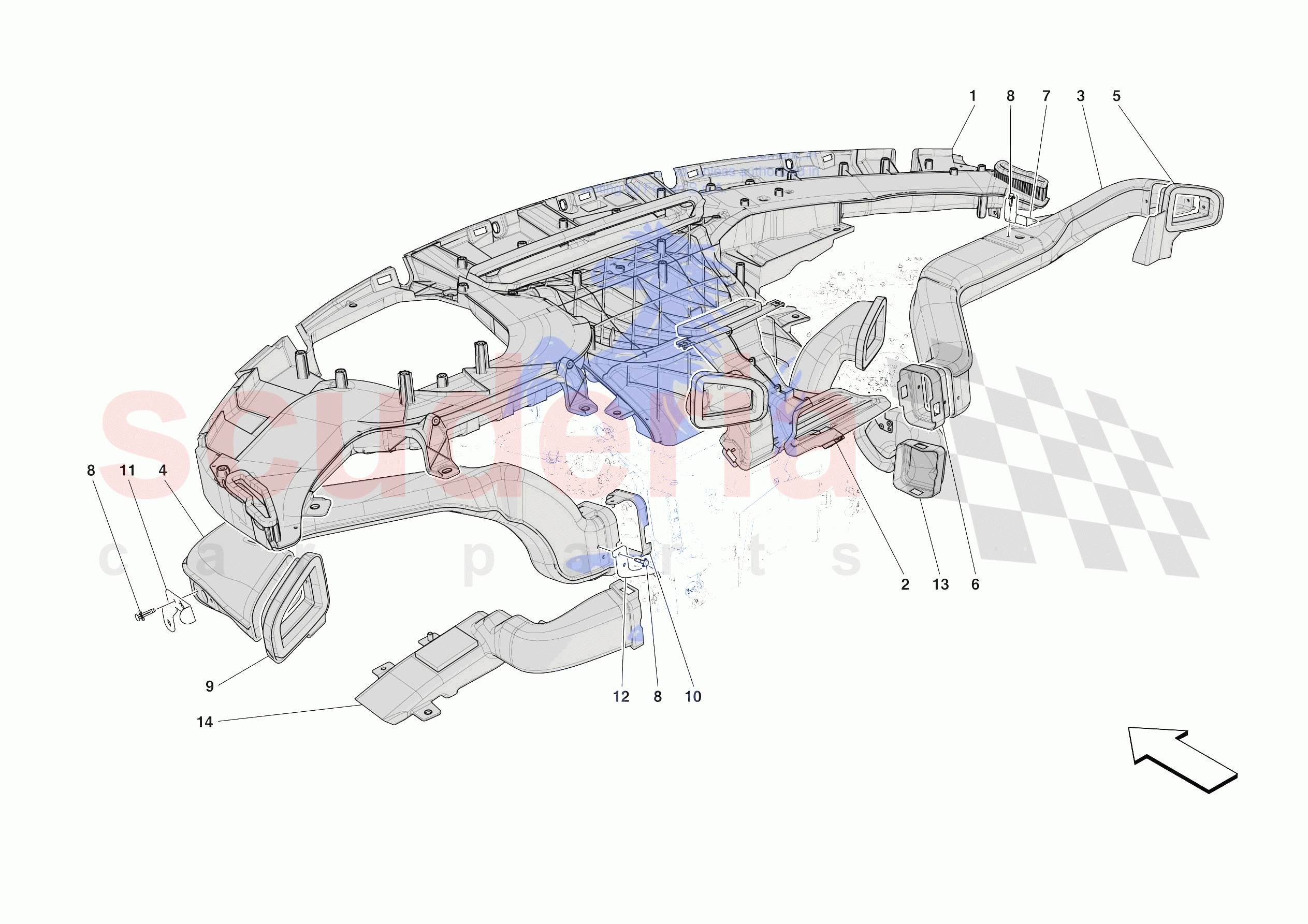

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	845614	RH PASSENGER AIR DUCT	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	845615	LH DRIVER AIR DUCT	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	888911	RH PASSENGER VENT CONNECTOR	$8.44	To Order

Photo	Part No	Description	Price (each)	Stock
	888918	RH HVAC CONNECTOR	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	888909	PASSENGER SIDE TEMPERATURE SENSOR FASTENER PLATE	$10.31	To Order

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	888905	LH DRIVER VENT CONNECTOR	$8.44	To Order

Photo	Part No	Description	Price (each)	Stock
	911509	DUCT REINFORCEMENT FRAME	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	888904	DRIVER SIDE TEMPERATURE SENSOR FASTENER PLATE	$13.61	To Order

Photo	Part No	Description	Price (each)	Stock
	888902	DRIVER SIDE DUCT FASTENER BRACKET	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	845430	RH FRONT FOOTWELL AIR DUCT	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	845380	LH FRONT FOOTWELL AIR DUCT	$258.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	841923	DEFROSTER DUCT	841923 DEFROSTER DUCT Not available as spare part; No longer supplied	$537.01	1
0001	901429	DEFROSTER DUCT	901429 DEFROSTER DUCT High End audio version	$659.38	1
0002	850017	DIFFUSER VENT DUCT	850017 DIFFUSER VENT DUCT	$215.00	1
0002	850029	DIFFUSER VENT DUCT	850029 DIFFUSER VENT DUCT Version with air quality sensor	$215.00	1
0003	845614	RH PASSENGER AIR DUCT	845614 RH PASSENGER AIR DUCT	$172.00	1
0004	845615	LH DRIVER AIR DUCT	845615 LH DRIVER AIR DUCT	$172.00	1
0005	888911	RH PASSENGER VENT CONNECTOR	888911 RH PASSENGER VENT CONNECTOR	$8.44	1
0006	888918	RH HVAC CONNECTOR	888918 RH HVAC CONNECTOR	$18.62	1
0007	888909	PASSENGER SIDE TEMPERATURE SENSOR FASTENER PLATE	888909 PASSENGER SIDE TEMPERATURE SENSOR FASTENER PLATE	$10.31	1
0008	900472	FASTENER BUTTON	900472 FASTENER BUTTON	$0.52	10
0009	888905	LH DRIVER VENT CONNECTOR	888905 LH DRIVER VENT CONNECTOR	$8.44	1
0010	911509	DUCT REINFORCEMENT FRAME	911509 DUCT REINFORCEMENT FRAME	$18.62	1
0011	888904	DRIVER SIDE TEMPERATURE SENSOR FASTENER PLATE	888904 DRIVER SIDE TEMPERATURE SENSOR FASTENER PLATE	$13.61	1
0012	888902	DRIVER SIDE DUCT FASTENER BRACKET	888902 DRIVER SIDE DUCT FASTENER BRACKET	$11.59	1
0013	845430	RH FRONT FOOTWELL AIR DUCT	845430 RH FRONT FOOTWELL AIR DUCT	$136.16	1
0014	845380	LH FRONT FOOTWELL AIR DUCT	845380 LH FRONT FOOTWELL AIR DUCT	$258.00	1
