Name: COOLING SYSTEM PIPES
Rating: 5.0 (1 reviews)

View All

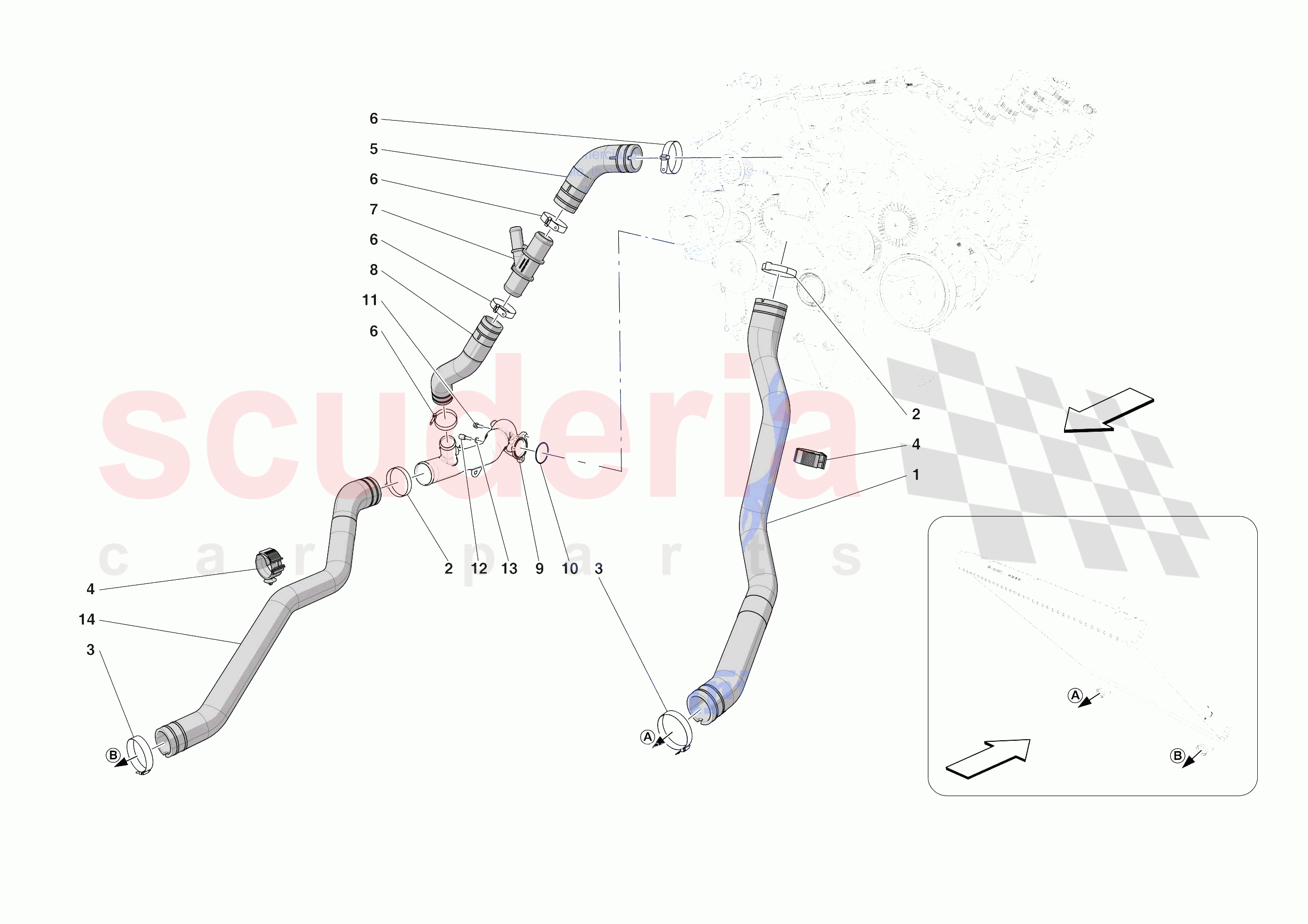

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	841341	HOSE FROM ENGINE TO RADIATOR	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	278577	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	861503	PIPE FROM THERMOSTAT TO 3-WAY CONNECTOR	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	262113	COLLAR	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	982201	3-WAY UNION	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	948881	HOSE FROM BYPASS	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	946572	MULTIPLE CONNECTOR ON ENGINE	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	841340	HOSE FROM RADIATOR TO MULTIPLE CONNECTOR	$128.35	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	841341	HOSE FROM ENGINE TO RADIATOR	841341 HOSE FROM ENGINE TO RADIATOR	$150.82	1
0002	13000790	SCREW COLLAR	13000790 SCREW COLLAR	$0.81 MSRP: ~~2.25~~ (64% off)	2
0003	262114	HOSE CLAMP ARRIVING SOON	262114 HOSE CLAMP ARRIVING SOON	$1.20	2
0004	278577	CLIP	278577 CLIP	$1.85	2
0005	861503	PIPE FROM THERMOSTAT TO 3-WAY CONNECTOR	861503 PIPE FROM THERMOSTAT TO 3-WAY CONNECTOR	$57.33	1
0006	262113	COLLAR	262113 COLLAR	$1.85	4
0007	982201	3-WAY UNION	982201 3-WAY UNION	$37.25	1
0008	948881	HOSE FROM BYPASS	948881 HOSE FROM BYPASS	$77.39	1
0009	946572	MULTIPLE CONNECTOR ON ENGINE	946572 MULTIPLE CONNECTOR ON ENGINE	$930.65	1
0010	154191	GASKET	154191 GASKET	$1.47 MSRP: ~~2.52~~ (41.7% off)	1
0011	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
0012	339948	STUD BOLT	339948 STUD BOLT	$20.84	2
0013	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
0014	841340	HOSE FROM RADIATOR TO MULTIPLE CONNECTOR	841340 HOSE FROM RADIATOR TO MULTIPLE CONNECTOR	$128.35	1
