Name: EXHAUST SYSTEM - FRONT SECTION
Rating: 4.0 (1 reviews)

EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari Purosangue USA

View All

Ferrari Purosangue USA - EXHAUST SYSTEM - FRONT SECTION

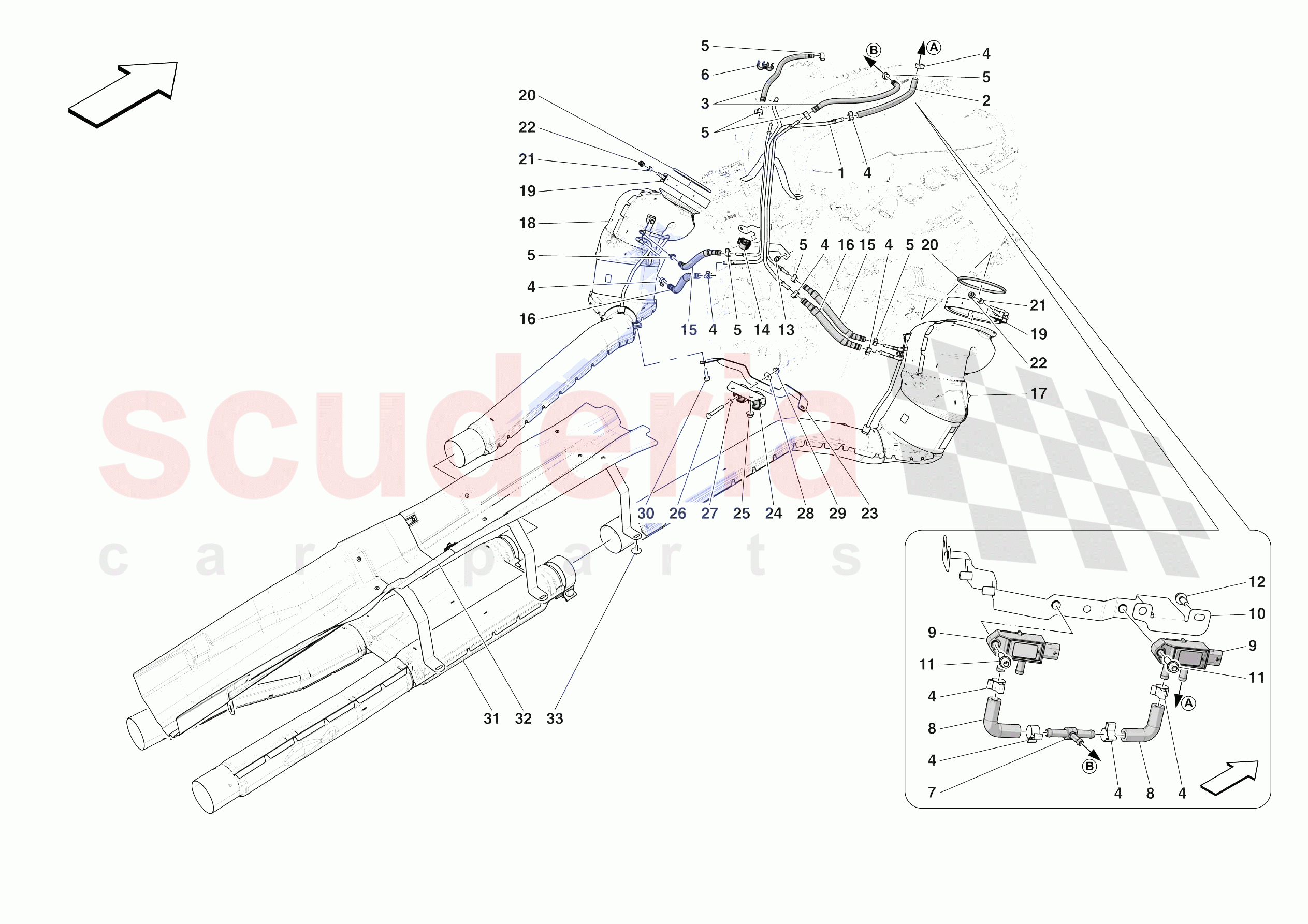

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	772706	COMPL. PIPES	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	838804	RUBBER PIPES	$29.30	To Order
	880066	RUBBER PIPES	$34.38	To Order

Photo	Part No	Description	Price (each)	Stock
	807902	RUBBER PIPES	$26.11	To Order
	807845	RUBBER PIPES	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	831711	COMPL. SWIVEL CLIP	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	807844	3-WAY CONNECTOR	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	340700	RUBBER PIPE	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	340691	GPF PRESSURE SENSOR	$131.74	To Order

Photo	Part No	Description	Price (each)	Stock
	808103	GPF SENSOR BRACKET	$108.92	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	868388	COMPL. RUBBER PIPE	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	868570	COMPL. RUBBER PIPE	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	824846	CATALYTIC CONVERTER WITH COMPL. RH GPF	$32,512.23	To Order

Photo	Part No	Description	Price (each)	Stock
	824858	CATALYTIC CONVERTER WITH COMPL. LH GPF	$32,503.62	To Order

Photo	Part No	Description	Price (each)	Stock
	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	275465	GASKET	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	292946	SPACER	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	292945	NUT	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	964534	CATALYTIC CONVERTER MOUNTING BRACKET	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	964539	COMPL. CATALYTIC CONVERTER MOUNTING BRACKET	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	834658	COMPL. CENTRE SILENCER	$1,885.57	To Order

Photo	Part No	Description	Price (each)	Stock
	941988	COMPL. TRANSMISSION SHAFT SHIELD	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	772706	COMPL. PIPES	772706 COMPL. PIPES For vehicles up to Ass.ly No. 212806 also order rubber pipe 880066 ref. 2 and rubber pipe 807845 ref.3	$415.69	1
0002	838804	RUBBER PIPES	838804 RUBBER PIPES No longer supplied - Replaced by 880066	$29.30	2
0002	880066	RUBBER PIPES	880066 RUBBER PIPES For vehicles up to Ass.ly No. 212806 also order rubber pipe 807845 ref. 3 and complete pipe set 772706 ref. 1	$34.38	2
0003	807902	RUBBER PIPES	807902 RUBBER PIPES No longer supplied - Replaced by 807845	$26.11	2
0003	807845	RUBBER PIPES	807845 RUBBER PIPES For vehicles up to Ass.ly No. 212806 also order rubber pipe 880066 ref. 2 and complete pipe set 772706 ref. 1	$27.21	2
0004	13125470	COLLAR	13125470 COLLAR	$0.65	16
0005	13126970	COLLAR	13126970 COLLAR	$1.56	8
0006	831711	COMPL. SWIVEL CLIP	831711 COMPL. SWIVEL CLIP	$0.83	2
0007	807844	3-WAY CONNECTOR	807844 3-WAY CONNECTOR	$74.52	2
0008	340700	RUBBER PIPE	340700 RUBBER PIPE	$17.18	4
0009	340691	GPF PRESSURE SENSOR	340691 GPF PRESSURE SENSOR	$131.74	4
0010	808103	GPF SENSOR BRACKET	808103 GPF SENSOR BRACKET	$108.92	1
0011	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	4
0012	231619	SCREW	231619 SCREW M6 X 18	$0.31	4
0013	248334	SCREW	248334 SCREW M6 X 12	$0.68	6
0014	259508	CLIP	259508 CLIP 1 compartment-	$0.63	1
0015	868388	COMPL. RUBBER PIPE	868388 COMPL. RUBBER PIPE	$48.12	2
0016	868570	COMPL. RUBBER PIPE	868570 COMPL. RUBBER PIPE	$49.73	2
0017	824846	CATALYTIC CONVERTER WITH COMPL. RH GPF	824846 CATALYTIC CONVERTER WITH COMPL. RH GPF In case of replacement, also order LH catalytic converter with GPF 824858	$32,512.23	1
0018	824858	CATALYTIC CONVERTER WITH COMPL. LH GPF	824858 CATALYTIC CONVERTER WITH COMPL. LH GPF In case of replacement, also order RH catalytic converter with GPF 824846	$32,503.62	1
0019	290743	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	290743 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD	$107.49	2
0020	275465	GASKET	275465 GASKET	$67.38 MSRP: ~~106.80~~ (36.9% off)	2
0021	292946	SPACER	292946 SPACER	$7.93	2
0022	292945	NUT	292945 NUT M8 X1.25 X 11	$13.70	2
0023	964534	CATALYTIC CONVERTER MOUNTING BRACKET	964534 CATALYTIC CONVERTER MOUNTING BRACKET	$55.89	1
0024	964539	COMPL. CATALYTIC CONVERTER MOUNTING BRACKET	964539 COMPL. CATALYTIC CONVERTER MOUNTING BRACKET	$186.33	1
0025	14040711	NUT	14040711 NUT	$0.41	2
0026	16044321	SCREW	16044321 SCREW M8 X 55	$0.58 MSRP: ~~1.35~~ (57% off)	2
0027	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
0028	12642078	WASHER	12642078 WASHER	$0.97	2
0029	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	2
0030	16287524	SCREW	16287524 SCREW M8 X 25	$1.36	2
0031	834658	COMPL. CENTRE SILENCER	834658 COMPL. CENTRE SILENCER	$1,885.57	1
0032	941988	COMPL. TRANSMISSION SHAFT SHIELD	941988 COMPL. TRANSMISSION SHAFT SHIELD	$387.02	1
0033	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	$6.18	7
