Engine Injection Control

Ferrari Purosangue USA

Find Your Part

Ferrari Purosangue USA - ENGINE INJECTION CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
935117 IGNITION ECU $1,883.78 To Order
Photo Part No Description Price (each) Stock
885758 IGNITION ECU MOUNTING BRACKET $44.91 To Order
Photo Part No Description Price (each) Stock
308398 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
942601 ION ECU CASING $1,460.17 To Order
941421 ION ECU CASING $1,444.12 To Order
Photo Part No Description Price (each) Stock
340221 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
841336 SQUARE MESH GRILLE FOR MASS AIR FLOW SENSOR $12.32 To Order
Photo Part No Description Price (each) Stock
327132 ADHESIVE FOAM $24.05 To Order
Photo Part No Description Price (each) Stock
845077 INTAKE LINE AIR FLOW SENSOR HOUSING $60.96 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
297280 AIR FLOW SENSOR $165.23 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
900284 HOSE SCREW COLLAR D.80-100 X 9 $6.13 To Order
Photo Part No Description Price (each) Stock
778398 COMPL. RH AIR INTAKE HOSE UNION $240.67 To Order
778398 COMPL. RH AIR INTAKE HOSE UNION $240.67 To Order
778398 COMPL. RH AIR INTAKE HOSE UNION $240.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
778496 COMPL. LH AIR INTAKE HOSE UNION $240.67 To Order
778496 COMPL. LH AIR INTAKE HOSE UNION $240.67 To Order
778496 COMPL. LH AIR INTAKE HOSE UNION $240.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
787778 FRONT OXYGEN SENSOR $164.48 To Order
Photo Part No Description Price (each) Stock
787780 REAR OXYGEN SENSOR $135.90 To Order
Photo Part No Description Price (each) Stock
850280 OXYGEN SENSOR CABLE SPOOL $13.63 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.66 IN STOCK
Photo Part No Description Price (each) Stock
206739 CLAMP $8.44 To Order
Photo Part No Description Price (each) Stock
10418301 BRACKET $0.45 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
85141400 CLIP $0.66 IN STOCK
Photo Part No Description Price (each) Stock
999769 LAMBDA PLUG MOUNTING BRACKET $38.49 To Order
Photo Part No Description Price (each) Stock
997445 COILED PIPE $174.03 To Order
Photo Part No Description Price (each) Stock
888005 LAMBDA PIPE PLUG $4.55 To Order
Photo Part No Description Price (each) Stock
262116 COLLAR $2.95 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
801866 CLAMP $0.83 To Order
View All

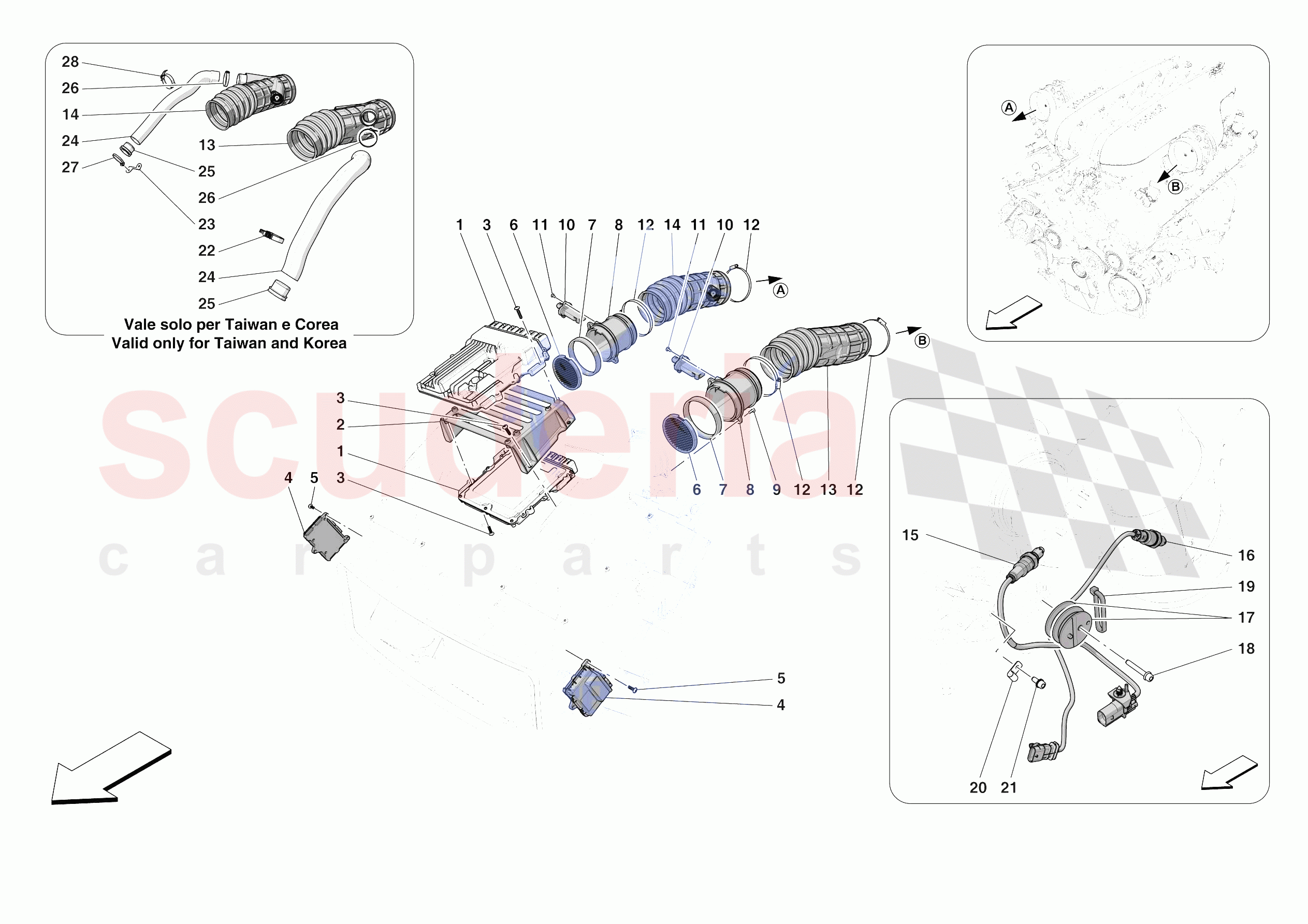

ENGINE INJECTION CONTROL of Ferrari Ferrari Purosangue USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 935117
IGNITION ECU
Unprogrammed 		$1,883.78 2
0002 885758
IGNITION ECU MOUNTING BRACKET 		$44.91 1
0003 308398
SCREW 		$0.47 12
0004 942601
ION ECU CASING
Applies until depletion; Unprogrammed 		$1,460.17 2
0004 941421
ION ECU CASING
For vehicles up to Ass.ly No. 221177, replace as a pair; Applicable after depletion of 942601; Unprogrammed 		$1,444.12 2
0005 340221
SCREW
M6 X 18 		$0.79 6
0006 841336
SQUARE MESH GRILLE FOR MASS AIR FLOW SENSOR 		$12.32 2
0007 327132
ADHESIVE FOAM 		$24.05 2
0008 845077
INTAKE LINE AIR FLOW SENSOR HOUSING 		$60.96 2
0009 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 4
0010 297280
AIR FLOW SENSOR
IN STOCK 		$165.23 2
0011 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 4
0012 900284
HOSE SCREW COLLAR D.80-100 X 9 		$6.13 4
0013 778398
COMPL. RH AIR INTAKE HOSE UNION
Not for Taiwan and Korea 		$240.67 1
0013 778398
COMPL. RH AIR INTAKE HOSE UNION 		$240.67 1
0013 778398
COMPL. RH AIR INTAKE HOSE UNION 		$240.67 1
0013 999556
COMPL. RH AIR INTAKE HOSE UNION
Applicable for Taiwan and Korea only 		$385.09 1
0014 778496
COMPL. LH AIR INTAKE HOSE UNION
Not for Taiwan and Korea 		$240.67 1
0014 778496
COMPL. LH AIR INTAKE HOSE UNION 		$240.67 1
0014 778496
COMPL. LH AIR INTAKE HOSE UNION 		$240.67 1
0014 999553
COMPL. LH AIR INTAKE HOSE UNION
Applicable for Taiwan and Korea only 		$385.09 1
0015 787778
FRONT OXYGEN SENSOR 		$164.48 2
0016 787780
REAR OXYGEN SENSOR 		$135.90 2
0017 850280
OXYGEN SENSOR CABLE SPOOL 		$13.63 4
0018 231625
SCREW
L. 40 mm
IN STOCK 		$0.66 2
0019 206739
CLAMP 		$8.44 4
0020 10418301
BRACKET 		$0.45 2
0021 248334
SCREW
M6 X 14 		$0.68 2
0022 85141400
CLIP
Applicable for Taiwan and Korea only
IN STOCK 		$0.66 1
0023 999769
LAMBDA PLUG MOUNTING BRACKET
Applicable for Taiwan and Korea only 		$38.49 1
0024 997445
COILED PIPE
Applicable for Taiwan and Korea only 		$174.03 2
0025 888005
LAMBDA PIPE PLUG
Applicable for Taiwan and Korea only 		$4.55 2
0026 262116
COLLAR
Applicable for Taiwan and Korea only 		$2.95 4
0027 303385
CLIP
170 mm
IN STOCK 		$0.29 1
0028 801866
CLAMP
Applicable for Taiwan and Korea only 		$0.83 1
