CRANKCASE

Find Your Part

Ferrari Purosangue Europe RH - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
921985 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $10,835.45 To Order
Photo Part No Description Price (each) Stock
266366 CYLINDER SLEEVE $304.39 To Order
Photo Part No Description Price (each) Stock
186251 O-RING $2.58 To Order
Photo Part No Description Price (each) Stock
802590 STUD BOLT CRANKCASE $15.17 To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.97 To Order
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $6.66 To Order
Photo Part No Description Price (each) Stock
208451 INSPECTION HATCH COVER $37.25 To Order
Photo Part No Description Price (each) Stock
317312 GASKET $3.52 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
219283 STUD BOLT $17.63 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13547234 STUD BOLT $15.66 To Order
Photo Part No Description Price (each) Stock
254979 STUD BOLT $2.54 To Order
Photo Part No Description Price (each) Stock
13546934 STUD BOLT $1.78 To Order
Photo Part No Description Price (each) Stock
100052 CENTERING DOWEL $2.37 To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.45 To Order
Photo Part No Description Price (each) Stock
234002 CHAIN COOLING NOZZLE $123.54 To Order
Photo Part No Description Price (each) Stock
137192 O-RING $0.37 To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $6.95 To Order
Photo Part No Description Price (each) Stock
175611 CENTERING DOWEL $1.78 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $3.32 To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
943980 COMPL. PISTON COOLING JET $47.28 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $52.94 To Order
Photo Part No Description Price (each) Stock
13546834 STUD BOLT $1.65 To Order
Photo Part No Description Price (each) Stock
134704 O-RING $0.15 To Order
Photo Part No Description Price (each) Stock
300580 COMPL. VALVE HOLDER $288.81 To Order
Photo Part No Description Price (each) Stock
154691 GASKET $1.77 To Order
Photo Part No Description Price (each) Stock
13026924 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
212592 PUMP ARRAY DRIVE SHAFT $256.72 To Order
Photo Part No Description Price (each) Stock
155996 BEARING $13.16 To Order
Photo Part No Description Price (each) Stock
11381076 SEEGER RING $1.78 To Order
Photo Part No Description Price (each) Stock
902208 SEEGER RING FOR SHAFT $0.29 To Order
Photo Part No Description Price (each) Stock
186272 O-RING $0.31 To Order
Photo Part No Description Price (each) Stock
184384 GASKET $40.11 To Order
Photo Part No Description Price (each) Stock
257379 STUD BOLT $11.73 To Order
Photo Part No Description Price (each) Stock
282401 EXPANSION CAP $35.82 To Order
Photo Part No Description Price (each) Stock
187162 CENTRAL ENGINE OIL FILTER $33.70 To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $3.03 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $20.84 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED PLUG M22 X 1.5 $6.26 To Order
Photo Part No Description Price (each) Stock
10261860 GASKET $0.45 To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.96 To Order
Photo Part No Description Price (each) Stock
959229 STARTER MOTOR SHIELD MOUNTING BRACKET $136.16 To Order
Photo Part No Description Price (each) Stock
902180 PIN FOR SPRING $6.66 To Order
View All

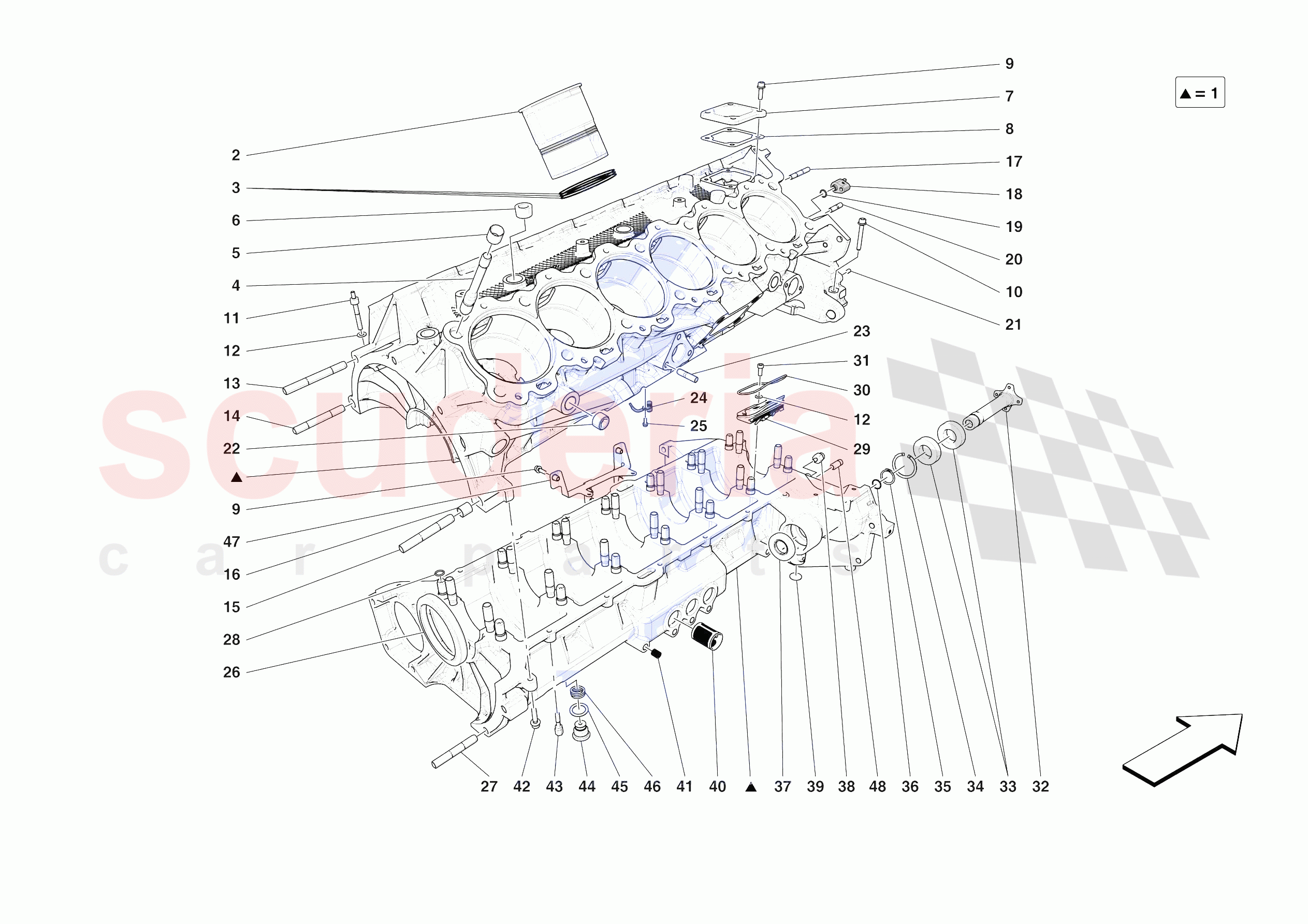

CRANKCASE of Ferrari Ferrari Purosangue Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 921985
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY 		$10,835.45 1
0002 266366
CYLINDER SLEEVE
D. 94 		$304.39 (34.7% off) 12
0003 186251
O-RING
Also included in engine gasket set 		$2.58 (19.4% off) 36
0004 802590
STUD BOLT CRANKCASE 		$15.17 28
0005 185360
CENTERING DOWEL 		$2.97 4
0006 282753
THREADED PLUG 		$6.66 9
0007 208451
INSPECTION HATCH COVER 		$37.25 1
0008 317312
GASKET
Also included in engine gasket set 		$3.52 1
0009 231619
SCREW
M6 X 20 		$0.31 4
0010 231624
SCREW
M6 X 45 		$0.44 1
0011 219283
STUD BOLT 		$17.63 1
0012 11197774
WASHER 		$0.06 (80% off) 15
0013 13547234
STUD BOLT
M10 X 1.25 X 20 		$15.66 1
0014 254979
STUD BOLT
Shank length 55 mm 		$2.54 1
0015 13546934
STUD BOLT
Shank length 50 mm 		$1.78 1
0016 100052
CENTERING DOWEL 		$2.37 4
0017 13543824
STUD BOLT
M8 X 16 		$3.45 1
0018 234002
CHAIN COOLING NOZZLE 		$123.54 1
0019 137192
O-RING
Also included in engine gasket set 		$0.37 (26% off) 1
0020 13543124
STUD BOLT
M8 X 16 		$6.95 1
0021 175611
CENTERING DOWEL 		$1.78 2
0022 127635
THREADED PLUG
M18 X 11 X 1.5 		$3.32 (20.4% off) 5
0023 13516824
STUD BOLT 		$0.50 (60% off) 3
0024 943980
COMPL. PISTON COOLING JET 		$47.28 12
0025 315493
SCREW
M4 X 10 		$1.17 12
0026 200323
REAR MAIN OIL SEALING RING D.80-100X10
Also included in engine gasket set 		$52.94 (21.1% off) 1
0027 13546834
STUD BOLT
Shank length 45 mm 		$1.65 4
0028 134704
O-RING
Also included in engine gasket set 		$0.15 (85% off) 28
0029 300580
COMPL. VALVE HOLDER 		$288.81 6
0030 154691
GASKET
Also included in engine gasket set 		$1.77 (26.3% off) 6
0031 13026924
SCREW
M6 X 14 		$0.31 12
0032 212592
PUMP ARRAY DRIVE SHAFT 		$256.72 1
0033 155996
BEARING 		$13.16 3
0034 11381076
SEEGER RING 		$1.78 2
0035 902208
SEEGER RING FOR SHAFT 		$0.29 1
0036 186272
O-RING
Also included in engine gasket set 		$0.31 (58.7% off) 1
0037 184384
GASKET
Also included in engine gasket set 		$40.11 1
0038 257379
STUD BOLT 		$11.73 1
0039 282401
EXPANSION CAP 		$35.82 1
0040 187162
CENTRAL ENGINE OIL FILTER 		$33.70 3
0041 13525770
THREADED INSERT 		$3.03 (17.4% off) 5
0042 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 13
0043 339948
STUD BOLT
H. 14 mm 		$20.84 2
0044 104280
MAGNETIC THREADED PLUG M22 X 1.5 		$6.26 (9.3% off) 1
0045 10261860
GASKET
Also included in engine gasket set 		$0.45 (55% off) 1
0046 223577
THREADED INSERT M22 X 1.5 X 9MM 		$5.96 1
0047 959229
STARTER MOTOR SHIELD MOUNTING BRACKET 		$136.16 1
0048 902180
PIN FOR SPRING 		$6.66 1
