Name: TIMING SYSTEM DRIVE
Rating: 4.1 (1 reviews)

TIMING SYSTEM DRIVE of Ferrari Ferrari Purosangue Europe RH

View All

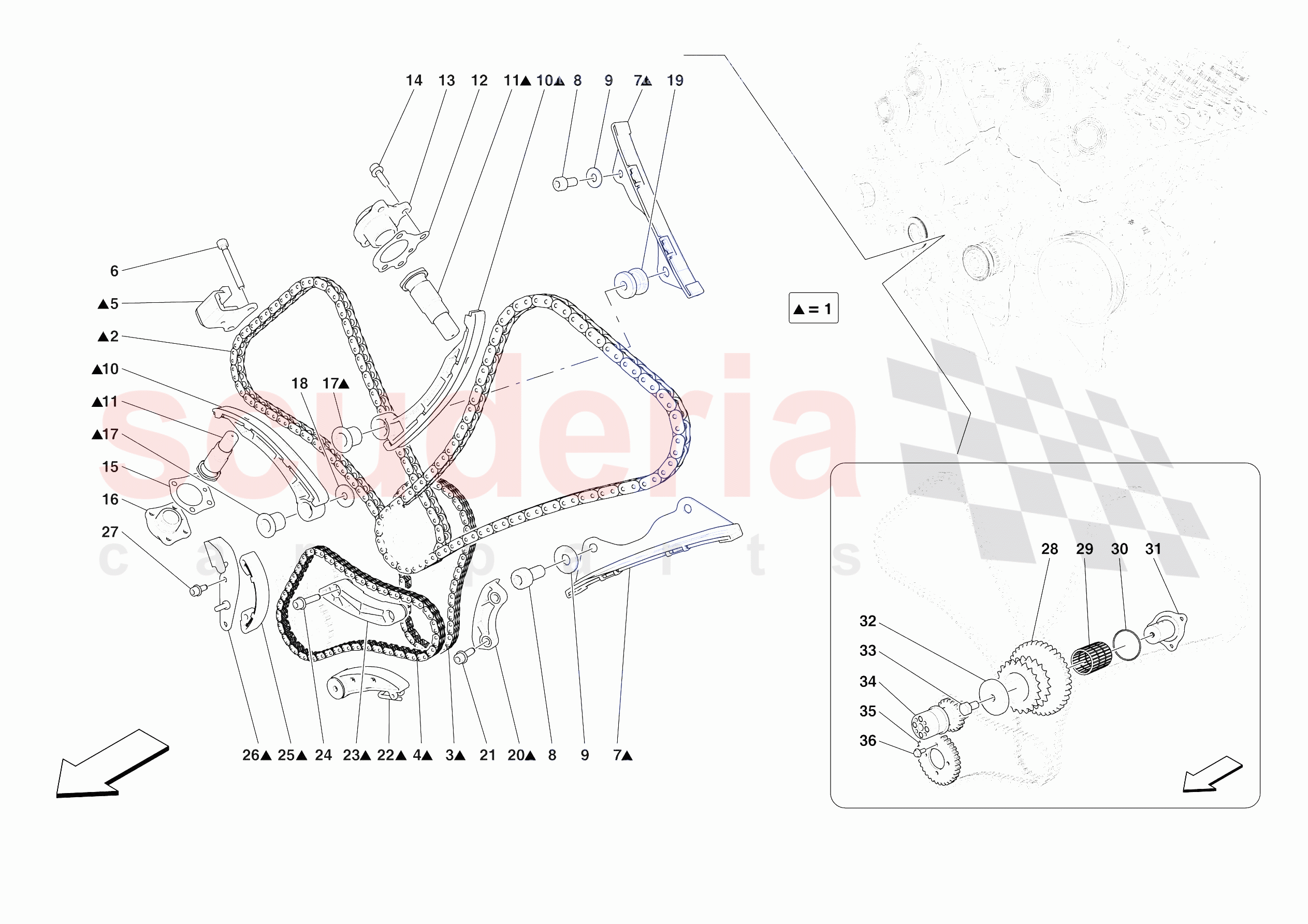

Ferrari Purosangue Europe RH - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	943605	COMPL. VALVE TIMING AND PUMP DRIVE SYSTEM	$1,896.44	To Order

Photo	Part No	Description	Price (each)	Stock
	254263	CHAIN	$117.74	To Order

Photo	Part No	Description	Price (each)	Stock
	312629	CHAIN	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	770471	CHAIN	$802.72	To Order

Photo	Part No	Description	Price (each)	Stock
	239566	COMPL. UPPER FIXED SHOE	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	198034	FIXED SHOE	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	14306224	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	260614	MOBILE SHOE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	856050	HYDRAULIC CHAIN TENSIONER	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	317022	GASKET	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985132	BUSH	$91.72	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	317023	GASKET	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	268314	BUSH	$51.74	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	175306	SHOULDER	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	183929	BUSH	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	309750	FIXED SHOE	$78.82	To Order

Photo	Part No	Description	Price (each)	Stock
	282395	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	904999	MOBILE SHOE	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	747316	FIXED SHOE	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	$100.33	To Order

Photo	Part No	Description	Price (each)	Stock
	265180	MOUNTING	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	299589	DRIVE GEAR	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	187742	ROLLER BEARING CAGE	$11.90	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	289896	MOUNTING	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	194262	SHOULDER	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	811668	GEAR WHEEL	$430.02	To Order

Photo	Part No	Description	Price (each)	Stock
	811659	GEAR WHEEL	$344.02	To Order

Photo	Part No	Description	Price (each)	Stock
	186668	SCREW	$15.48	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	943605	COMPL. VALVE TIMING AND PUMP DRIVE SYSTEM	943605 COMPL. VALVE TIMING AND PUMP DRIVE SYSTEM	$1,896.44	1
0002	254263	CHAIN	254263 CHAIN	$117.74	2
0003	312629	CHAIN	312629 CHAIN	$481.36	1
0004	770471	CHAIN	770471 CHAIN 4 X 3	$802.72	1
0005	239566	COMPL. UPPER FIXED SHOE	239566 COMPL. UPPER FIXED SHOE	$50.15	2
0006	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	$0.50	1
0007	198034	FIXED SHOE	198034 FIXED SHOE	$73.80	2
0008	14306224	SCREW	14306224 SCREW M8 X 16	$0.21 MSRP: ~~0.40~~ (47.5% off)	3
0009	163759	WASHER	163759 WASHER	$14.28	3
0010	260614	MOBILE SHOE	260614 MOBILE SHOE	$433.23	2
0011	856050	HYDRAULIC CHAIN TENSIONER	856050 HYDRAULIC CHAIN TENSIONER	$258.00	2
0012	317022	GASKET	317022 GASKET Also included in engine gasket set	$3.36	1
0013	985132	BUSH	985132 BUSH	$91.72	1
0014	231619	SCREW	231619 SCREW M6 X 18	$0.31	4
0015	317023	GASKET	317023 GASKET Also included in engine gasket set	$10.26	1
0016	268314	BUSH	268314 BUSH	$51.74	1
0017	175303	BUSH	175303 BUSH	$37.25	2
0018	175306	SHOULDER	175306 SHOULDER	$4.30	1
0019	183929	BUSH	183929 BUSH	$7.73	1
0020	309750	FIXED SHOE	309750 FIXED SHOE	$78.82	1
0021	282395	SCREW	282395 SCREW M6 X 20	$0.70	2
0022	904999	MOBILE SHOE	904999 MOBILE SHOE	$401.34	1
0023	747316	FIXED SHOE	747316 FIXED SHOE	$258.00	1
0024	282397	SCREW	282397 SCREW M6 X 25	$0.52	1
0025	257626	SHOE	257626 SHOE	$100.33	1
0026	265180	MOUNTING	265180 MOUNTING	$77.39	1
0027	282393	SCREW	282393 SCREW M6 X 14	$0.78	2
0028	299589	DRIVE GEAR	299589 DRIVE GEAR	$481.36	1
0029	187742	ROLLER BEARING CAGE	187742 ROLLER BEARING CAGE	$11.90	3
0030	154191	GASKET	154191 GASKET Also included in engine gasket set	$1.47 MSRP: ~~2.52~~ (41.7% off)	1
0031	289896	MOUNTING	289896 MOUNTING	$208.58	1
0032	194262	SHOULDER	194262 SHOULDER	$41.70	1
0033	16043124	SCREW	16043124 SCREW M8 X 14	$0.18	1
0034	811668	GEAR WHEEL	811668 GEAR WHEEL	$430.02	1
0035	811659	GEAR WHEEL	811659 GEAR WHEEL	$344.02	1
0036	186668	SCREW	186668 SCREW M5 X 12	$15.48	4
