Ferrari LaFerrari Aperta - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
315600 VALVE TIMING AND PUMP DRIVE SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
309750 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
265180 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
257626 SHOE Enquire To Order
Photo Part No Description Price (each) Stock
312629 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
260614 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
175303 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
198034 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
254263 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
239566 COMPL. UPPER FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
267099 HYDRAULIC CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
277283 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
265712 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
272014 SHOE Enquire To Order
Photo Part No Description Price (each) Stock
271880 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
299590 INNER CRANKSHAFT GEAR Enquire To Order
Photo Part No Description Price (each) Stock
301217 EXTERNAL CRANKSHAFT GEAR Enquire To Order
Photo Part No Description Price (each) Stock
299589 DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
288731 PUMP DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
282395 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
282393 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
289896 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
154191 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
187742 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
194262 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
175306 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
183929 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
86768100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
163759 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
268314 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
317023 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
252512 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
186668 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12649624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
282393 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
301584 VALVE TIMING GEAR SPROCKETS Enquire To Order
View All

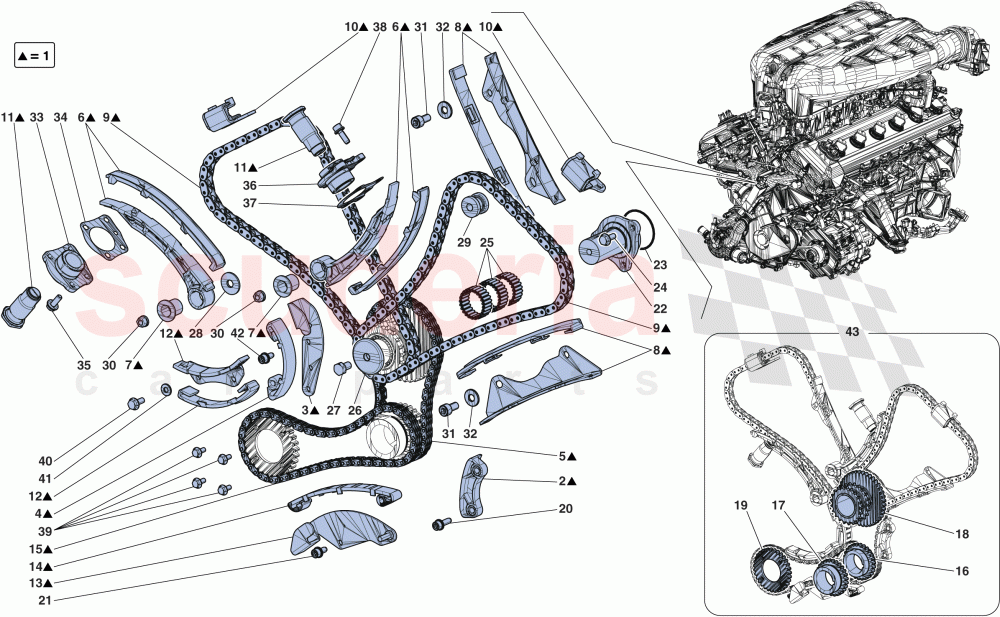

TIMING SYSTEM - DRIVE of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 315600
VALVE TIMING AND PUMP DRIVE SYSTEM 		- 1 Enquire
2 309750
FIXED SHOE 		- 1 Enquire
3 265180
MOUNTING 		- 1 Enquire
4 257626
SHOE 		- 1 Enquire
5 312629
CHAIN 		- 1 Enquire
6 260614
MOBILE SHOE 		- 2 Enquire
7 175303
BUSH 		- 2 Enquire
8 198034
FIXED SHOE 		- 2 Enquire
9 254263
CHAIN 		- 2 Enquire
10 239566
COMPL. UPPER FIXED SHOE 		- 2 Enquire
11 267099
HYDRAULIC CHAIN TENSIONER 		- 2 Enquire
12 277283
FIXED SHOE 		- 1 Enquire
13 265712
MOUNTING 		- 1 Enquire
14 272014
SHOE 		- 1 Enquire
15 271880
CHAIN 		- 1 Enquire
16 299590
INNER CRANKSHAFT GEAR 		- 1 Enquire
17 301217
EXTERNAL CRANKSHAFT GEAR 		- 1 Enquire
18 299589
DRIVE GEAR 		- 1 Enquire
19 288731
PUMP DRIVE GEAR 		- 1 Enquire
20 282395
SCREW 		- 2 Enquire
21 282393
SCREW 		- 2 Enquire
22 289896
MOUNTING 		- 1 Enquire
23 154191
GASKET 		- 1 Enquire
24 181336
SCREW 		- 3 Enquire
25 187742
ROLLER BEARING CAGE 		- 3 Enquire
26 194262
SHOULDER 		- 1 Enquire
27 16043124
SCREW M8 X 14 		- 1 Enquire
28 175306
SHOULDER 		- 1 Enquire
29 183929
BUSH 		- 1 Enquire
30 14040711
NUT M8 FLANGED 		- 2 Enquire
31 86768100
SCREW 		- 3 Enquire
32 163759
WASHER 		- 3 Enquire
33 268314
BUSH 		- 1 Enquire
34 317023
GASKET 		- 1 Enquire
35 181336
SCREW 		- 4 Enquire
36 252512
BUSH 		- 1 Enquire
38 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 4 Enquire
39 186668
SCREW 		- 4 Enquire
40 181336
SCREW 		- 2 Enquire
41 12649624
WASHER 		- 2 Enquire
42 282393
SCREW 		- 2 Enquire
43 301584
VALVE TIMING GEAR SPROCKETS
No longer supplied 		- 1 Enquire
