ELECTRIC MOTOR COOLING of Ferrari Ferrari LaFerrari Aperta

View All

Ferrari LaFerrari Aperta - ELECTRIC MOTOR COOLING

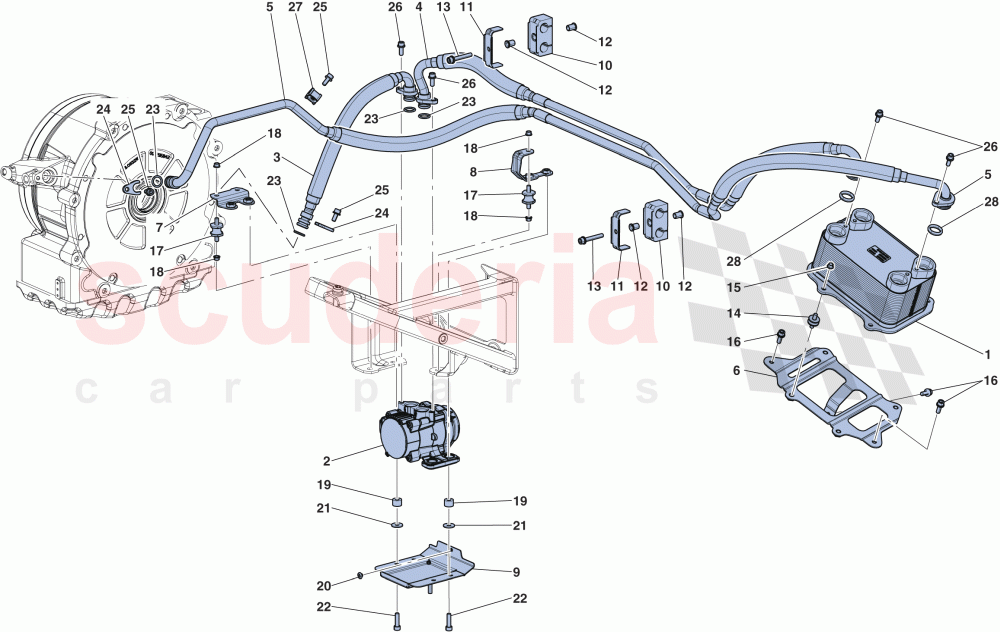

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	286140	OIL-WATER HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283006	OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299894	OIL PICKUP PIPE FROM ME1 TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299896	OIL DELIVERY PIPE FROM PUMP TO HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304337	OIL RETURN PIPE FROM HEAT EXCHANGER TO ME1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307940	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299463	REAR ME1 OIL PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301751	FRONT ME1 OIL PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299623	ME1 PUMP OIL COLLECTOR RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243396	RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243398	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243399	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284347	POWER STEERING PUMP DAMPER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299624	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286421	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293386	FORK FOR ME1 COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	286140	OIL-WATER HEAT EXCHANGER	286140 OIL-WATER HEAT EXCHANGER	-	1	Enquire
2	283006	OIL PUMP	283006 OIL PUMP	-	1	Enquire
3	299894	OIL PICKUP PIPE FROM ME1 TO PUMP	299894 OIL PICKUP PIPE FROM ME1 TO PUMP	-	1	Enquire
4	299896	OIL DELIVERY PIPE FROM PUMP TO HEAT EXCHANGER	299896 OIL DELIVERY PIPE FROM PUMP TO HEAT EXCHANGER	-	1	Enquire
5	304337	OIL RETURN PIPE FROM HEAT EXCHANGER TO ME1	304337 OIL RETURN PIPE FROM HEAT EXCHANGER TO ME1	-	1	Enquire
6	307940	BRACKET	307940 BRACKET	-	1	Enquire
7	299463	REAR ME1 OIL PUMP BRACKET	299463 REAR ME1 OIL PUMP BRACKET	-	1	Enquire
8	301751	FRONT ME1 OIL PUMP BRACKET	301751 FRONT ME1 OIL PUMP BRACKET	-	1	Enquire
9	299623	ME1 PUMP OIL COLLECTOR RESERVOIR	299623 ME1 PUMP OIL COLLECTOR RESERVOIR	-	1	Enquire
10	243396	RETAINER BLOCK	243396 RETAINER BLOCK	-	2	Enquire
11	243398	PLATE	243398 PLATE	-	2	Enquire
12	243399	BUSH	243399 BUSH	-	4	Enquire
13	231625	SCREW	231625 SCREW M6 X 40	-	2	Enquire
14	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	4	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
16	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	3	Enquire
17	284347	POWER STEERING PUMP DAMPER MOUNT	284347 POWER STEERING PUMP DAMPER MOUNT	-	3	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
19	299624	BUSHING	299624 BUSHING	-	4	Enquire
20	14622387	CAP	14622387 CAP	-	1	Enquire
21	860172	WASHER	860172 WASHER	-	4	Enquire
22	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
23	286421	O-RING	286421 O-RING	-	4	Enquire
24	293386	FORK FOR ME1 COOLING PIPE	293386 FORK FOR ME1 COOLING PIPE	-	2	Enquire
25	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
26	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	4	Enquire
27	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
28	122791	O-RING	122791 O-RING	-	2	Enquire
