Ferrari LaFerrari Aperta - RIGHT HAND CYLINDER HEAD

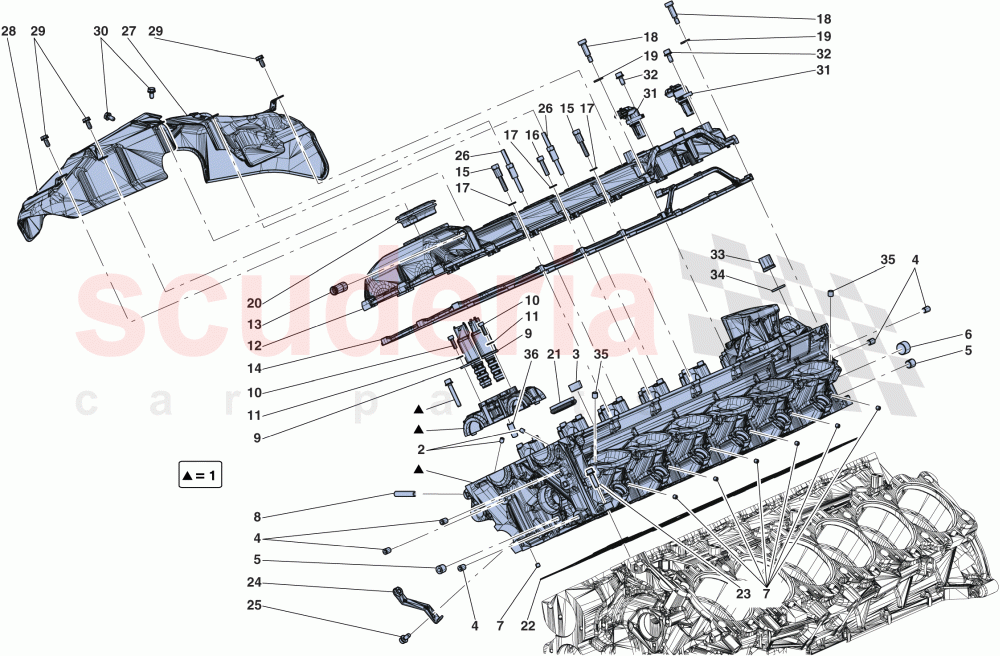

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	296081	RH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292565	RH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271521	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243800	RH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300510	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252099	SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297952	REAR RH HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293212	FRONT RH HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11628424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	296081	RH HEAD	296081 RH HEAD	-	1	Enquire
2	256827	GRUB SCREW	256827 GRUB SCREW	-	2	Enquire
3	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	12	Enquire
4	282755	THREADED PLUG	282755 THREADED PLUG	-	5	Enquire
5	282400	THREADED PLUG	282400 THREADED PLUG	-	2	Enquire
6	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	1	Enquire
7	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	-	7	Enquire
8	211641	STUD BOLT	211641 STUD BOLT	-	12	Enquire
9	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	-	2	Enquire
10	14304221	SCREW	14304221 SCREW M5 X 16	-	2	Enquire
11	11181574	WASHER	11181574 WASHER	-	2	Enquire
12	292565	RH CYLINDER HEAD COVER	292565 RH CYLINDER HEAD COVER	-	1	Enquire
13	271521	CONNECTOR	271521 CONNECTOR	-	1	Enquire
14	243800	RH HEAD COVER GASKET	243800 RH HEAD COVER GASKET	-	1	Enquire
15	300510	STUD BOLT	300510 STUD BOLT	-	2	Enquire
16	157218	SCREW	157218 SCREW M6 X 25	-	14	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	18	Enquire
18	293278	SCREW	293278 SCREW	-	2	Enquire
19	986899	WASHER	986899 WASHER	-	2	Enquire
20	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
21	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	6	Enquire
23	231620	SCREW	231620 SCREW M6 X 25	-	1	Enquire
24	252099	SHIELD MOUNTING BRACKET	252099 SHIELD MOUNTING BRACKET	-	1	Enquire
25	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
26	269228	STUD BOLT	269228 STUD BOLT M6 X 25	-	2	Enquire
27	297952	REAR RH HEAD HEAT SHIELD	297952 REAR RH HEAD HEAT SHIELD	-	1	Enquire
28	293212	FRONT RH HEAD HEAT SHIELD	293212 FRONT RH HEAD HEAT SHIELD	-	1	Enquire
29	11628424	SCREW	11628424 SCREW	-	3	Enquire
30	11625524	SCREW	11625524 SCREW	-	2	Enquire
31	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
32	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
33	321187	NUT	321187 NUT	-	14	Enquire
34	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	14	Enquire
35	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
36	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
