TIMING SYSTEM - TAPPETS AND SHAFTS of Ferrari Ferrari LaFerrari Aperta

View All

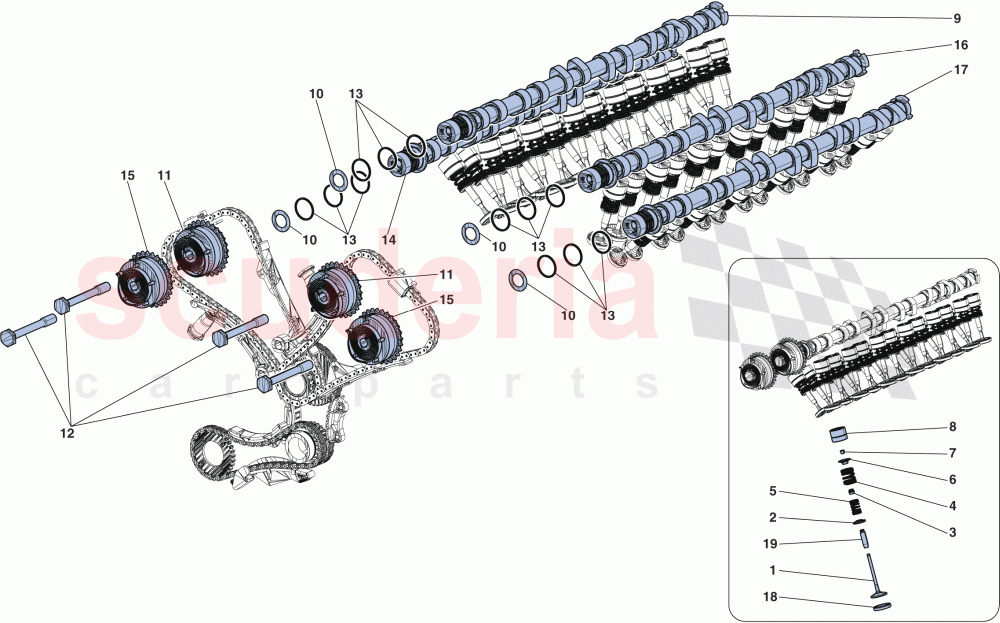

Ferrari LaFerrari Aperta - TIMING SYSTEM - TAPPETS AND SHAFTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238485	EXHAUST VALVE	Enquire	To Order
	198581	INTAKE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242574	LOWER STOP CAP	Enquire	To Order
	247484	LOWER STOP COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238640	EXTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238641	INTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237390	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255431	HYDRAULIC TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286638	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW HEX HEAD M14 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286639	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286640	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286641	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6222848	EXHAUST VALVE SEAT	Enquire	To Order
	6222847	INTAKE VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6213498	VALVE GUIDE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	238485	EXHAUST VALVE	238485 EXHAUST VALVE	-	24	Enquire
1	198581	INTAKE VALVE	198581 INTAKE VALVE	-	24	Enquire
2	242574	LOWER STOP CAP	242574 LOWER STOP CAP	-	24	Enquire
2	247484	LOWER STOP COLLAR	247484 LOWER STOP COLLAR	-	24	Enquire
3	221473	OIL SEAL	221473 OIL SEAL	-	48	Enquire
4	238640	EXTERNAL VALVE RETURN SPRING	238640 EXTERNAL VALVE RETURN SPRING	-	48	Enquire
5	238641	INTERNAL VALVE RETURN SPRING	238641 INTERNAL VALVE RETURN SPRING	-	48	Enquire
6	237390	UPPER STOP CAP	237390 UPPER STOP CAP	-	48	Enquire
7	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	96	Enquire
8	255431	HYDRAULIC TAPPET	255431 HYDRAULIC TAPPET	-	48	Enquire
9	286638	RH INTAKE CAMSHAFT	286638 RH INTAKE CAMSHAFT	-	1	Enquire
10	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	-	4	Enquire
11	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	-	2	Enquire
12	254892	SCREW HEX HEAD M14 X 15	254892 SCREW HEX HEAD M14 X 15	-	4	Enquire
13	197975	SEAL RING	197975 SEAL RING	-	12	Enquire
14	286639	RH EXHAUST CAMSHAFT	286639 RH EXHAUST CAMSHAFT	-	1	Enquire
15	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	-	2	Enquire
16	286640	LH INTAKE CAMSHAFT	286640 LH INTAKE CAMSHAFT	-	1	Enquire
17	286641	LH EXHAUST CAMSHAFT	286641 LH EXHAUST CAMSHAFT	-	1	Enquire
18	6222848	EXHAUST VALVE SEAT	6222848 EXHAUST VALVE SEAT	-	24	Enquire
18	6222847	INTAKE VALVE SEAT	6222847 INTAKE VALVE SEAT	-	24	Enquire
19	6213498	VALVE GUIDE	6213498 VALVE GUIDE	-	48	Enquire
