WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari LaFerrari

View All

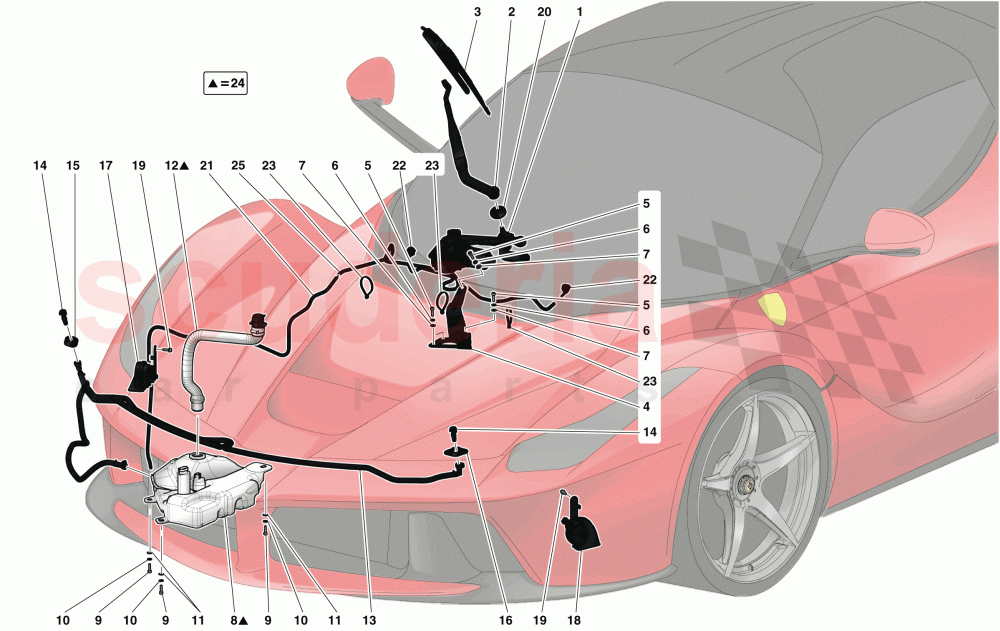

Ferrari LaFerrari - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89094600	WINDSCREEN WIPER MOTOR	Enquire	To Order
	86026600	WINDSCREEN WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86026500	WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84559700	WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85450500	WINDSCREEN WIPER ASSEMBLY MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85847100	HEADLIGHT WASHER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85941100	HEADLAMP WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85826300	RH HEADLAMP WASHER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85826200	LH HEADLAMP WASHER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256356	RH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256357	LH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84903900	WINDSCREEN WIPER SPINDLE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86211900	WINDSCREEN WASHER PIPE FROM TANK TO CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86212000	WINDSCREEN WASHER PIPE FROM TANK TO SPRAY NOZZLES	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	89094600	WINDSCREEN WIPER MOTOR	89094600 WINDSCREEN WIPER MOTOR Applicable for J	-	1	Enquire
1	86026600	WINDSCREEN WIPER MOTOR	86026600 WINDSCREEN WIPER MOTOR Not for J	-	1	Enquire
2	86026500	WINDSCREEN WIPER ARM	86026500 WINDSCREEN WIPER ARM	-	1	Enquire
3	84559700	WINDSCREEN WIPER BLADE	84559700 WINDSCREEN WIPER BLADE	-	1	Enquire
4	85450500	WINDSCREEN WIPER ASSEMBLY MOUNTING BRACKET	85450500 WINDSCREEN WIPER ASSEMBLY MOUNTING BRACKET	-	1	Enquire
5	14305334	SCREW	14305334 SCREW	-	4	Enquire
6	10519524	WASHER	10519524 WASHER	-	4	Enquire
7	860172	WASHER	860172 WASHER	-	4	Enquire
7	13577724	WASHER	13577724 WASHER No longer supplied; Replaced by 10523424	-	4	Enquire
8	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	85547800 WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY Order assembly Ref. 24; No longer supplied; Replaced by 85547800	-	1	Enquire
9	14305334	SCREW	14305334 SCREW	-	3	Enquire
10	10519524	WASHER	10519524 WASHER	-	3	Enquire
11	13577724	WASHER	13577724 WASHER	-	3	Enquire
12	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	85547800 WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY Order assembly Ref. 24; No longer supplied; Replaced by 85547800	-	1	Enquire
13	85847100	HEADLIGHT WASHER PIPE ASSEMBLY	85847100 HEADLIGHT WASHER PIPE ASSEMBLY	-	1	Enquire
14	85941100	HEADLAMP WASHER	85941100 HEADLAMP WASHER	-	2	Enquire
15	85826300	RH HEADLAMP WASHER MOUNTING BRACKET	85826300 RH HEADLAMP WASHER MOUNTING BRACKET	-	1	Enquire
16	85826200	LH HEADLAMP WASHER MOUNTING BRACKET	85826200 LH HEADLAMP WASHER MOUNTING BRACKET	-	1	Enquire
17	256356	RH HORN	256356 RH HORN	-	1	Enquire
18	256357	LH HORN	256357 LH HORN	-	1	Enquire
19	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	2	Enquire
20	84903900	WINDSCREEN WIPER SPINDLE SEAL	84903900 WINDSCREEN WIPER SPINDLE SEAL	-	1	Enquire
21	86211900	WINDSCREEN WASHER PIPE FROM TANK TO CONNECTOR	86211900 WINDSCREEN WASHER PIPE FROM TANK TO CONNECTOR	-	1	Enquire
22	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
23	206739	CLAMP	206739 CLAMP	-	4	Enquire
24	85547800	WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	85547800 WINDSCREEN /HEADLIGHT WASHER RESERVOIR ASSEMBLY	-	1	Enquire
25	86212000	WINDSCREEN WASHER PIPE FROM TANK TO SPRAY NOZZLES	86212000 WINDSCREEN WASHER PIPE FROM TANK TO SPRAY NOZZLES	-	1	Enquire
